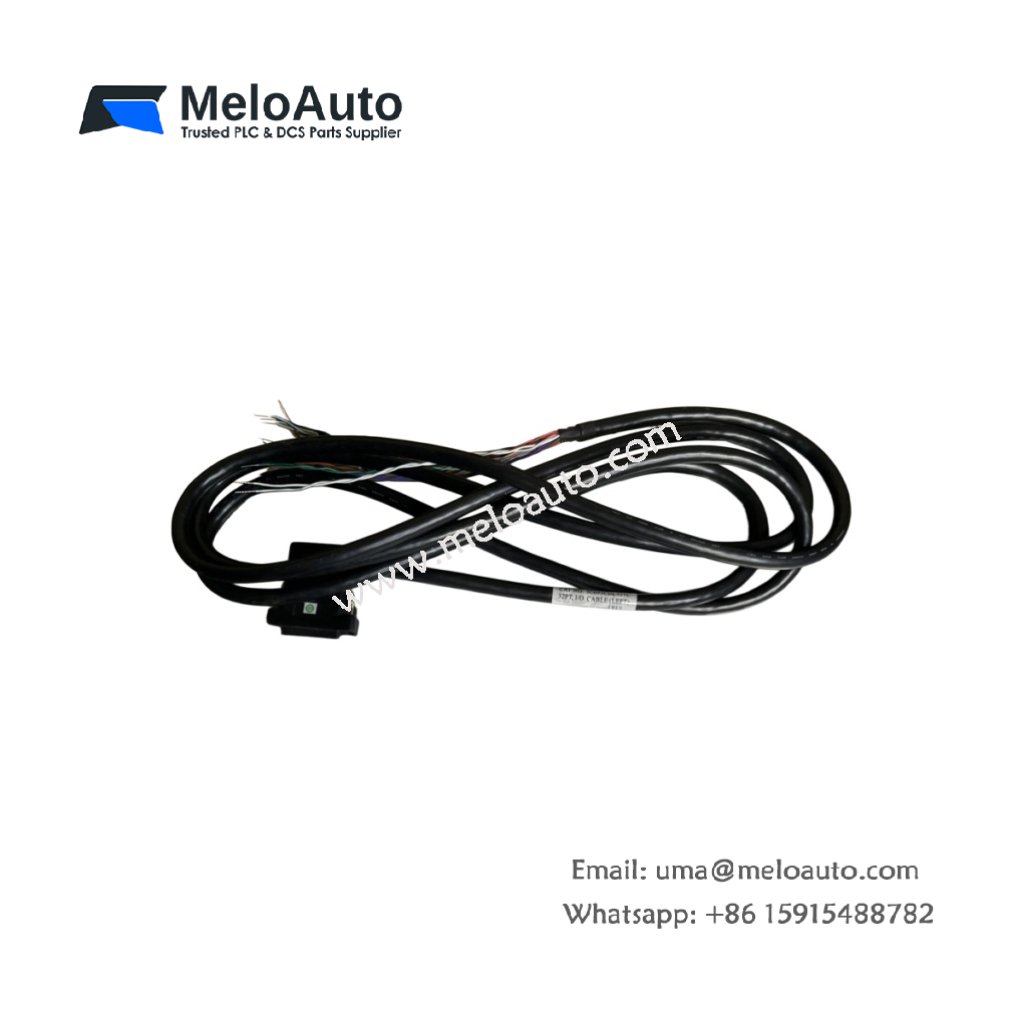

GE IC693CBL327 High Density I/O Cable

This high density I/O cable connects Series 90-30 PLC modules to external terminal blocks. It simplifies wiring between the controller and field devices. You will use this cable for high channel count applications.

Key Technical Specifications

The IC693CBL327 features a standard length of 2.0 meters between connectors. Its 28 AWG stranded conductors handle low voltage signals reliably. The cable also includes overall foil shielding for noise rejection.

Parameter	Technical Data
Product Type	High Density I/O Cable Assembly
Cable Length	2.0 meters (78.74 inches)
Connector Type 1	1 x 50-pin female (high density)
Connector Type 2	1 x 50-pin female (high density)
Conductor Gauge	28 AWG stranded copper
Number of Conductors	50 individual wires
Current Rating	1A per conductor maximum
Voltage Rating	30V AC/DC
Shielding Type	Aluminum foil with drain wire
Outer Diameter	12.0 mm (0.47 inches)
Total Weight	0.35 kg (0.77 lbs)
Jacket Material	PVC, gray color
Connector Shell	Metal D-sub backshell
Temperature Range	0°C to 60°C
Jacket Flammability	UL 2464 (VW-1)

Hardware Architecture and Construction

The IC693CBL327 uses fifty 28 AWG stranded copper wires inside its jacket. Stranded construction provides flexibility for routing through cable ducts. An aluminum foil shield wraps around all fifty conductors for noise protection. Each connector features a metal D-sub backshell with strain relief.

Interface and Connectivity

Both ends terminate in 50-pin high density female D-sub connectors. Each connector includes jackscrews for secure attachment to mating ports. The keyed connector body prevents reverse insertion into the module. Simply connect one end to the Series 90-30 high density module.

Practical Installation Notes

Route this cable away from high voltage AC lines for best signal integrity. The IC693CBL327 supports daisy-chaining when using external terminal blocks. Do not exceed the 1A current rating on any single conductor. Secure the cable using nylon zip ties at 30 cm intervals.
