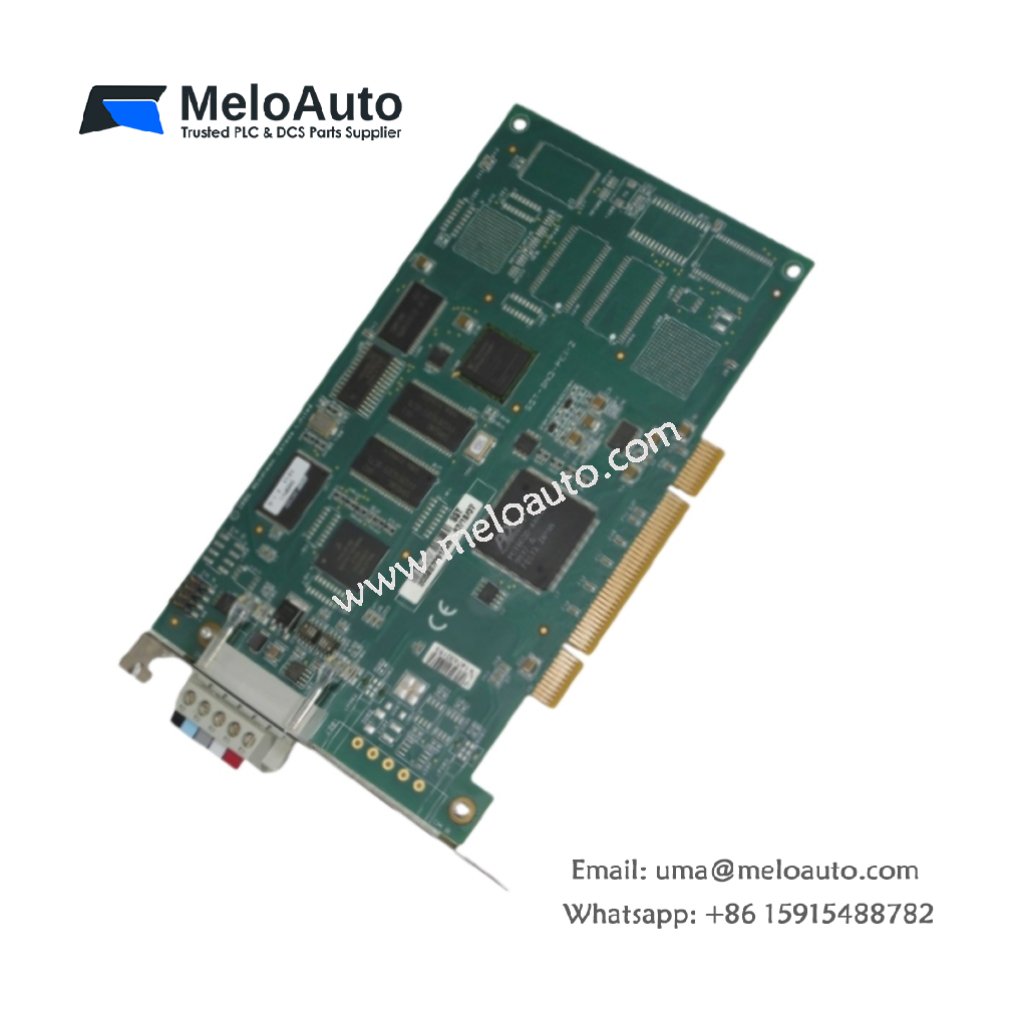

Woodward SST-DN3-PCI-2 DeviceNet Interface Card

Overview

The Woodward SST-DN3-PCI-2 is a PCI interface card designed for communication with DeviceNet and other CAN-based networks. It is an essential component for industrial automation systems, enabling seamless data transmission and integration with various devices over a CAN bus. This interface card offers high performance, reliability, and compatibility with multiple CAN protocols, including CAN specification 2.0 part A and part B.

Key Features

Manufacturer: Woodward
Model Number: SST-DN3-PCI-2
Product Type: DeviceNet Interface Card
Bus Type: 32-bit PCI (Fully compliant with PCI v2.3)
Processor: 33 MHz ColdFire Processor
RAM: 256 KB of shared RAM
Connector Type: 5-pin CAN connector (DeviceNet-compliant)
Data Rates:
- CAN: Up to 1 Mbaud
- DeviceNet: 125K, 250K, and 500K baud rates
LED Indicators: Bi-color LEDs for status indication
Isolation: Isolated CAN physical layer on each channel
Compatibility: Compatible with CAN specification 2.0 part A and part B

Technical Specifications

Specification	Details
Part Number	SST-DN3-PCI-2
Manufacturer	Woodward
Bus Interface	32-bit PCI, compliant with PCI v2.3
Processor Speed	33 MHz ColdFire Processor
RAM	256 KB shared RAM
CAN Connector	5-pin CAN (DeviceNet-compliant)
Data Rate (CAN)	Up to 1 Mbaud
Data Rate (DeviceNet)	125K, 250K, 500K baud rates
LED Indicators	Bi-color LEDs for status display
Isolation	Isolated CAN physical layer on each channel
Compatibility	CAN specification 2.0 part A and part B

Description

The Woodward SST-DN3-PCI-2 interface card integrates industrial devices into DeviceNet and other CAN-based networks with ease. It supports DeviceNet, which is a widely used industrial network protocol, and ensures reliable data transmission at various baud rates of 125K, 250K, and 500K for DeviceNet, and up to 1 Mbaud for standard CAN communication.

With a 33 MHz ColdFire Processor and 256 KB shared RAM, the SST-DN3-PCI-2 provides high-speed data processing and smooth operation for industrial systems. The 5-pin CAN connector is fully compliant with DeviceNet, and the card includes bi-color LEDs to provide real-time status feedback.

In addition, the SST-DN3-PCI-2 is designed with isolated CAN physical layers on each channel, ensuring secure data transmission in electrically noisy environments. This card is fully compatible with CAN specification 2.0 part A and part B, making it versatile for various applications requiring robust communication protocols.

Applications

Industrial Automation: Ideal for systems that need communication between multiple devices and controllers.
Control Systems: Used in distributed control systems (DCS) and programmable logic controller (PLC) setups.
Data Acquisition Systems: Helps collect and transmit data from various sensors and actuators in industrial environments.
