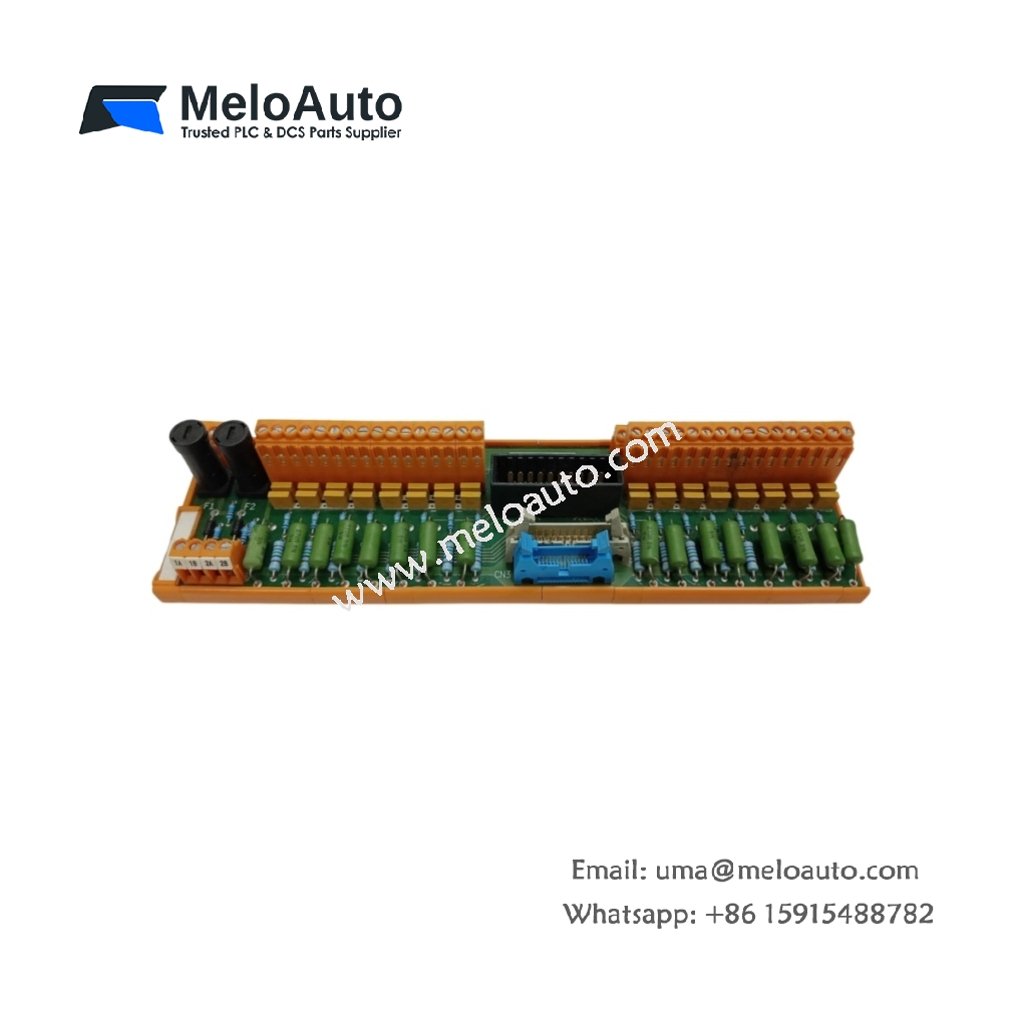

Honeywell FC-TSHART-1620M | 16-Channel HART Analog Input

Product Overview

The Honeywell FC-TSHART-1620M functions as a 16-channel HART-enabled Field Termination Assembly for the Safety Manager system. This module interfaces directly with HART smart transmitters and sensors, converting 4-20 mA analog signals for the SAI-1620M high-density input module . Moreover, the FC-TSHART-1620M enables simultaneous analog measurement and digital HART communication over the same two wires.

Technical Specifications

The FC-TSHART-1620M organizes its 16 input channels into two groups of eight, each sharing a common 0V reference . This module provides a 250Ω input resistance with ±1% tolerance and accepts a 0-25 mA DC input range, with 4-20 mA as the typical operating signal . For output, the unit delivers 0-4 V DC to the SAI-1620m module with 0.10% accuracy . Furthermore, the module’s linear conversion ensures precise signal integrity for safety-critical applications.

Parameter	Specification
Manufacturer	Honeywell
Product Type	Field Termination Assembly (FTA)
Input Channels	16 (2 groups of 8 with common 0V)
Input Signal	0-25 mA DC (4-20 mA typical)
Input Resistance	250 Ω (±1%)
Output to SAI-1620m	0-4 V DC, 0.10% accuracy
HART Support	Full HART communication for smart devices
External Power	30 V DC, 3 mA quiescent current
Isolation Voltage	2500V (field to system)
Hazardous Location	Class I, Division 2 compliant
Operating Temperature	-20°C to +60°C
Dimensions (L×W×H)	250 × 70 × 60 mm
Weight	0.36 kg
Origin	USA
Certifications	CE, TUV, UL, CSA, FM

Key Design Features

The FC-TSHART-1620M integrates a HART interface that connects seamlessly to MTL or Pepperl+Fuchs multiplexer units . This feature enables remote configuration and device status monitoring for intelligent field instruments. Additionally, the module provides voltage-current limited power compliant with Class I Division 2 standards, making it suitable for hazardous area installations . The unit also monitors external 30V DC power supply status and transfers signals via SICC-0001/Lx cables to redundant SAI-1620m modules for enhanced availability.

Application and Integration

The FC-TSHART-1620M integrates with Honeywell Safety Manager and Experion PKS systems in safety-critical process applications . System engineers commonly deploy this module in oil and gas, chemical processing, and power generation facilities requiring SIL-rated analog input processing . Consequently, it serves as a vital interface for pressure, temperature, and flow transmitters in emergency shutdown and fire & gas detection systems.
