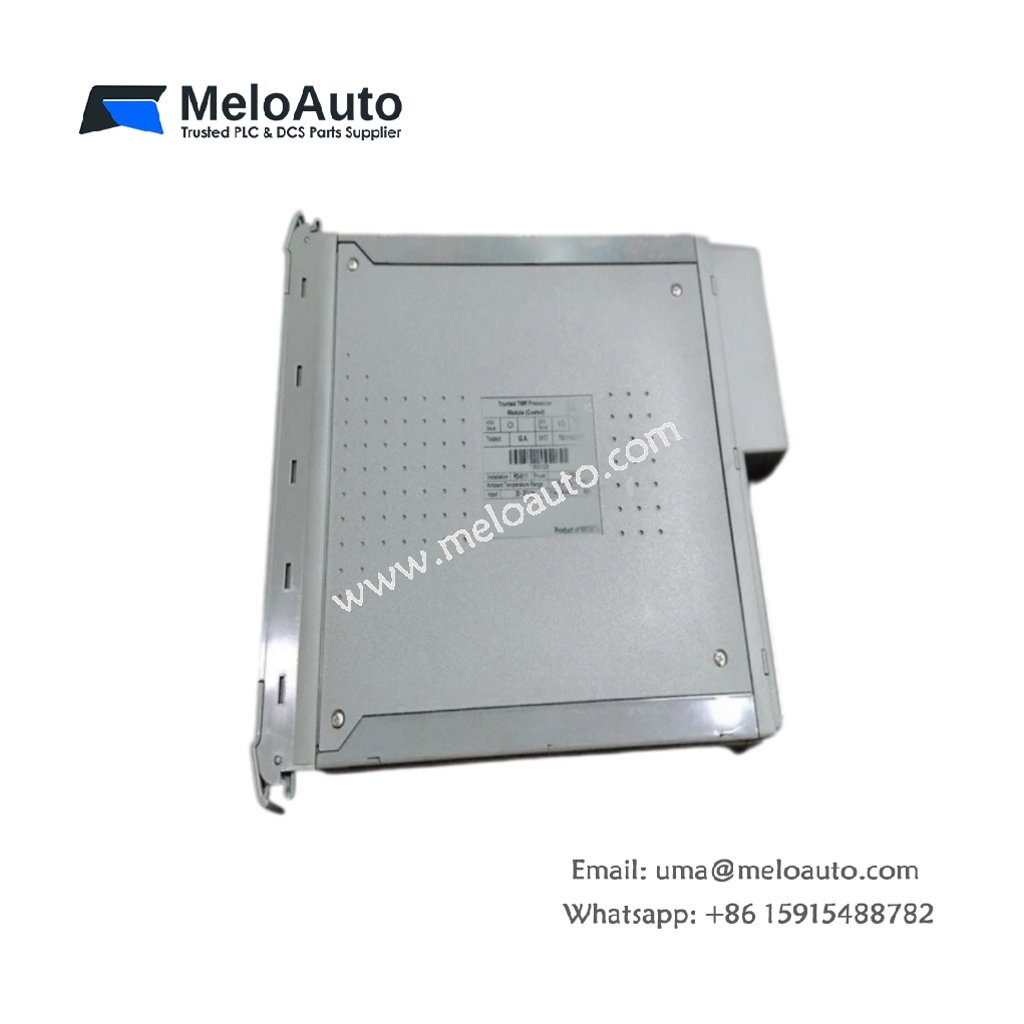

ICS Triplex T8111 | Trusted TMR Processor Specs

Core Technical Specifications

The T8111 belongs to the ICS Triplex Trusted TMR family and functions as a triple modular redundant processor module. It executes safety-critical control logic for SIL 3 rated protection and shutdown systems. Therefore, plant operators depend on this processor for continuous, fault-tolerant operation in demanding industrial environments.

Full Parameter Table

Parameter	Specification
Model	T8111
Series	Trusted TMR
Function	Main Processor Module
Architecture	Triple Modular Redundant (TMR)
Safety Integrity Level	SIL 3 certified
Processor Channels	Three independent channels
Voting Method	2-out-of-3 hardware voting
Module Slots	3 slots in Trusted chassis
Hot Swap	Supported
Power Supply	Derived from Trusted chassis backplane
Operating Temperature	0°C to +60°C
Storage Temperature	-25°C to +70°C
Humidity	5% to 95% non-condensing
Weight	Approximately 1.2 kg
Dimensions	Standard Trusted triple-slot form factor

Physical Design and Interface Features

The T8111 occupies three slots inside a Trusted controller chassis. Its front panel carries status LEDs that indicate channel health, fault conditions, and synchronization state. Furthermore, the module supports hot swap replacement, so technicians can service it without stopping the process. Meanwhile, three independent channels run identical logic and vote on every output.

System Integration Notes

This processor works together with Trusted TMR I/O modules and expander interfaces. Consequently, it forms the computational core of a distributed safety system. Engineers configure the module through the Trusted engineering toolset. However, users must follow vendor guidelines for chassis addressing and firmware compatibility.
