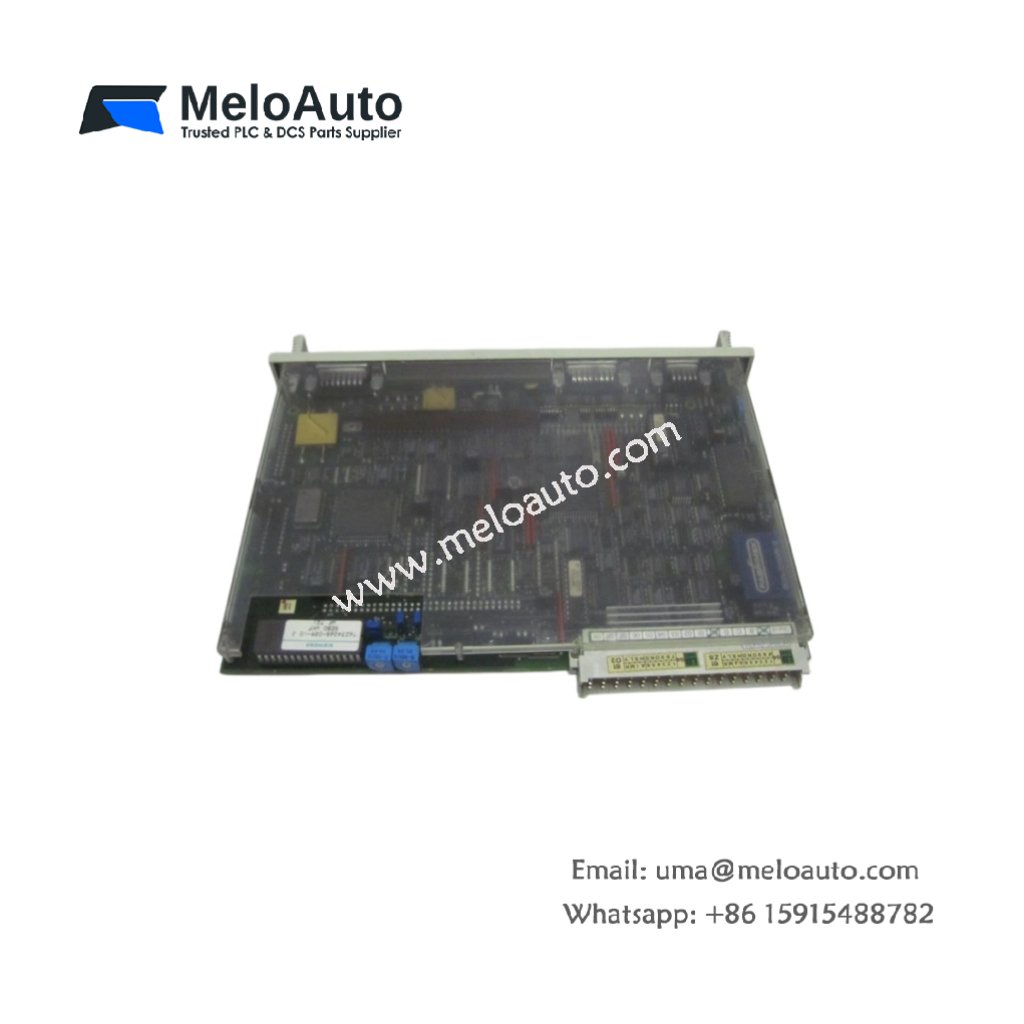

Siemens 6FM1720-3AA10 Stand-Alone Single-Axis Control Unit

Precision Motion Control for Stepper and Servo Motors

The Siemens 6FM1720-3AA10 stand‑alone single‑axis control unit provides precise motion control for stepper and servo motors. This unit operates independently, making it ideal for modular machine designs. Packaging, handling, and simple positioning systems benefit from this dedicated control solution.

Technical Specifications and Control Features

This control unit executes point‑to‑point positioning and velocity control with high accuracy. The unit supports incremental encoders for position feedback and velocity monitoring. A built‑in memory stores positioning profiles and motion parameters. Furthermore, the unit handles acceleration and deceleration ramps automatically for smooth motion.

Motion Control Capabilities

The Siemens 6FM1720-3AA10 executes precise positioning tasks with programmable acceleration and deceleration profiles. Users can store frequently used motion sequences for quick recall. The unit supports both absolute and relative positioning commands. Additionally, the control unit provides velocity control for constant‑speed applications.

Physical Design and Installation

This control unit features a compact design suitable for control cabinet installation. The unit weighs approximately 3.72 kg, requiring secure mounting . A front connector provides access to motor, encoder, and I/O terminals. The unit is manufactured in Germany and supports panel or DIN‑rail mounting .

Interface and Connectivity

The Siemens 6FM1720-3AA10 provides digital I/O for integrating with higher‑level controllers. An encoder input accepts incremental feedback signals for position verification. Users can connect the unit to a host PLC or computer via standard interfaces. Furthermore, the unit includes inputs for limit switches and reference point sensors.

Diagnostics and Status Indication

Front‑panel LEDs indicate power, axis status, and error conditions. The unit stores diagnostic information about positioning errors and limit switch events. A built‑in self‑test routine verifies hardware integrity during startup. Consequently, this unit simplifies troubleshooting and reduces downtime in motion control applications.

Application Guidelines and Compatibility

This stand‑alone control unit is suitable for single‑axis applications, including pick‑and‑place and conveyor positioning. For multi‑axis applications, you may need to combine multiple units. The product has reached end‑of‑life (PM500), meaning Siemens no longer supports it . Always verify the product availability and support status before ordering. The unit operates reliably in standard industrial environments from 0°C to 55°C.
