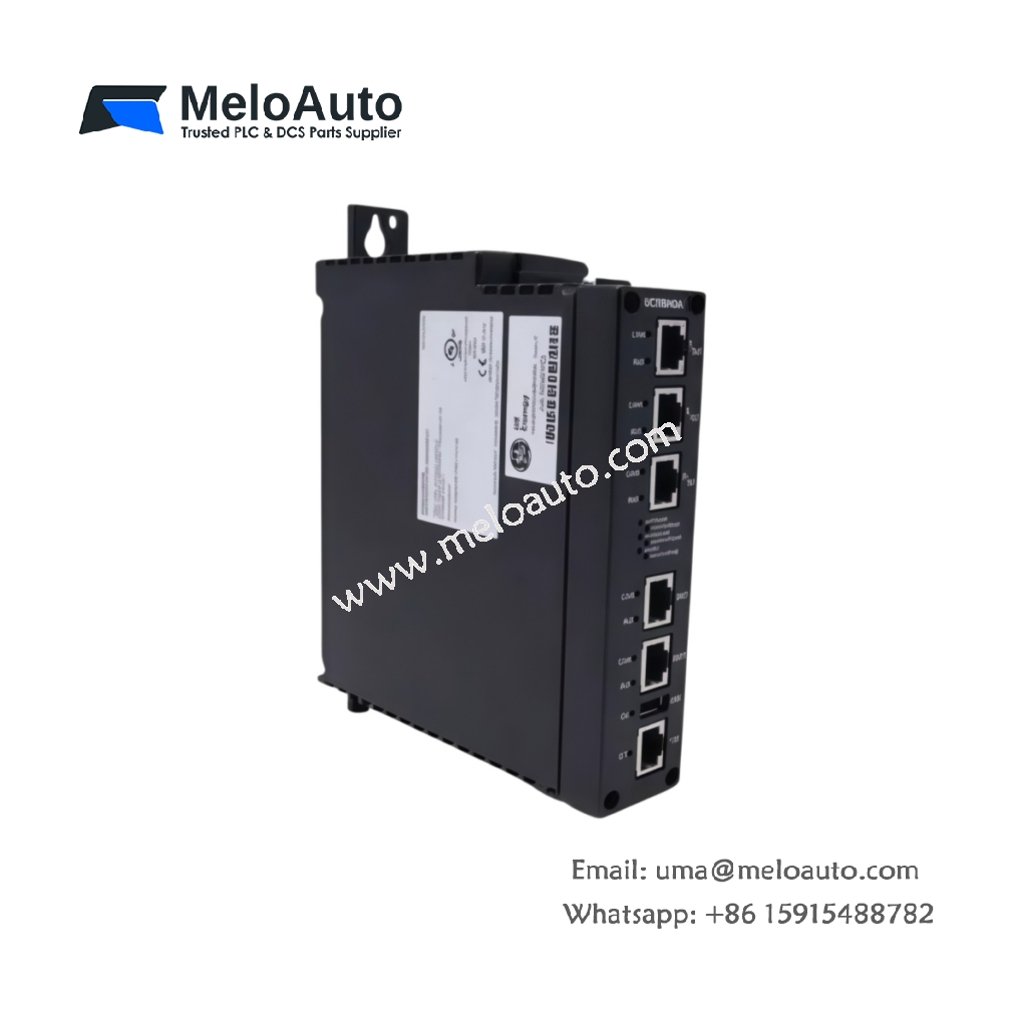

GE IS420UCSBH3A Mark VIe Controller Module

Product Overview

The GE IS420UCSBH3A operates as a high-performance controller module for the Mark VIe distributed control system. This unit executes complex turbine logic with exceptional speed and determinism. Its compact form factor houses substantial processing capability for demanding automation tasks. We designed this module for critical power generation and industrial process applications.

Processing Architecture and Performance

This controller module features a powerful processor optimized for real-time execution. The GE IS420UCSBH3A runs the QNX Neutrino operating system for reliable multitasking performance. Its integrated memory subsystem handles large application programs without performance degradation. The module includes built-in I/O scanning capabilities for rapid data acquisition. Furthermore, embedded diagnostics continuously monitor hardware health and system integrity.

Technical Specifications

Parameter	Specification
Processor	600 MHz Intel EP80579
Operating System	QNX Neutrino 6.5
Program Memory	256 MB DDR2 SDRAM
Non-Volatile Storage	1 GB CompactFlash
User Flash Memory	512 MB
Ethernet Ports	5 total (4 x IONet, 1 x management)
IONet Protocol	100 Mbps full-duplex
Serial Ports	1 x RS-232 console (RJ-45)
USB Ports	2 x USB 2.0 host
I/O Expansion	Supports up to 64 I/O packs
Scan Rate	10 ms minimum
Clock Accuracy	±5 ppm with battery backup
RTC Battery	3.6 V lithium, 5 years typical life
LED Indicators	Power, status, Ethernet activity
Power Supply	24 V DC nominal (18–32 V DC range)
Power Consumption	26.7 W peak, 15.6 W typical
Weight	1.2 kg (approximately 2.65 lbs)
Dimensions (W x H x D)	63.5 mm x 273 mm x 193 mm
Mounting Bracket	1.5 mm stainless steel
Operating Temperature	-30°C to +65°C
Storage Temperature	-40°C to +85°C
Humidity	5% to 95% non-condensing
Protection Class	IP20 (installed in enclosure)

Key Functional Benefits

The GE IS420UCSBH3A provides a complete control solution within a single module. Its fanless design eliminates failure-prone moving parts for enhanced reliability. Furthermore, the controller requires no battery for program retention, simplifying maintenance. The module supports online configuration changes without interrupting process execution. Consequently, engineers can tune parameters while the turbine continues normal operation.

Installation and System Connectivity

You must mount the GE IS420UCSBH3A on a DIN rail within a protected enclosure. The controller interfaces with I/O packs through the dedicated IONet network. Proper grounding and cable routing ensure optimal communication integrity. Additionally, you can access the module via the management port for configuration and troubleshooting. This controller integrates natively with GE’s Mark VIe and associated HMI platforms.

Environmental Durability and Compliance

The GE IS420UCSBH3A meets rigorous standards for industrial control equipment. Its conformal-coated PCB withstands humidity and airborne contaminants. The module survives vibration up to 2 g across 10–500 Hz. Moreover, its MTBF exceeds 200,000 hours under normal operating conditions. This robust construction ensures long-term dependable service in power generation environments.
