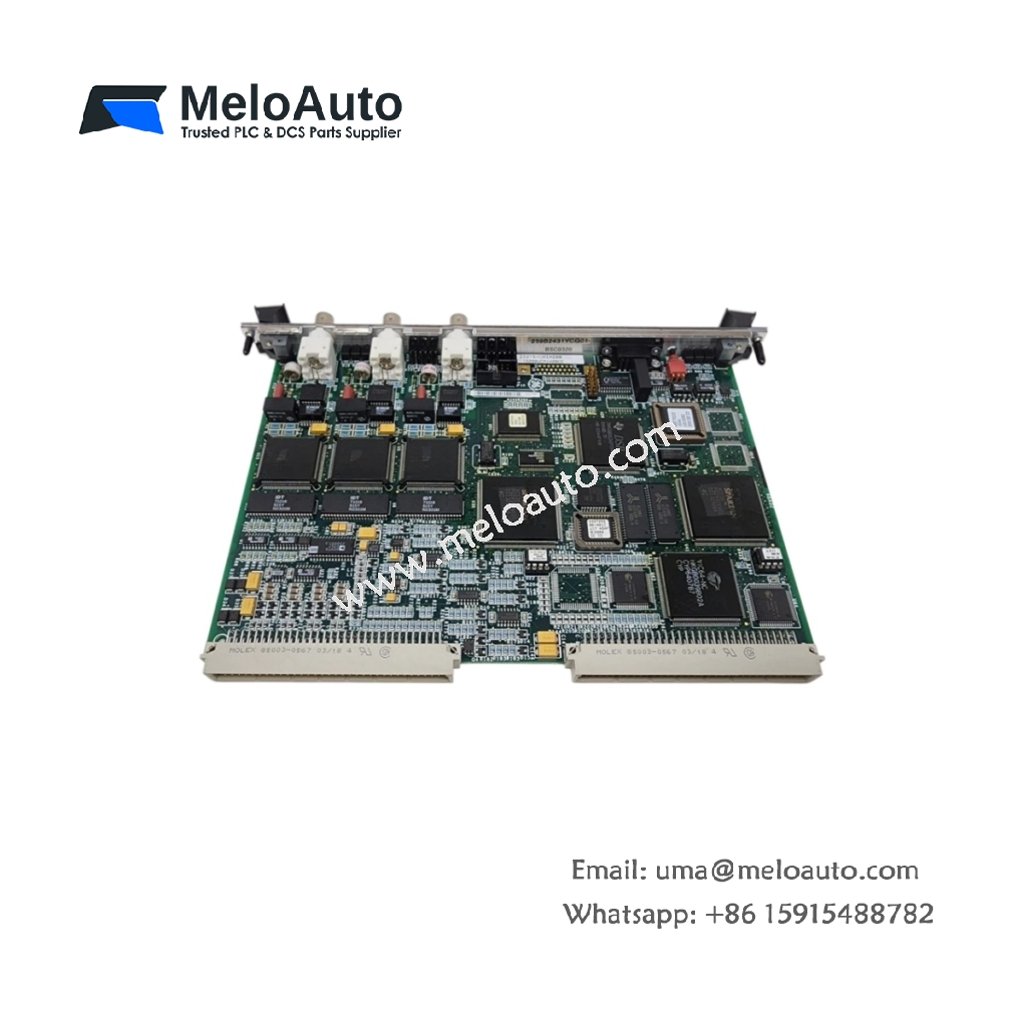

GE IS200VCMIH2B VME Communications Board

Product Overview

The GE IS200VCMIH2B serves as a high-speed VME communications interface for turbine control architectures. This board manages data flow between the main processor and distributed I/O subsystems. Its advanced design prioritizes deterministic data delivery for time-critical control applications. We engineered this module for seamless integration into GE’s Speedtronic Mark VIe platform.

Communication Architecture and Protocols

This interface board employs multiple communication paths for redundant data transmission. The GE IS200VCMIH2B supports both IONet and Ethernet protocols for flexible network topologies. Its dual-port memory architecture enables simultaneous read and write operations. The module handles extensive data throughput without introducing latency into control loops. Furthermore, built-in diagnostic features continuously monitor link integrity and error rates.

Technical Specifications

Parameter	Specification
Form Factor	VMEbus 6U single-slot module
Processor	32-bit RISC at 200 MHz
Communication Protocols	IONet, Ethernet, serial (RS-232)
Ethernet Ports	2 x 10/100Base-TX with auto-negotiation
IONet Ports	2 x fiber optic (ST connector)
Data Throughput	Up to 100 Mbps
Latency	< 1 ms typical under full load
Memory	32 MB SDRAM, 8 MB Flash
VME Interface	A32/A24, D32/D16/D08(EO)
Interrupts	7-level programmable
Diagnostic LEDs	Power, status, link activity, error
Power Supply	5 V DC and ±12 V DC from VME backplane
Power Consumption	25 W maximum
Battery Backup	3 V lithium cell for real-time clock
Battery Life	10 years typical
Connectors	2 x RJ-45, 2 x ST fiber, 1 x DB-9
Weight	0.85 kg (approximately 1.87 lbs)
Dimensions (W x H x D)	40 mm x 233 mm x 160 mm
Operating Temperature	-25°C to +65°C
Storage Temperature	-40°C to +85°C
Humidity	5% to 95% non-condensing

Key Functional Benefits

The GE IS200VCMIH2B ensures reliable communication for critical turbine protection systems. Its redundant network ports provide automatic failover in case of link loss. Consequently, operators maintain continuous visibility into plant operations. The board includes comprehensive event logging for post-incident analysis. Moreover, field-upgradable firmware allows you to implement new features without hardware changes.

Installation and System Integration

You must install the GE IS200VCMIH2B into an available VME chassis slot. Proper fiber optic cable handling prevents signal degradation across long distances. The module automatically negotiates network speeds with connected switches. Furthermore, you can configure IP addresses and protocol parameters using GE’s CIMPLICITY software. This board works exclusively within GE’s Mark VIe and associated platforms.

Power Management and Data Preservation

The GE IS200VCMIH2B incorporates battery-backed real-time clock functionality. This feature maintains time-stamping accuracy during power interruptions. The onboard lithium cell retains settings for up to a decade. Additionally, the module’s flash memory preserves configuration data without external power. This non-volatile storage ensures quick recovery after system restarts.
