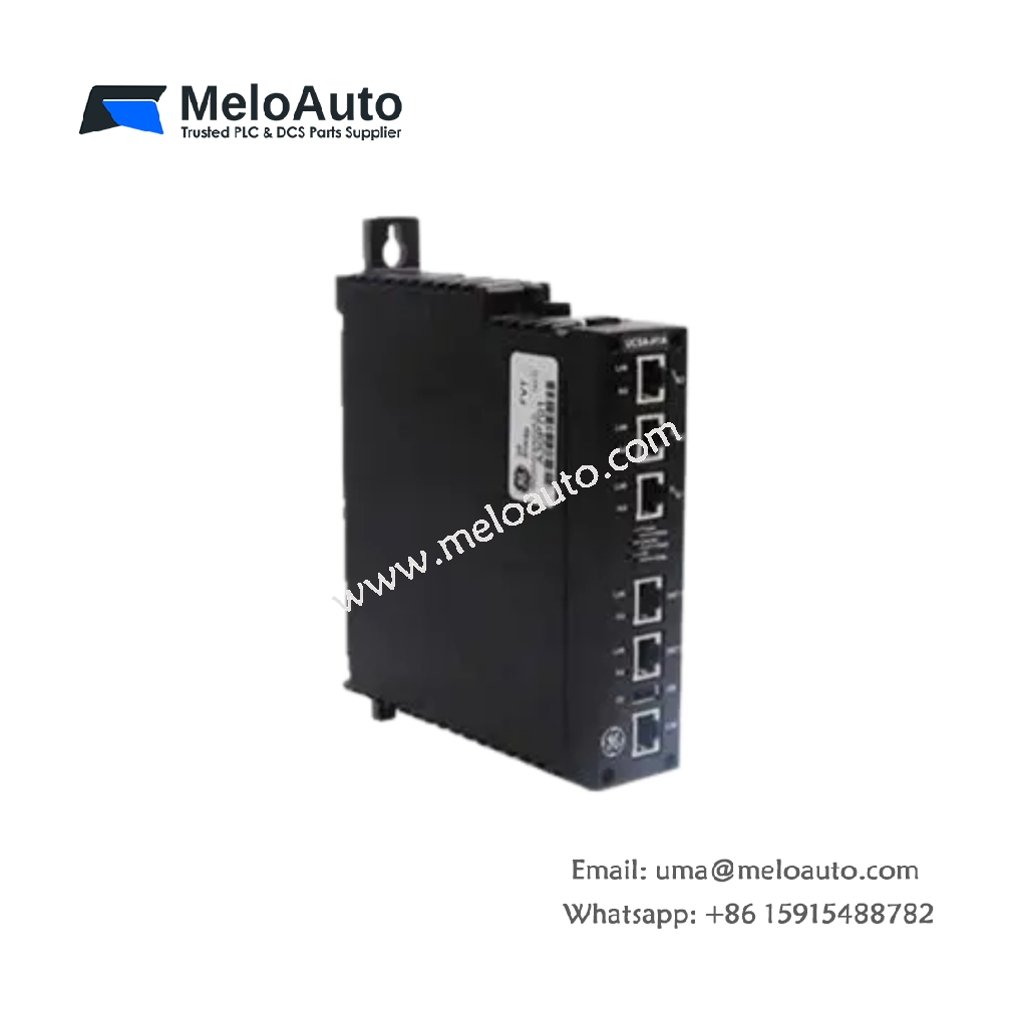

GE IS420UCSBH4A Mark VIe Controller Module

Product Overview

The GE IS420UCSBH4A functions as an advanced UCSB controller module within the Mark VIe distributed control platform. This unit executes complex turbine sequencing and protection logic with exceptional precision. Its high-performance architecture handles intensive computational workloads efficiently. We built this controller for continuous operation in critical power generation environments.

Core Processing and Memory Architecture

This controller module integrates a powerful processor with ample memory resources. The GE IS420UCSBH4A runs the QNX Neutrino RTOS for deterministic real-time performance. Its unified memory architecture accelerates data access for time-sensitive control tasks. The module includes extensive non-volatile storage for application and configuration retention. Furthermore, the system supports online firmware updates without process interruption.

Technical Specifications

Parameter	Specification
Processor	600 MHz Intel EP80579
Operating System	QNX Neutrino 6.5
System Memory	256 MB DDR2 SDRAM
CompactFlash Storage	2 GB industrial grade
User Program Memory	512 MB Flash
Ethernet Ports	5 x 10/100Base-TX
IONet Ports	4 dedicated, 1 management
IONet Speed	100 Mbps full-duplex
Serial Console	1 x RS-232 (RJ-45)
USB Host Ports	2 x USB 2.0
Maximum I/O Packs	64 per controller
Control Scan Rate	5 ms minimum
Real-Time Clock	Battery-backed with ±5 ppm accuracy
Clock Battery	3.6 V lithium, 5 years typical
Status LEDs	Power, run, fault, Ethernet link/act
Power Supply	24 V DC nominal (18–32 V DC)
Power Consumption	28.5 W peak, 16.8 W typical
Inrush Current	15 A maximum for 10 ms
Weight	1.25 kg (approximately 2.76 lbs)
Dimensions (W x H x D)	63.5 mm x 273 mm x 193 mm
Mounting	DIN rail with 1.5 mm steel bracket
Operating Temperature	-30°C to +65°C
Storage Temperature	-40°C to +85°C
Relative Humidity	5% to 95% non-condensing
Vibration Tolerance	2 g at 10–500 Hz
Shock Tolerance	15 g for 11 ms

Key Functional Benefits

The GE IS420UCSBH4A offers enhanced storage capacity for complex control strategies. Its fanless thermal design eliminates moving parts that could fail over time. Consequently, this controller delivers superior reliability in harsh industrial settings. The module requires no battery for program retention, reducing maintenance overhead. Moreover, its dual-redundant communication paths provide uninterrupted data exchange with I/O subsystems.

Installation and Network Integration

You must mount the GE IS420UCSBH4A on a standard DIN rail inside a protective enclosure. The controller communicates with I/O packs through the high-speed IONet fiber optic network. Proper cable management preserves signal quality across long distances. Additionally, you can configure network parameters via the integrated management port. This module operates exclusively within GE’s Mark VIe control system architecture.

Environmental Durability and Compliance

The GE IS420UCSBH4A meets CE and UL 61010-1 safety standards. Its conformal-coated circuit board resists moisture and airborne pollutants. The module operates reliably across extreme temperature ranges. Furthermore, its MTBF exceeds 200,000 hours under rated conditions. This robust design ensures years of trouble-free service in demanding power plant applications.
