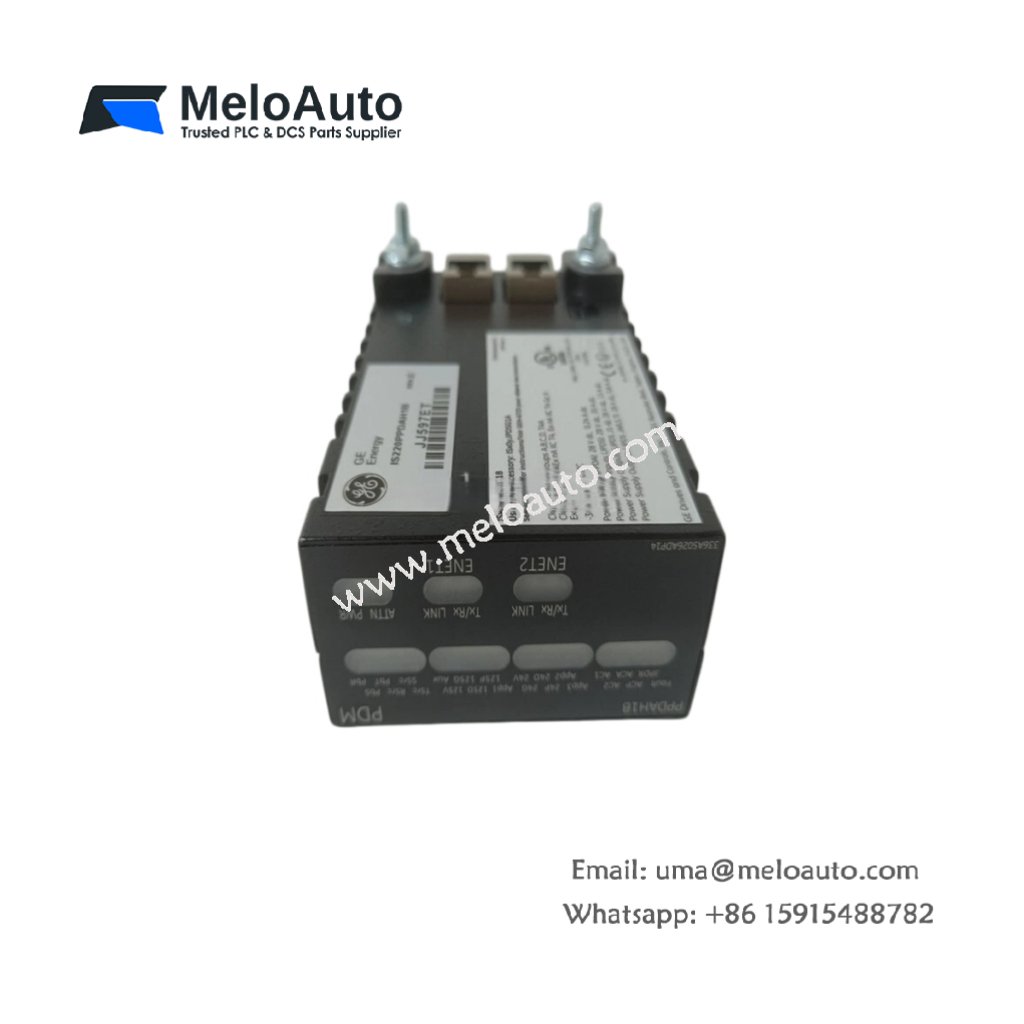

This power distribution feedback module monitors the electrical health of GE Mark VIe turbine control systems. It gathers real-time status from up to six power distribution modules for comprehensive system oversight. The module provides diagnostic data on grounding faults, bus voltages, and branch circuit breakers.
Feedback Architecture and Connectivity
The GE IS220PPDAH1B mounts directly onto compatible PDM boards including the JPDS, JPDC, or JPDM models. It employs electronic ID technology to identify the connected power distribution board automatically. The module transmits feedback data via dual-redundant Ethernet ports for high reliability. A 50-pin ribbon cable connects the module to additional boards for expanded monitoring. The board performs five self-diagnostic tests to ensure operational integrity.
Technical Specifications
| Specification | Detail |
|---|---|
| Model | IS220PPDAH1B |
| Product Type | Power Distribution Feedback I/O Pack |
| System Compatibility | GE Mark VIe, Mark VIeS |
| Feedback Channels | Up to 6 PDM components |
| Communication | Dual Ethernet, RS-485 |
| Protocols | EGD (Ethernet Global Data), Modbus TCP/IP |
| Supply Voltage | 28 VDC (nominal) |
| PDM Compatibility | JPDC, JPDS, JPDM, JPDG |
| Feedback Signals | Ground fault, bus voltage, branch status |
| Dimensions | 168 × 148 × 55 mm |
| Weight | Approx. 0.6 kg |
| Operating Temp | -30°C to +65°C |
| Storage Temp | -40°C to +85°C |
| Humidity | 5% to 95% non-condensing |
| Mounting | 35mm DIN rail |
| Certifications | CE, UL |
System Integration and Diagnostic Functions
The module communicates with the Mark VIe controller via dual IONet Ethernet links for redundancy. An automatic reconfiguration feature allows plug-and-play replacement without manual setup. The module sends diagnostic data such as ground fault warnings and voltage deviations to ToolboxST software. LED indicators on the front panel display power, communication, and fault statuses. This design enables proactive maintenance and reduces unplanned downtime in critical power generation assets.
Application Use
Gas turbines, steam turbines, and generators in power plants rely on this module for power system feedback. It also serves critical roles in oil and gas facilities and chemical processing applications. The module provides essential diagnostic data for auxiliary systems and protection devices. Its rugged design ensures reliable operation in demanding industrial environments.
