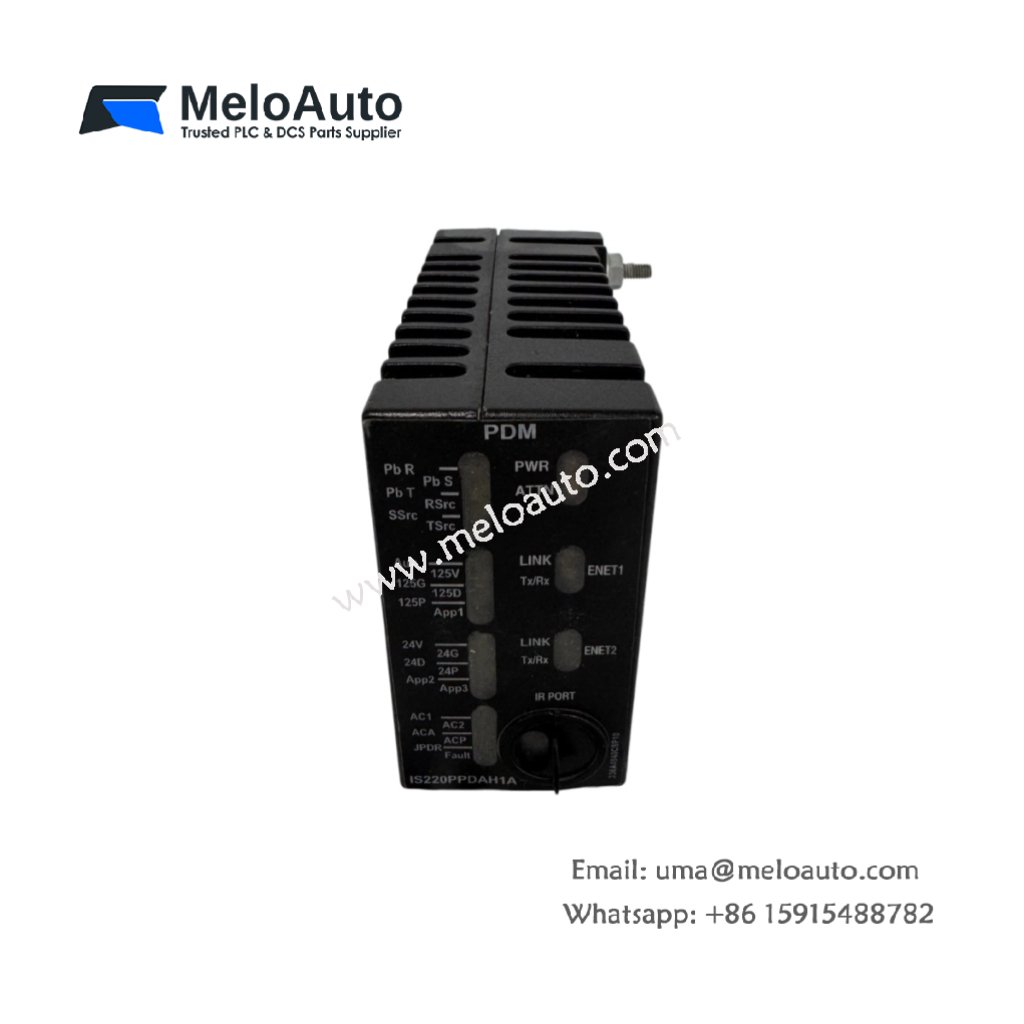

This feedback board monitors power distribution status within the GE Mark VIe turbine control system. It gathers critical data from up to six power distribution modules for comprehensive system oversight. The board plays a key role in maintaining the integrity of the power distribution network .
System Monitoring and Feedback Architecture
The GE IS220PPDAH1A accepts inputs from multiple power distribution boards, including JPDG, JPDS, JPDM, and JPDC models . It provides feedback on parameters such as bus voltage, branch circuit health, and ground fault status . The module uses electronic IDs to identify connected boards and populate IONet outputs correctly . A built-in 1 ms Sequence of Events (SOE) resolution captures essential data for post-event analysis . The board handles up to five analog input channels and supports system feedback exclusively, not direct protective actions .
Technical Specifications
| Specification | Detail |
|---|---|
| Model | IS220PPDAH1A |
| Product Type | Power Distribution System Feedback I/O Pack |
| System Compatibility | GE Mark VIe, Mark VIeS |
| Analog Inputs | 5 |
| Host Boards | JPDG, JPDS, JPDM, JPDC |
| Communication | Dual IONet Ethernet ports |
| Input Voltage | 24 VDC nominal, supports 85-264 VAC |
| Communication Protocol | Modbus RTU, EtherNet/IP |
| Dimensions (L×W×H) | 11 × 6 × 6.7 cm |
| Weight | 0.38 kg |
| Operating Temperature | -30°C to +70°C |
| Storage Temperature | -40°C to +85°C |
| Humidity | 5% to 95% non-condensing |
| LED Indicators | 8 status LEDs |
| Certifications | CE, UL, ISO 9001 |
Installation and Integration
The PPDA I/O pack mounts directly onto a JPDG, JPDS, JPDM, or JPDC power distribution module . It connects to other boards via 50-pin ribbon cable jumpers for data routing . The module also features two Ethernet ports for redundant IONet connections . A soft-start feature limits inrush current when applying power . Configuration requires the ToolboxST software package (version V04.07 or later) .
Application Use
Power generation plants, including gas and steam turbine facilities, rely on this board for power system feedback . It also serves critical roles in chemical processing and water treatment applications . The board provides essential diagnostic data for turbine auxiliaries and protection devices . Its rugged design ensures reliable operation in demanding industrial environments.
