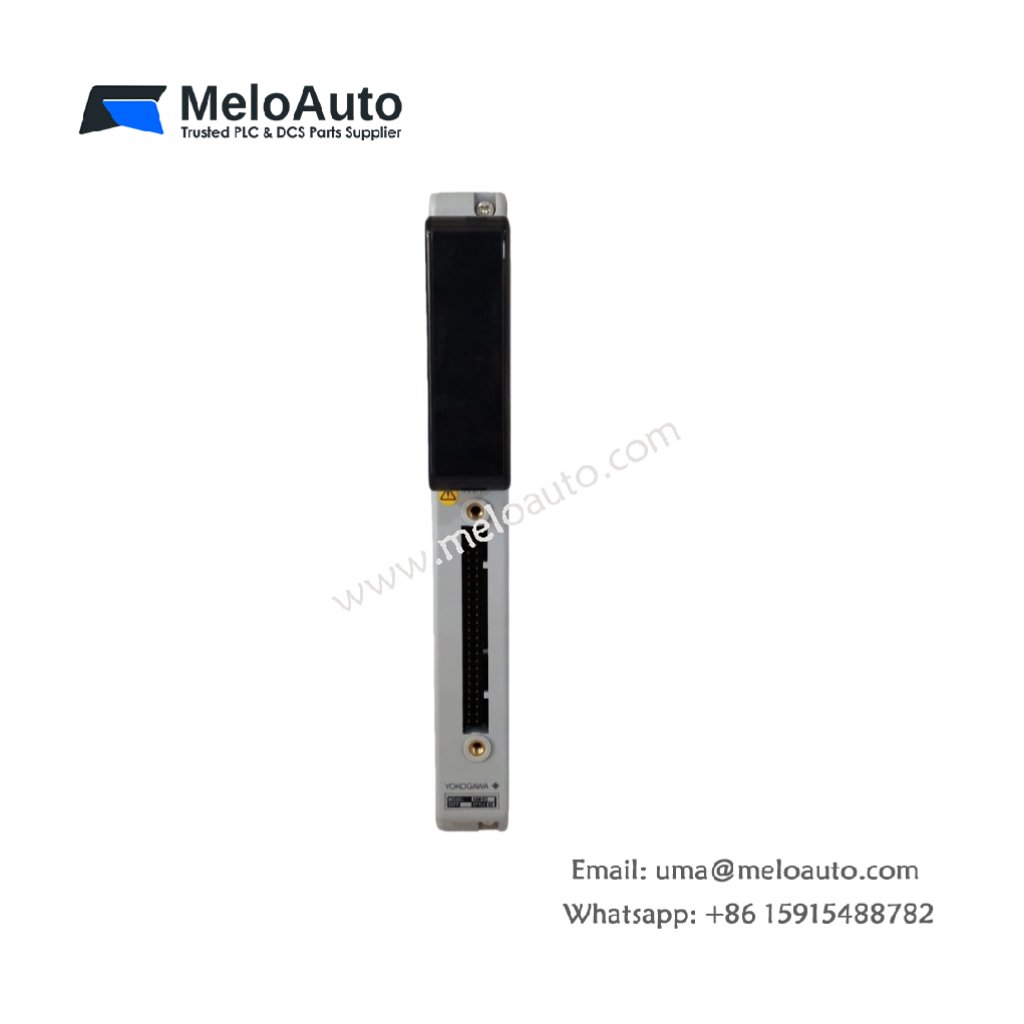

Yokogawa ADM12C Contact Input Module, 32 I/O Points

The Yokogawa ADM12C is a reliable and efficient contact input module designed to enhance the capabilities of industrial automation systems. With 32 input points, this module is perfect for controlling a wide range of industrial devices. It offers excellent performance with a compact design, making it ideal for a variety of applications requiring high-speed monitoring and reliable input control.

Key Features:

Model: ADM12C
Category: Contact Input Module
Manufacturer: Yokogawa
Type: Connector Type Module

The ADM12C provides 32 contact input points, each capable of handling external contact devices with a minimum rating of 5V DC and 20mA. It supports quick input pulse processing, with a pulse width of 40 ms minimum and a maximum pulse period of 10 Hz.

Technical Specifications:

Parameter	Details
Model	ADM12C
Number of I/O Points	32 Points
Type	Connector Type
Contact Rating	5V DC, 20mA min. (external contact standard)
Pulse Width	40 ms min.
Pulse Period	10 Hz max.
Power Consumption	600 mA max. (5.0 V DC)
Heat Dissipation Factor	0.6
Signal Isolation	Common minus side every 16 points
Installation	Installed in the I/O module nest
Connection Type	KS9 or KS10 cable
Terminal Board	TE32

Why Choose the Yokogawa ADM12C?

32 Input Channels: The ADM12C offers ample input points, allowing for the control of a large number of external devices in your automation system.
High-Speed Processing: With a minimum pulse width of 40 ms, the module ensures quick signal processing and response times.
Compact Design: Its space-saving design makes it easy to install in control panels and systems with limited space.
Reliable Power Consumption: Operating at a maximum power consumption of 600 mA, this module is energy efficient, ensuring long-term cost savings.
Signal Isolation: The ADM12C ensures isolation between every 16 points, minimizing signal interference and improving system stability.

Applications:

The Yokogawa ADM12C is perfect for a wide range of industrial applications, including:

Industrial Automation: Used in systems requiring precise control and monitoring of multiple contact switches.
Control Systems: Suitable for monitoring door switches, limit switches, and other control devices.
Process Monitoring: Effective in processes that require fast, reliable input processing, such as conveyor systems or automated machinery.
Safety Systems: Provides critical input monitoring for safety devices, ensuring real-time detection of faults and preventing system failures.

With its robust features, the ADM12C delivers reliable and high-speed input control, making it an essential component for your automation system.
