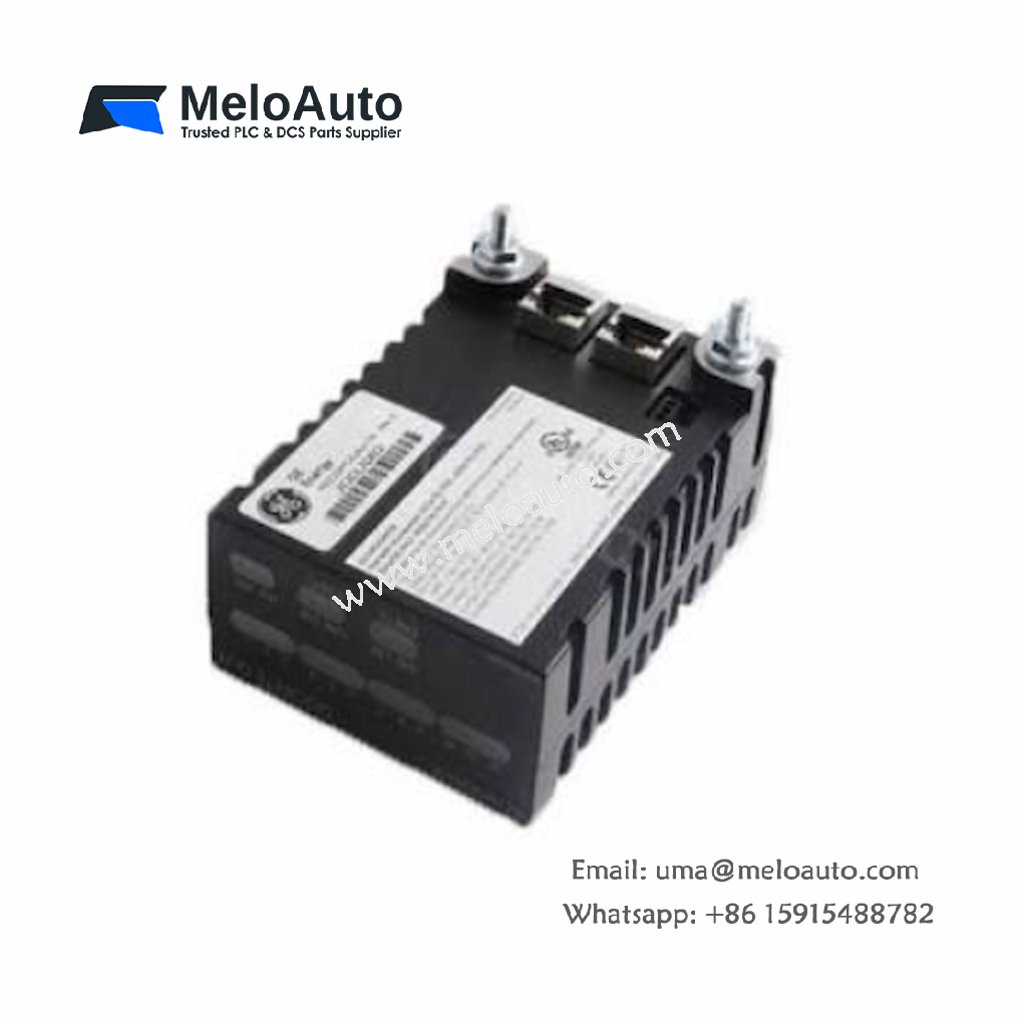

GE IS200PAICH1A Analog I/O Pack

Product Overview

The GE IS200PAICH1A operates as a dedicated analog I/O pack within the Mark VIe control platform. This module connects directly to field sensors and actuators through its comprehensive terminal array. Its high-density design accommodates multiple signal types in a single compact unit. We engineered this pack for precise process measurement and control in power generation systems.

Channel Configuration and Signal Handling

This analog I/O pack features independently configurable channels for maximum application flexibility. The GE IS200PAICH1A accepts both current and voltage inputs from various transducer types. Its onboard A/D converters deliver high-resolution measurements for critical control loops. The module also provides analog outputs for driving actuators and positioners. Furthermore, each channel includes built-in overvoltage and reverse-polarity protection.

Technical Specifications

Parameter	Specification
Analog Inputs	8 differential channels
Input Ranges	0–20 mA, 4–20 mA, 0–5 V, 0–10 V, ±10 V
Analog Outputs	4 channels, 4–20 mA or 0–10 V
Input Resolution	16-bit ADC
Output Resolution	14-bit DAC
Accuracy	±0.1% of full scale at 25°C
Temperature Drift	±50 ppm/°C maximum
Update Rate	10 ms per channel (inputs), 5 ms (outputs)
Isolation	1.5 kV between field and logic circuits
Power Supply	28 V DC from the backplane
Power Consumption	12 W typical
I/O Connectors	3 x 40-pin discrete wiring headers
Configuration Storage	Onboard EEPROM with redundant copies
Weight	1.2 kg (approximately 2.65 lbs)
Dimensions (W x H x D)	102 mm x 305 mm x 280 mm
Operating Temperature	-30°C to +65°C
Humidity	5% to 95% non-condensing

Key Functional Benefits

The GE IS200PAICH1A offers exceptional signal fidelity for demanding turbine control applications. Its removable terminal blocks simplify wiring and facilitate quick module replacement. Consequently, maintenance teams can swap units without rewiring the field connections. The pack includes diagnostic LEDs for monitoring channel status and communication health. Moreover, its robust filtering eliminates electromagnetic interference from nearby power equipment.

Installation and System Integration

You must mount the GE IS200PAICH1A in a dedicated I/O rack within the control cabinet. Proper cable segregation maintains signal integrity and reduces crosstalk between channels. The module communicates with the main controller via the IONet high-speed network. Furthermore, the pack supports online configuration changes without process interruption. This board integrates seamlessly with GE’s Mark VIe and Speedtronic families.

Environmental Compliance and Durability

The GE IS200PAICH1A meets rigorous industrial standards for thermal and vibration resistance. Its all-solid-state design contains no batteries or moving components. The board withstands up to 2 g of vibration across 10 to 150 Hz. Moreover, its conformal-coated PCB protects against moisture and airborne contaminants. This construction ensures dependable operation in harsh power plant conditions.
