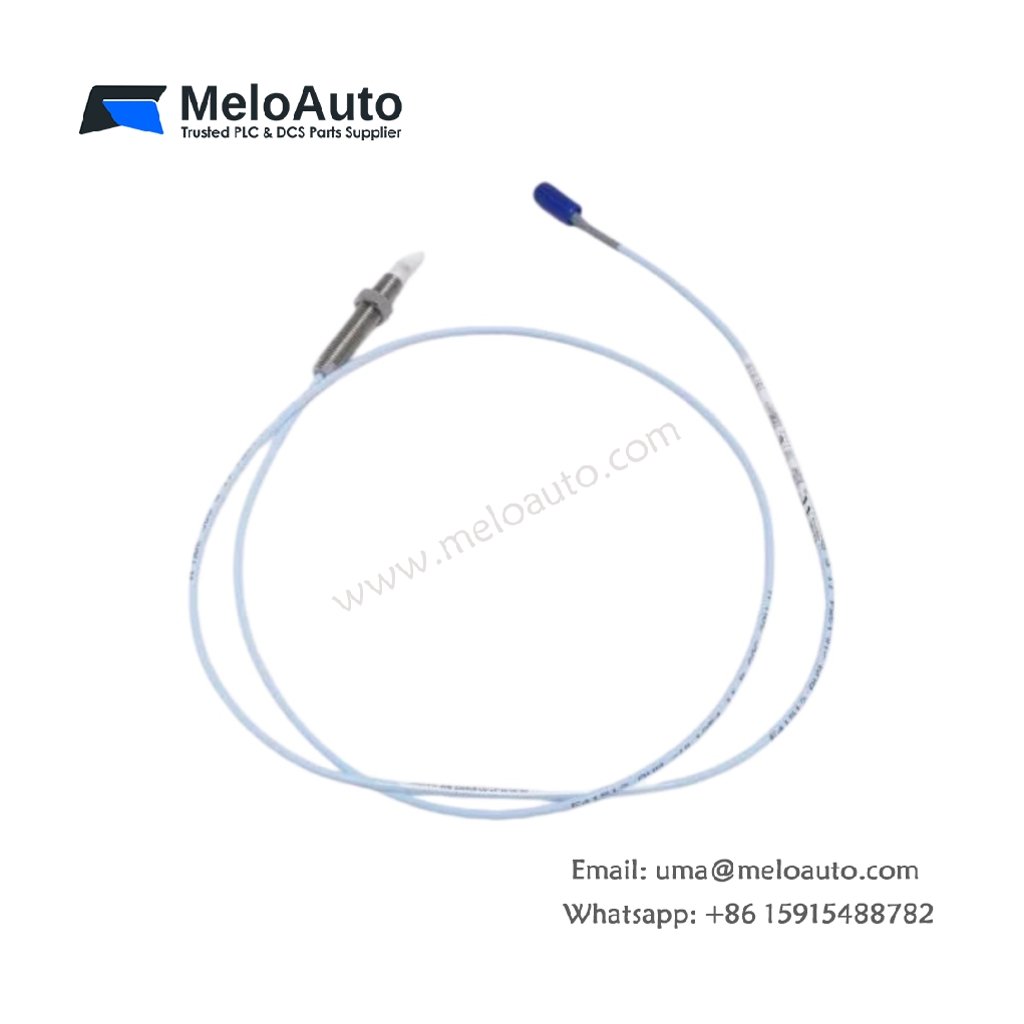

Bently Nevada 330908-00-08-10-02-05 | 3300 NSv Proximity Probe

8 mm NSv Probe with Right-Angle Connector for Tight Installations

The Bently Nevada 330908-00-08-10-02-05 belongs to the 3300 NSv series and provides non-contact vibration measurements. This sensor reliably monitors shaft displacement in confined machinery spaces and tight bearing housings. Its right-angle connector design effectively minimizes the required clearance for installation.

This probe features an 8 mm tip paired with a right-angle connector at the cable terminus. A 0.8 meter cable length suits applications requiring short connections near the sensor head. The 10 mm unthreaded section ensures precise mounting depth for accurate gap voltage settings.

Technical Specifications

Parameter	Specification
Model	330908-00-08-10-02-05
Type	3300 NSv Proximity Probe
Probe Diameter	8 mm
Case Diameter	12 mm
Connector Type	Right-angle miniature coaxial
Cable Length	0.8 meter (integral)
Unthreaded Length	10 mm
Cable Type	FEP-insulated, shielded
Thread	3/8-24 UNF
Linear Range	1.5 mm typical
Operating Temp (Probe)	-52 °C to +177 °C
Operating Temp (Cable)	-52 °C to +260 °C
Weight	0.20 kg (approx.)
Compliance	API 670, ATEX, CSA (05 suffix)

The right-angle connector allows installation in spaces where straight connectors cannot fit. Its short 0.8 meter cable reduces excess length in compact mounting arrangements. The 10 mm unthreaded section provides controlled depth adjustment for optimal linear range operation.

This probe features high-temperature cable rated for operation up to 260 °C. The 3/8-24 UNF threading enables direct mounting in standard industrial brackets. Its FEP insulation offers excellent resistance to oil, steam, and chemical exposure.

The 330908-00-08-10-02-05 integrates with 3300 NSv Proximitors and 3500 monitoring systems. Its robust design supports continuous protection in critical steam and gas turbine applications. Therefore, this probe delivers dependable performance in space-constrained environments.
