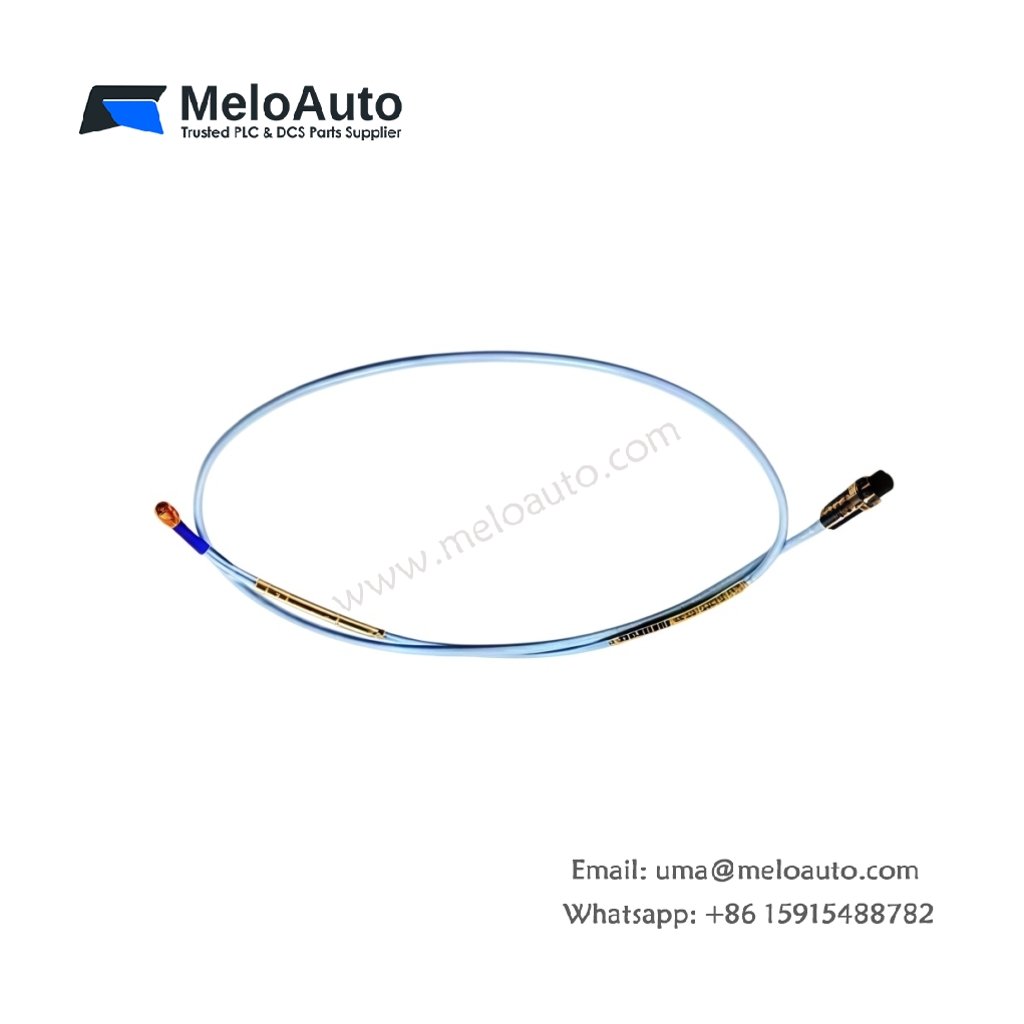

Bently Nevada 330908-00-53-10-02-05 | 3300 NSv Proximity Probe

8 mm NSv Probe with Right-Angle Connector for Tight Spaces

The Bently Nevada 330908-00-53-10-02-05 belongs to the 3300 NSv series and measures shaft vibration in confined machinery areas. This sensor provides reliable displacement data where standard straight probes cannot fit properly. Its right-angle connector design significantly reduces the required clearance space.

This probe features an 8 mm tip with a right-angle connector at the cable end. A 5.3 meter cable length offers flexible routing options away from hot machine surfaces. The 10 mm unthreaded section provides precise mounting depth control for optimal performance.

Technical Specifications

Parameter	Specification
Model	330908-00-53-10-02-05
Type	3300 NSv Proximity Probe
Probe Diameter	8 mm
Connector Type	Right-angle miniature coaxial
Cable Length	5.3 meters (integral)
Unthreaded Length	10 mm
Case Diameter	12 mm
Cable Type	FEP-insulated, shielded
Thread	3/8-24 UNF
Linear Range	1.5 mm typical
Operating Temp (Probe)	-52 °C to +177 °C
Operating Temp (Cable)	-52 °C to +260 °C
Weight	0.35 kg (approx.)
Compliance	API 670, ATEX, CSA (05 suffix)

The right-angle connector allows installation in extremely tight spaces near bearing housings. Its 5.3 meter cable provides ample length for remote routing away from heat sources. The 10 mm unthreaded section enables precise gap adjustment within the mounting bracket.

This probe features high-temperature cable rated for operation up to 260 °C. The 3/8-24 UNF threading simplifies direct mounting in standard industrial brackets. Its FEP insulation offers excellent resistance to oil, steam, and chemical exposure.

The 330908-00-53-10-02-05 integrates with 3300 NSv Proximitors and 3500 monitoring systems. Its robust design supports continuous protection in critical steam and gas turbine applications. Therefore, this probe delivers reliable performance where space constraints exist.
