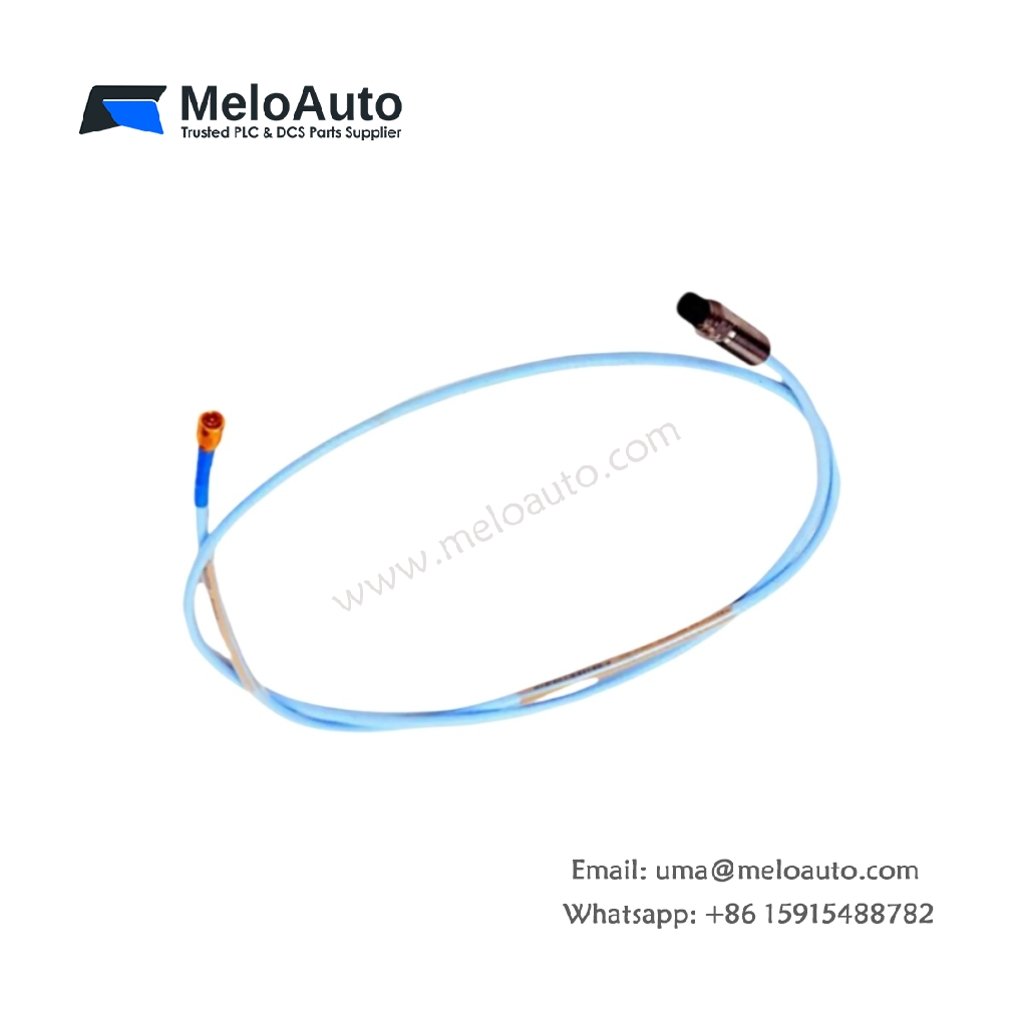

Bently Nevada 330905-00-08-05-12-00 | 3300 NSv Proximity Probe

8 mm NSv Probe for Narrow Sideview Installations

The Bently Nevada 330905-00-08-05-12-00 belongs to the 3300 NSv series and performs non-contact vibration measurements. This sensor monitors shaft displacement in tight clearance areas of turbines and compressors. Its slim profile allows installation where standard probes cannot physically fit.

This probe features an 8 mm tip with a 12 mm diameter case for narrow sideview access. A matched Proximitor sensor completes the system for accurate shaft relative vibration data. The device includes an integral cable with a miniature coaxial connector at the system end.

Technical Specifications

Parameter	Specification
Model	330905-00-08-05-12-00
Type	3300 NSv Proximity Probe
Probe Diameter	8 mm
Case Diameter	12 mm
Overall Case Length	21.8 mm
Unthreaded Length	5 mm
Cable Length	1.0 meter (integral)
Cable Type	FEP-insulated, shielded
Connector	Miniature coaxial
Thread	3/8-24 UNF
Linear Range	1.5 mm typical
Operating Temp (Probe)	-52 °C to +177 °C
Weight	0.25 kg (approx.)
Compliance	API 670, ATEX, CSA

The compact 12 mm case diameter fits into narrow sideview positions. A 5 mm unthreaded length provides controlled mounting depth adjustment for optimal gap settings. Its FEP cable insulation offers robust resistance to oil and chemical exposure.

This probe’s 3/8-24 UNF threading facilitates direct installation in standard brackets and housings. The 1.0 meter integral cable minimizes connection points and enhances system reliability. It also carries intrinsic safety certification for operation in hazardous environments.

The 330905-00-08-05-12-00 works with 3300 NSv Proximitors and 3500 monitoring systems. Its design supports continuous machine protection in critical turbomachinery applications. Therefore, this probe delivers dependable performance where space constraints exist.
