GE IC600WD002 I/O Cable | Series Six Expansion Rack

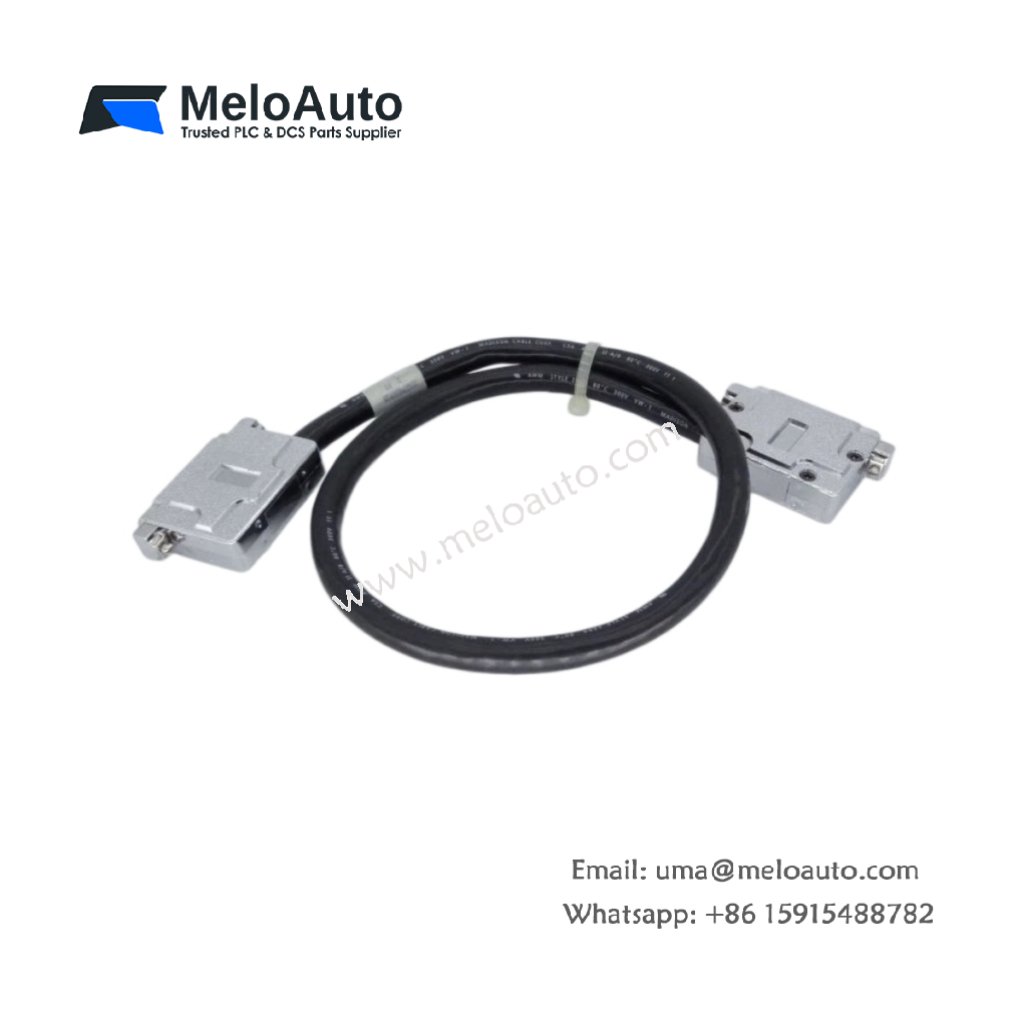

The IC600WD002 connects expansion racks to the main Series Six PLC chassis. This cable carries I/O signals between the central processor and remote racks. You can rely on it for reliable data transfer in distributed automation systems.

Key Technical Parameters

The table below lists all essential technical specifications for this expansion rack I/O cable.

Specification	Details
Part Number	IC600WD002
Product Type	Expansion Rack I/O Cable
Compatibility	GE Series Six PLC systems
Cable Length	2.0 meters
Connector Type 1	50-pin D-sub (male)
Connector Type 2	50-pin D-sub (male)
Shielding	Braided copper shield
Number of Conductors	50 twisted pairs
Impedance	100 ohms
Jacket Material	PVC (gray)
Outer Diameter	12.5 mm
Weight	Approx. 0.38 kg
Operating Temperature	0°C to 55°C
Storage Temperature	-20°C to 70°C

Physical Characteristics and Installation

This I/O cable weighs approximately 0.38 kg for easy field handling. Its length measures exactly 2.0 meters between connector ends. The outer jacket uses durable PVC material for industrial environments. A braided copper shield surrounds all internal conductors. Consequently, this shielding rejects electromagnetic interference effectively.

Connector Design and Signal Integrity

The IC600WD002 features 50-pin D-sub connectors on both ends. Each connector has a metal housing for additional shielding protection. The cable contains 50 twisted pairs of copper conductors. Each pair has a 100 ohm impedance for signal matching. This design maintains clean signal transfer over the full 2-meter length.

Installation and Usage Guidelines

First, power down both the main and expansion racks before installing this cable. Then, align the IC600WD002 connectors with the appropriate ports. Finally, tighten the thumb screws securely on both ends. Do not run this cable near high-power motor leads. The gray PVC jacket resists oil and mild chemicals for longer life. Use this cable for Series Six PLC expansion rack connections only.
