Overview

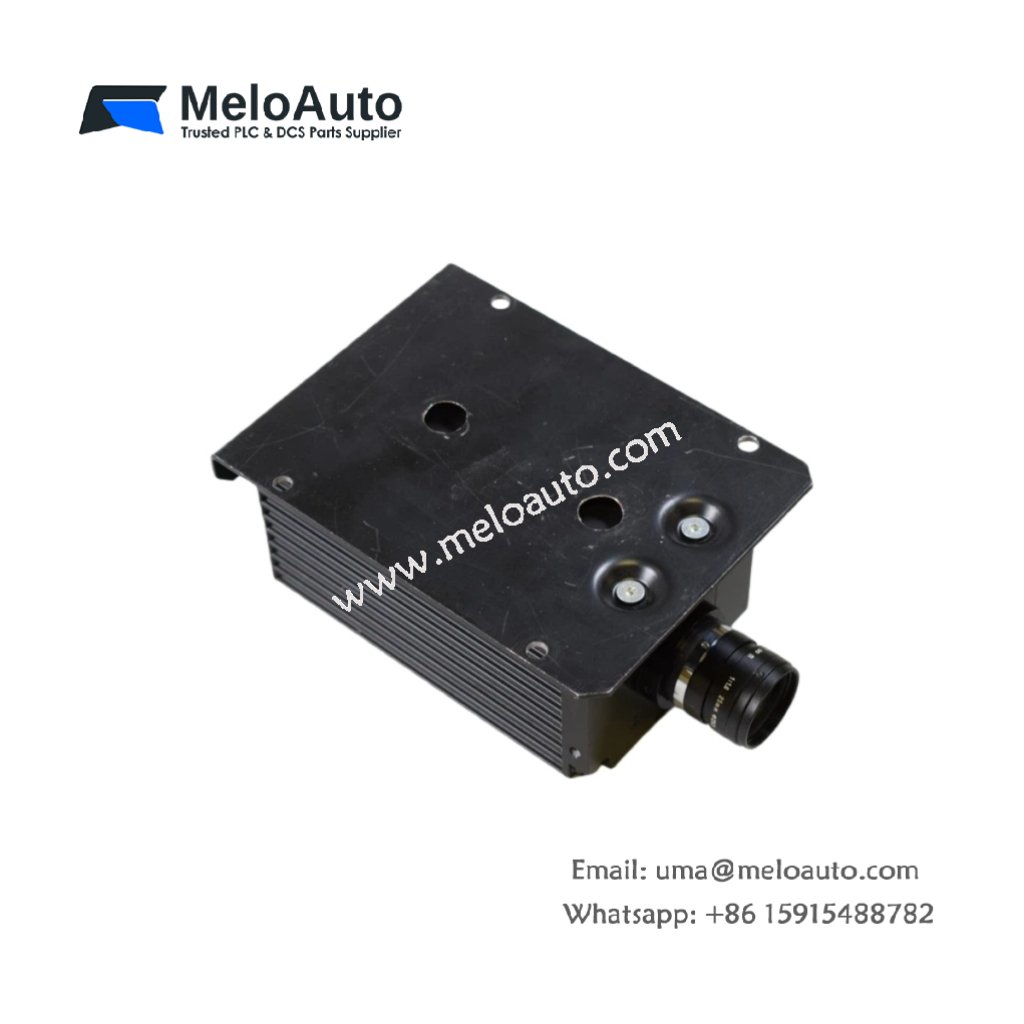

The Siemens 6GF1710-3AA is a high-performance SIMATIC VS710 Vision Sensor designed for industrial image processing and quality control. This advanced sensor, though discontinued, remains highly functional and effective for automated inspection in production environments. It offers a resolution of 768×512 pixels, enabling high-precision defect detection, part identification, and overall quality assessment in demanding applications.
The 6GF1710-3AA integrates seamlessly with industrial automation systems, thanks to its PROFIBUS DP interface. It is an ideal solution for industries requiring consistent and accurate image processing for quality control.
Key Features
- High-Resolution Imaging: The SIMATIC VS710 offers a picture format of 768×512 pixels, providing clear and accurate images for inspection tasks.
- PROFIBUS DP Interface: The 6GF1710-3AA supports PROFIBUS DP, ensuring smooth integration with Siemens PLC systems for real-time data exchange.
- Generous Memory Capacity: Equipped with 16 MB of main memory and 16 MB of flash memory, the module ensures fast data processing and storage.
- Compact Design: Its small metal casing (approximately 120mm x 80mm x 60mm) allows easy integration into industrial setups without taking up much space.
- Power Supply: This sensor operates on a 24V DC power input, consuming 0.5 A (5 Watts), ensuring energy-efficient operation.
- Operating Temperature Range: Designed to operate in environments ranging from 5°C to 50°C, making it suitable for a wide range of industrial conditions.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | Siemens 6GF1710-3AA |
| Module Type | SIMATIC VS710 Vision Sensor |
| Imaging Resolution | 768×512 pixels |
| Interface | PROFIBUS DP |
| Memory | 16 MB (main memory), 16 MB (flash disk) |
| Power Supply | 24V DC, 0.5 A (5 Watts) |
| Dimensions (L x W x H) | 120mm x 80mm x 60mm |
| Operating Temperature Range | 5°C to 50°C |
| Lens Socket | C-mount |
| Environmental Protection | Suitable for industrial environments |
| Status | Discontinued (Around 2012) |
Applications
The Siemens 6GF1710-3AA SIMATIC VS710 Vision Sensor excels in industrial automation applications such as:
- Automated Inspection: Used for inspecting parts on production lines, ensuring that quality standards are met.
- Defect Detection: Ideal for identifying defects in products to maintain high production standards.
- Part Identification: Effective in recognizing parts for sorting or verification during manufacturing processes.
Why Choose Siemens 6GF1710-3AA?
- Precision and Accuracy: With 768×512 pixel resolution, the 6GF1710-3AA provides high-quality imaging, essential for precise quality control.
- Seamless Integration: The PROFIBUS DP interface allows smooth communication with Siemens PLC systems, enhancing your automation network.
- Energy Efficient: Operating on 24V DC and consuming only 5 Watts, this sensor is energy-efficient, making it cost-effective for long-term use.
