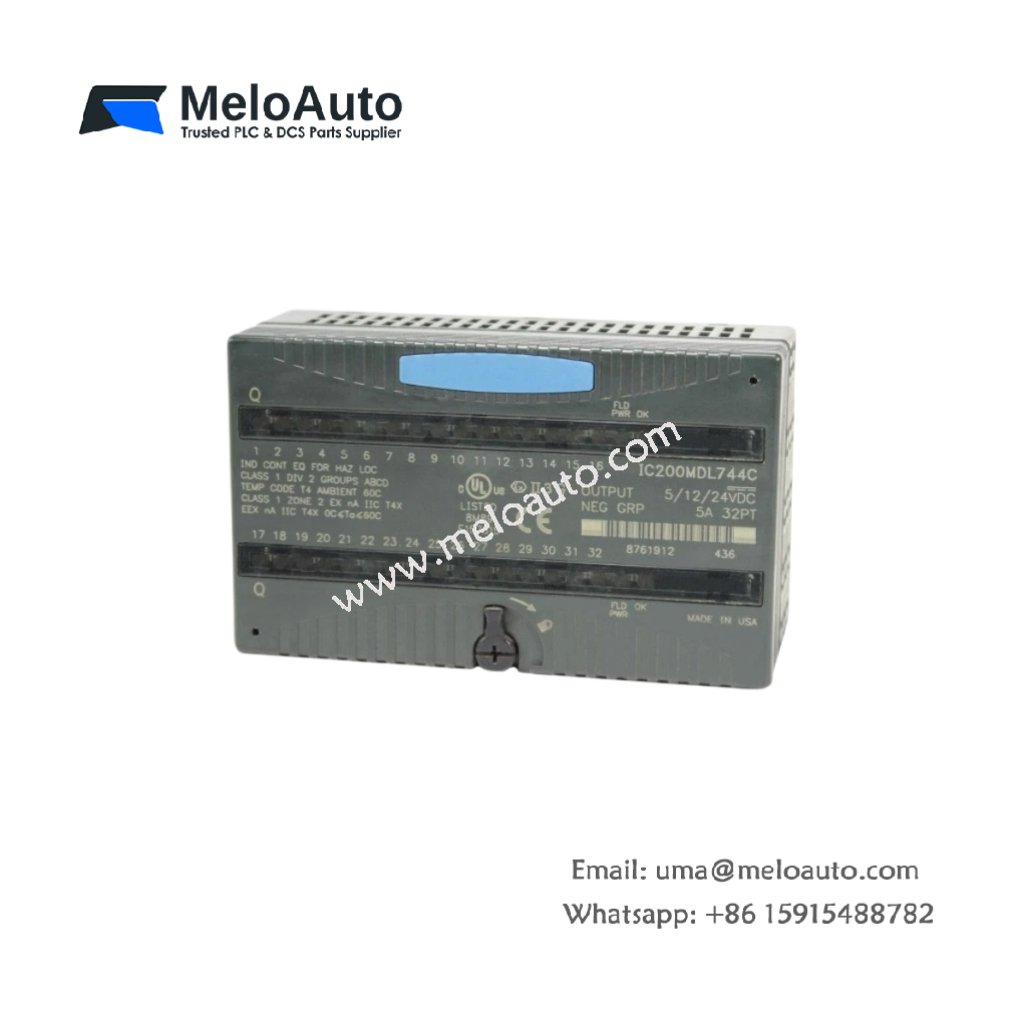

GE IC200MDL744C Output Module | VersaMax 16-Channel

The IC200MDL744C drives industrial actuators from GE VersaMax PLC outputs. This module provides high-density switching for solenoids, contactors, and indicator lamps. You can rely on it for reliable machine control in compact automation systems.

Key Technical Parameters

The table below lists all essential technical specifications for this discrete output module.

Specification	Details
Part Number	IC200MDL744C
Product Type	Discrete Output Module
Compatibility	GE VersaMax PLC series
Number of Outputs	16 digital outputs
Output Type	Transistor (PNP, high-side switching)
Output Voltage	24V DC nominal
Output Current	0.5 A per channel (maximum)
Total Output Current	4 A maximum (per module)
Output Protection	Short-circuit and overload
Response Time	1 ms typical
Leakage Current	< 0.1 mA when OFF
Dimensions (W x H x D)	110 mm x 70 mm x 50 mm
Weight	Approx. 0.26 kg
Terminal Type	Removable screw connector
Power Supply	5V DC from backplane + 24V DC external
Current Consumption	120 mA (logic)
Operating Temperature	0°C to 55°C

Physical Characteristics and Installation

This discrete output module weighs approximately 0.26 kg for DIN rail mounting. Its dimensions measure 110 mm x 70 mm x 50 mm for VersaMax systems. First, clip the IC200MDL744C onto a 35 mm DIN rail. Then, connect your actuators to the removable screw terminals. Finally, attach the module to the VersaMax bus connector. LED indicators on the front show the status of every output channel.

Output Specifications and Current Ratings

The IC200MDL744C provides 16 transistor outputs for driving industrial loads. Each output uses PNP (high-side) switching for 24V DC loads. The maximum current per channel reaches 0.5 A for small actuators. The total module current limit sits at 4 A for thermal protection. The response time measures 1 ms for fast machine sequences. Leakage current stays below 0.1 mA when the output remains OFF.

Protection Features and Power Requirements

This output module includes short-circuit protection on every channel. Overload protection shuts down the affected output during excessive current draw. The IC200MDL744C draws 120 mA from the 5V DC backplane supply. An external 24V DC power source supplies the load current for all outputs. Use this module for solenoid valves, indicator lamps, and small relays in VersaMax systems.
