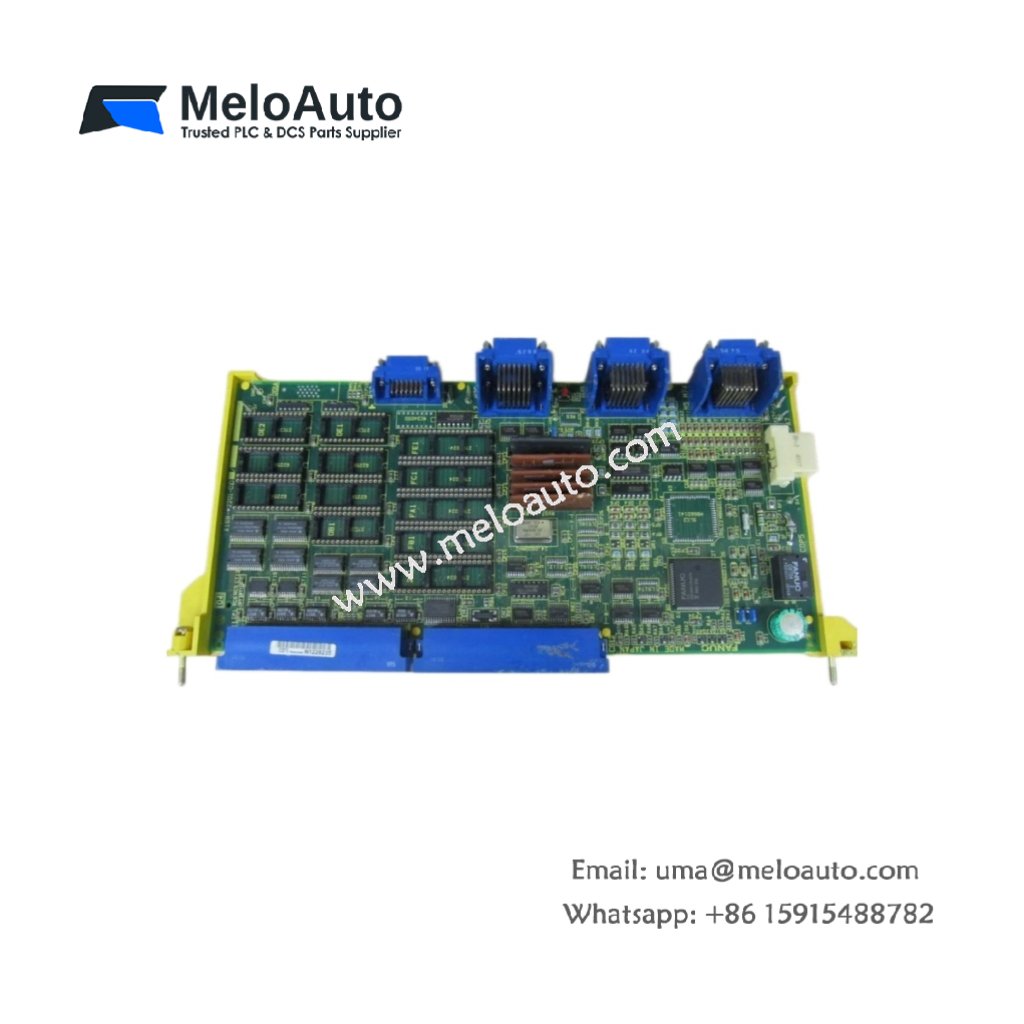

GE A16B-2201-0101/06A Memory Board

The A16B-2201-0101/06A provides program and data storage for GE Fanuc CNC systems. This memory board holds part programs, macros, and system parameters. You can rely on it for non-volatile storage in machine tool applications.

Key Technical Parameters

The table below lists all essential technical specifications for this memory circuit board.

Specification	Details
Part Number	A16B-2201-0101/06A
Product Type	Memory Circuit Board
Compatibility	GE Fanuc Series CNC systems
Memory Type	CMOS RAM with battery backup
Storage Capacity	256 KB (program memory)
Data Memory	64 KB (parameters and offsets)
Backup Battery	Lithium 3.6V (replaceable)
Battery Life	5 years typical
Memory Expansion	Up to 1 MB via optional modules
Dimensions (W x H x D)	220 mm x 180 mm x 25 mm
Weight	Approx. 0.48 kg
Connector Type	2 x 50-pin backplane connectors
Number of Components	12 ICs, 30 capacitors, 25 resistors
PCB Material	FR4 with conformal coating
Operating Temperature	0°C to 55°C

Physical Characteristics and Installation

This memory circuit board weighs approximately 0.48 kg for secure rack mounting. Its dimensions measure 220 mm x 180 mm x 25 mm for CNC controller cabinets. First, align the A16B-2201-0101/06A with the backplane guides. Then, press firmly until the board seats completely. Finally, secure the board using the top and bottom retaining screws. A conformal coating protects the PCB from moisture and dust.

Memory Specifications and Backup

The A16B-2201-0101/06A integrates 256 KB of CMOS RAM for part program storage. Data memory provides 64 KB for CNC parameters, tool offsets, and work coordinates. A replaceable lithium battery maintains all memory during power-down periods. The battery life reaches 5 years under normal conditions. Consequently, your programs remain safe for extended machine shutdowns. You can expand the memory up to 1 MB using optional modules.

Component Layout and Compatibility

This memory board contains 12 integrated circuits for memory management and addressing. Thirty capacitors provide power filtering and noise suppression. Twenty-five resistors establish proper signal levels and termination. The A16B-2201-0101/06A works with various GE Fanuc CNC controllers including Series 0, 15, 16, and 18. Use this board for storing large part programs and custom macros.
