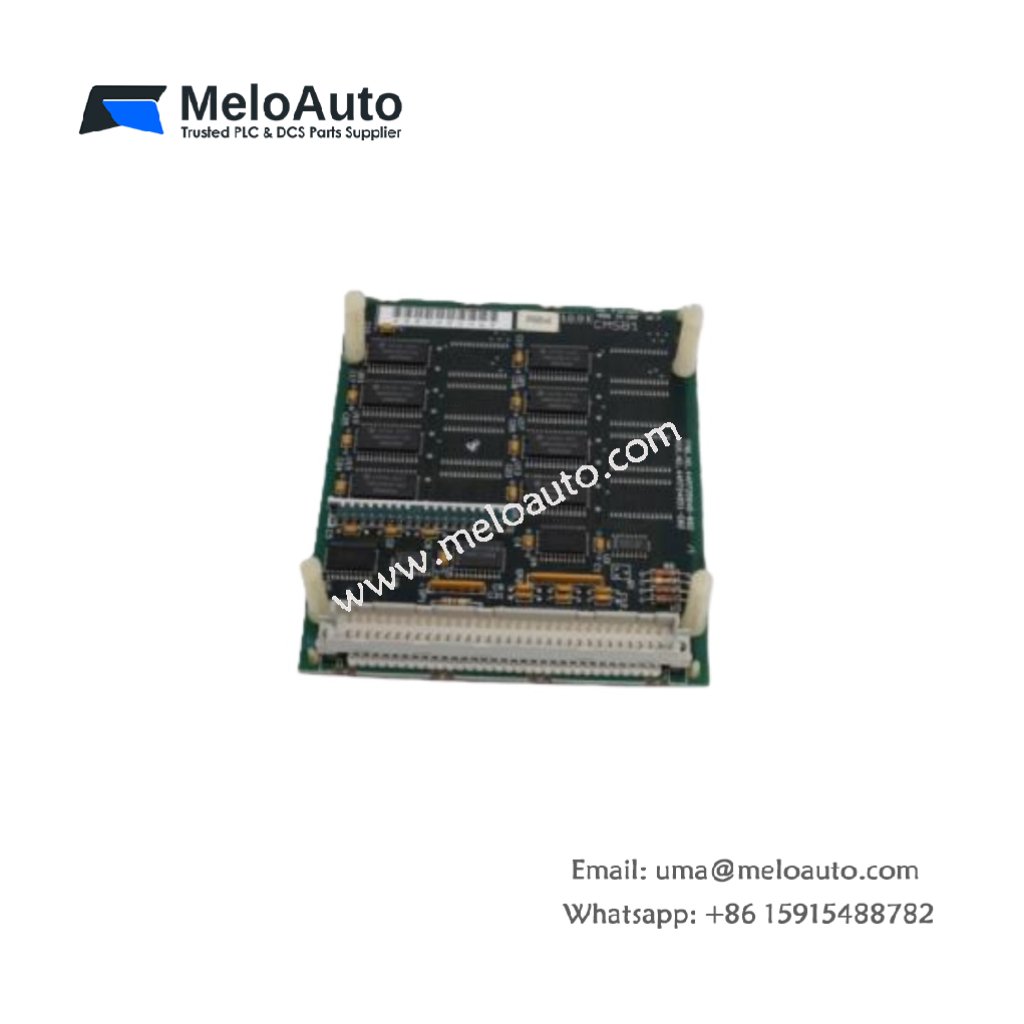

GE IC697MEM717 Memory Module for Series 90-70

The GE IC697MEM717 memory module is a reliable expansion memory solution for GE Fanuc Series 90-70 PLC systems. Designed to extend the memory capacity of GE 772 and GE 771 CPUs, this module enhances data and program storage capabilities while ensuring memory retention during power outages.

Key Features and Specifications

• Manufacturer: GE Fanuc Emerson
• Product Line: Series 90-70
• Part Number: IC697MEM717
• Memory Capacity Options: 64 KB, 128 KB, 256 KB, and 512 KB
• Weight: 0.19 lbs (0.09 kg)
• Shelf Life: 10 years at 20°C (68°F)
• Memory Retention: 6 months nominal without applied power
• Module Configuration: Supported
• Program Storage: Supported
• Data Storage: Supported
• Daughterboard Operation: Supported

Detailed Technical Specifications

Description

The GE IC697MEM717 memory module is an expansion memory option for GE Fanuc Series 90-70 PLCs. It provides additional memory storage for GE 772 and GE 771 CPUs, enabling enhanced performance and larger data storage capacities. The IC697MEM717 is available in different memory capacities: 64 KB, 128 KB, 256 KB, and 512 KB, allowing for flexible configurations based on the system requirements.

This memory module operates as a daughterboard within the same slot as the CPU, expanding the baseboard memory. It plays a vital role in ensuring memory retention, even during power failures, by utilizing a backup battery. This feature is crucial for maintaining system integrity, especially for long-term operation in industrial environments where power loss may occur unexpectedly.

The IC697MEM717 memory module supports both program storage and data storage. It also ensures continuous error checking through the PLC CPU in the background. This constant error checking is carried out even when the system undergoes power cycling or resets, ensuring that the memory is always reliable.

Memory Retention and Error Checking

The IC697MEM717 module is designed to retain memory for up to 6 months without applied power, thanks to the onboard battery. The module’s error checking system helps detect any discrepancies, ensuring that data remains accurate. The error checking process continues even during hard and soft resets.

Easy Installation

Installation of the IC697MEM717 module is straightforward. It operates as a daughterboard in the same slot as the CPU. Technicians should use Windows programming software or MS-DOS software to clear the memory before installation. For PCM installation, it’s essential to follow the provided instructions for the programmable coprocessor module.

Applications

• GE PLC Systems: Extends memory capacity in GE 772 and GE 771 CPUs.
• Industrial Automation: Ideal for systems that require additional memory for data and program storage.
• Critical Data Retention: Ensures data and program integrity even during power loss.

Advantages

• Flexible Memory Capacities: Available in 64 KB, 128 KB, 256 KB, and 512 KB options.
• Reliable Memory Retention: Retains memory for 6 months without applied power.
• Background Error Checking: Ensures memory integrity during resets and power cycling.
• Long Shelf Life: 10 years of shelf life at 20°C (68°F).
