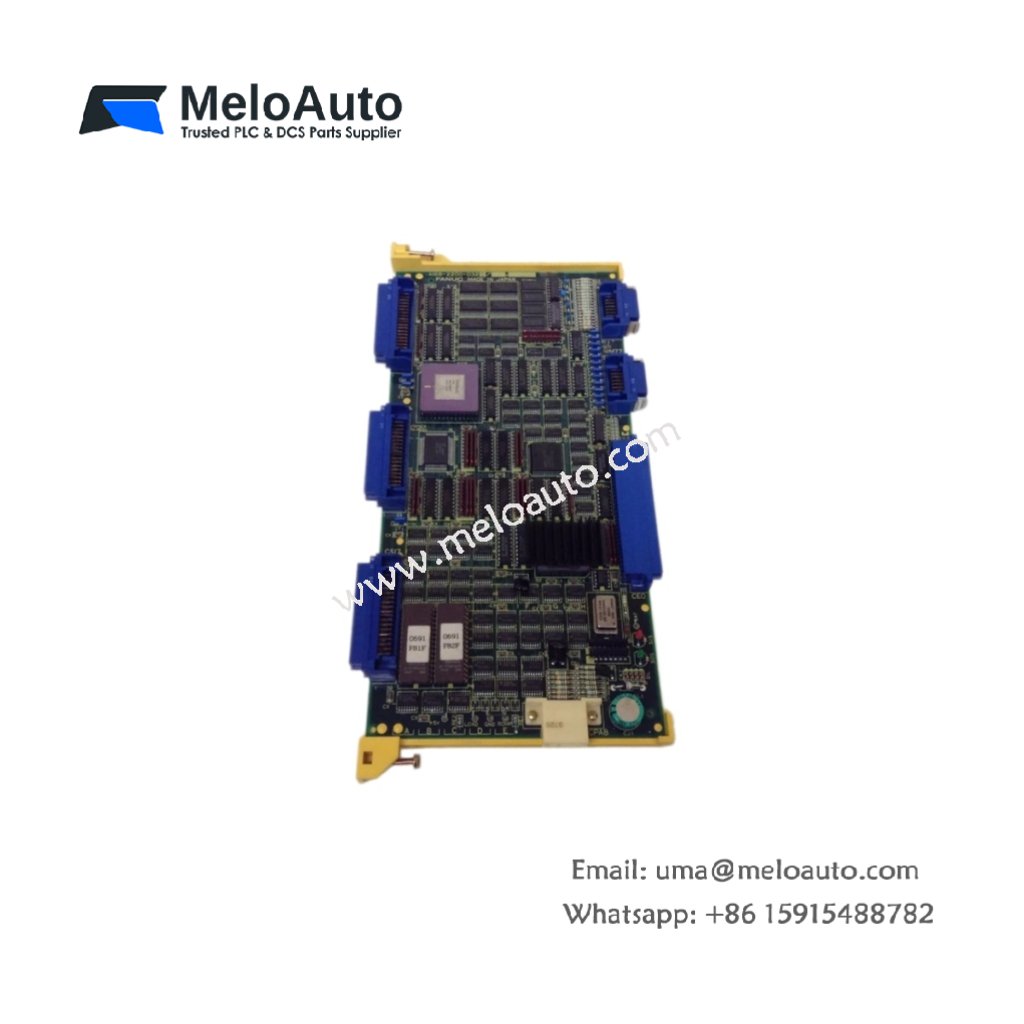

GE A16B-2200-0320/06A Axis Board SUP CPU

The GE A16B-2200-0320/06A serves as the supervisory CPU for multi-axis motion control systems. This board coordinates movement across multiple servo axes simultaneously. Therefore, it enables precise synchronization for complex machining and robotic applications.

Product Overview

We designed this axis board for high-speed coordinated motion in CNC machines. Its dedicated CPU handles trajectory planning and servo loop closure. Moreover, this unit supports up to 8 axes of interpolation with look-ahead functionality.

Technical Specifications

Parameter	Specification
Dimensions	26.0 cm (length) x 18.0 cm (width)
Weight	0.48 kg (approximately 1.06 lb)
Interface Type	Dual 64-pin backplane connectors plus front test points
Component Count	316 components including CPU, DSP, and memory
Energy Storage	8 aluminum capacitors (100 µF, 50V) plus 24 ceramic
Main Processor	32-bit RISC at 200 MHz
Motion Processor	Dedicated DSP at 150 MHz
Memory	2 MB SRAM, 4 MB flash, 128 KB dual-port
Control Axes	4 axes standard, expandable to 8
Interpolation	Linear, circular, helical, and spline
Update Rate	0.5 ms position loop, 0.125 ms velocity loop
Communication	Fiber optic to servo amplifiers, RS-232 to HMI
Supply Voltage	5V at 1.5A, 24V at 0.3A from backplane

Multi-Axis Architecture

The GE A16B-2200-0320/06A uses dual processors for motion and supervision. Its eight aluminum capacitors filter power for both processor sections. Additionally, 24 ceramic capacitors decouple noise from memory and communication circuits. You get deterministic performance even with all axes moving simultaneously.

Energy Storage Configuration

Eight aluminum capacitors provide 12 ms of hold-up for the processors. They maintain control during brief backplane power interruptions. Twenty-four ceramic capacitors filter high-frequency noise on all power rails. Clean power ensures precise timing for coordinated motion profiles. The capacitors also protect against voltage spikes from servo drives.

Motion Control Features

This axis board performs linear interpolation for straight-line moves between points. Circular interpolation generates arcs in XY, XZ, or YZ planes. Helical interpolation adds a linear axis to circular motion for threading. Spline interpolation creates smooth curves through multiple programmed points. The look-ahead function examines future moves to maintain contouring accuracy.

Installation Steps

Insert this axis board into a dedicated motion control slot in the rack. Align the GE A16B-2200-0320/06A with both backplane connectors carefully. Push the board evenly until both ejector levers lock into position. Then tighten all four corner screws for vibration resistance. Connect fiber optic cables to each servo amplifier in the system.

Servo Communication

The board communicates with servo amplifiers via fiber optic serial links. Fiber optic transmission provides immunity from electrical noise in factories. Each port connects to one servo amplifier for velocity and torque commands. The board receives encoder feedback through the same fiber optic connection. Maximum cable length between board and amplifier reaches 30 meters.

Position Feedback

Each axis accepts incremental encoder signals up to 10 MHz. The board also supports absolute encoders with battery backup for position retention. A dedicated hardware counter processes each encoder channel independently. The position loop updates at 0.5 ms for all axes simultaneously. Velocity feed-forward reduces following error during constant speed moves.

Programming Interface

Program this axis board using standard G-code or manufacturer-specific motion commands. The board executes part programs stored in its 4 MB flash memory. Real-time program execution allows changes to feedrate and spindle speed on the fly. The RS-232 port connects to pendant or programming computer for data transfer. The board also supports DNC communication for large part programs.

Application Scope

This axis board suits CNC machining centers, laser cutters, and waterjet systems. Many machine tool builders use the GE A16B-2200-0320/06A for precision motion control. Its robust design meets the demands of metal cutting and routing applications.
