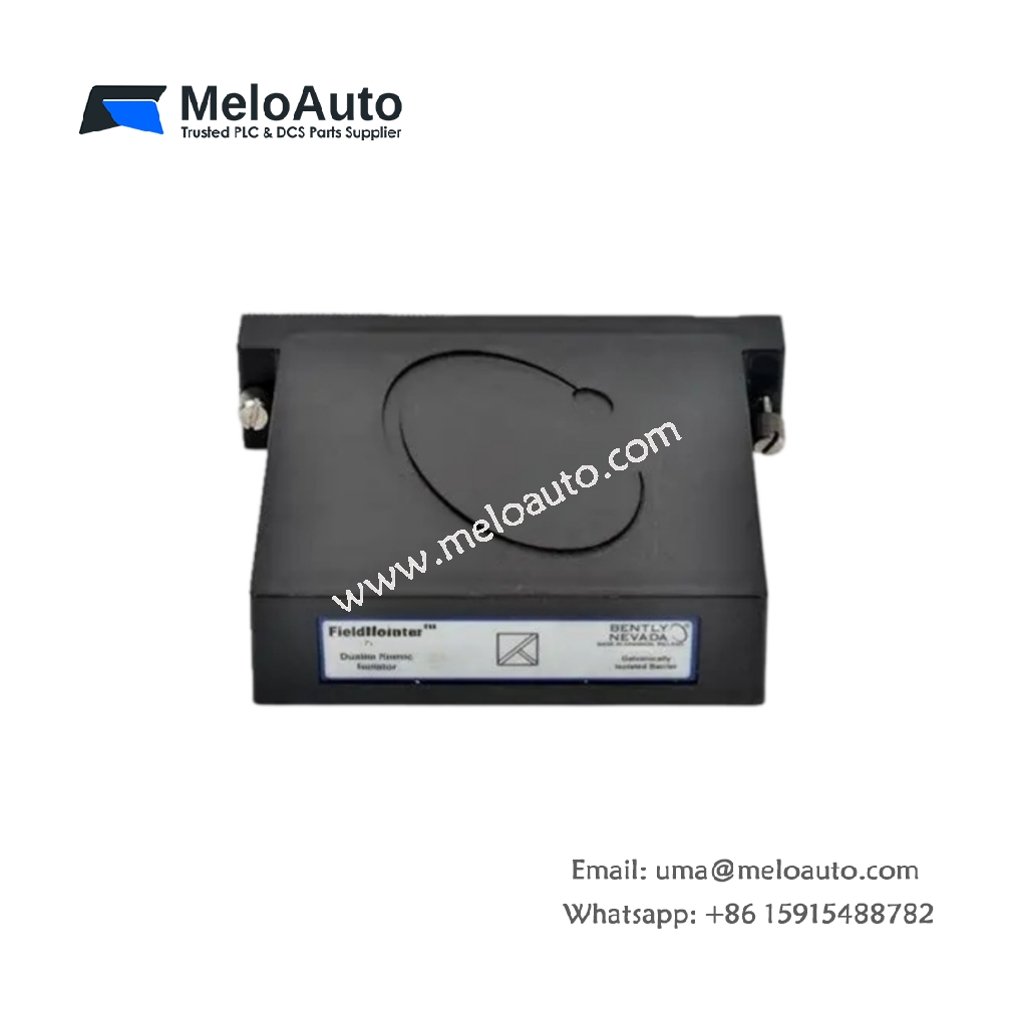

Bently Nevada 141380-01 Dual Galvanic Isolator Module

Ground Loop Protection with the 141380-01

The 141380-01 isolates two signal channels between field wiring and Bently Nevada monitoring electronics. This dual isolator module breaks ground loops that distort vibration and position readings. Reliability engineers therefore apply it where long cable runs pick up electrical interference. Its plug-in format fits standard terminal bases without extra mounting hardware.

Detailed Technical Parameters

Isolation strength defines the 141380-01, because each channel carries its own transformer barrier between field and rack circuits. The module passes analog signals while blocking common-mode voltage differences. Meanwhile, the compact housing fits standard terminal base positions. Review the essential specifications in the table below.

Parameter	Specification
Function	Dual-channel galvanic isolation for monitoring signals
Isolation channels	2 independent isolated signal paths
Dimensions (W × H × D)	40 × 120 × 60 mm
Weight	Approximately 0.3 kg
Interface	Plug-in terminal base connection
Component count	Two isolation barrier circuits plus housing
Energy storage	None (passive isolation module)
Operating temperature	0 °C to 65 °C

Integration into Monitoring Systems

The 141380-01 plugs into a standard terminal base and connects through the backplate contacts. Commissioning engineers verify channel isolation during startup procedures. Consequently, isolated channels return to service quickly after module replacement. The barrier keeps field ground potential away from the monitoring electronics. Furthermore, the sealed housing resists dust and moisture in turbine hall environments.

Why Plants Choose This Module

Many power stations still operate Bently Nevada systems for their proven machine protection. Hence, the 141380-01 serves as a dependable spare for keeping isolated channels online. Its standardized plug-in format simplifies stock management across multiple sites. In addition, the dual-channel layout reduces spare-part inventory requirements. This module keeps signal isolation reliable and plant operations on schedule.
