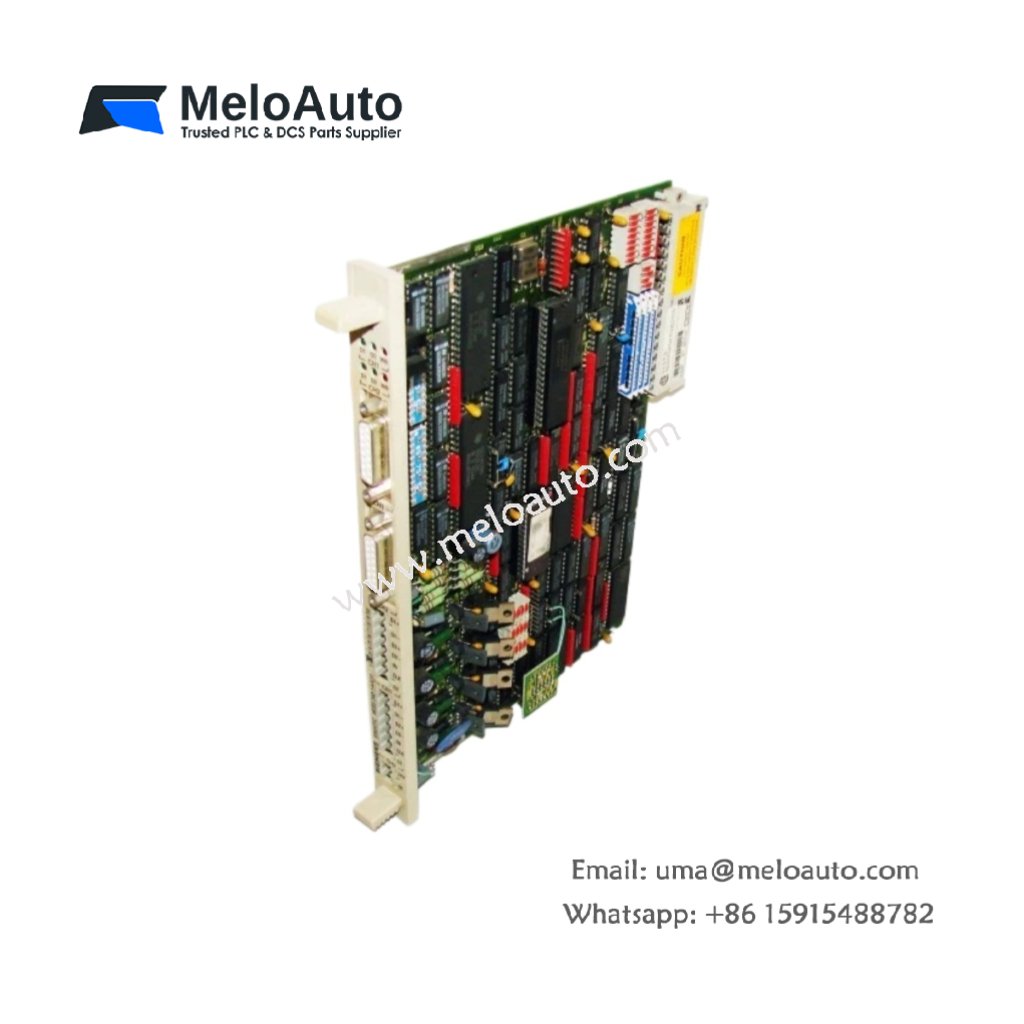

Siemens 6ES5240-1AA12 Counter Module

Product Overview

The Siemens 6ES5240-1AA12 counter module provides precise counting functionality for SIMATIC S5 programmable controllers. This module counts pulses from sensors and encoders for accurate position and speed monitoring. It plugs directly into standard S5 rack slots. The unit supports multiple counting modes for versatile application compatibility.

Technical Specifications

Parameter	Specification
Model Number	6ES5240-1AA12
Product Type	Counter Module
Brand	Siemens
Category	PLC Counter Modules
Compatibility	SIMATIC S5 Series
Number of Channels	2 counters
Counting Frequency	30 kHz (max)
Counting Range	0 to 999,999
Signal Input	24V DC
Modes	Up/down counting, pulse, frequency
Weight	Approximately 0.30 kg
Dimensions	233 mm x 25 mm x 158 mm
Operating Temperature	0°C to 60°C
Protection Class	IP20

Key Features and Benefits

Precise Counting Performance
The 6ES5240-1AA12 handles high-frequency pulses up to 30 kHz. This capability supports accurate position feedback and speed monitoring. Users benefit from reliable process measurements.

Versatile Counting Modes
The module supports multiple counting modes like up/down, pulse, and frequency. This flexibility accommodates various sensor and encoder interfaces. System integrators can standardize on a single module.

Simple Rack Integration
This counter module plugs directly into S5 rack slots for quick installation. It requires no external power supply. This simplicity reduces installation time and component costs.

Application and Use Cases

The Siemens 6ES5240-1AA12 suits conveyor length measurement, position feedback, and flow totalization. It also supports speed monitoring and event counting. Maintenance teams will find this module a reliable replacement for failed units.
