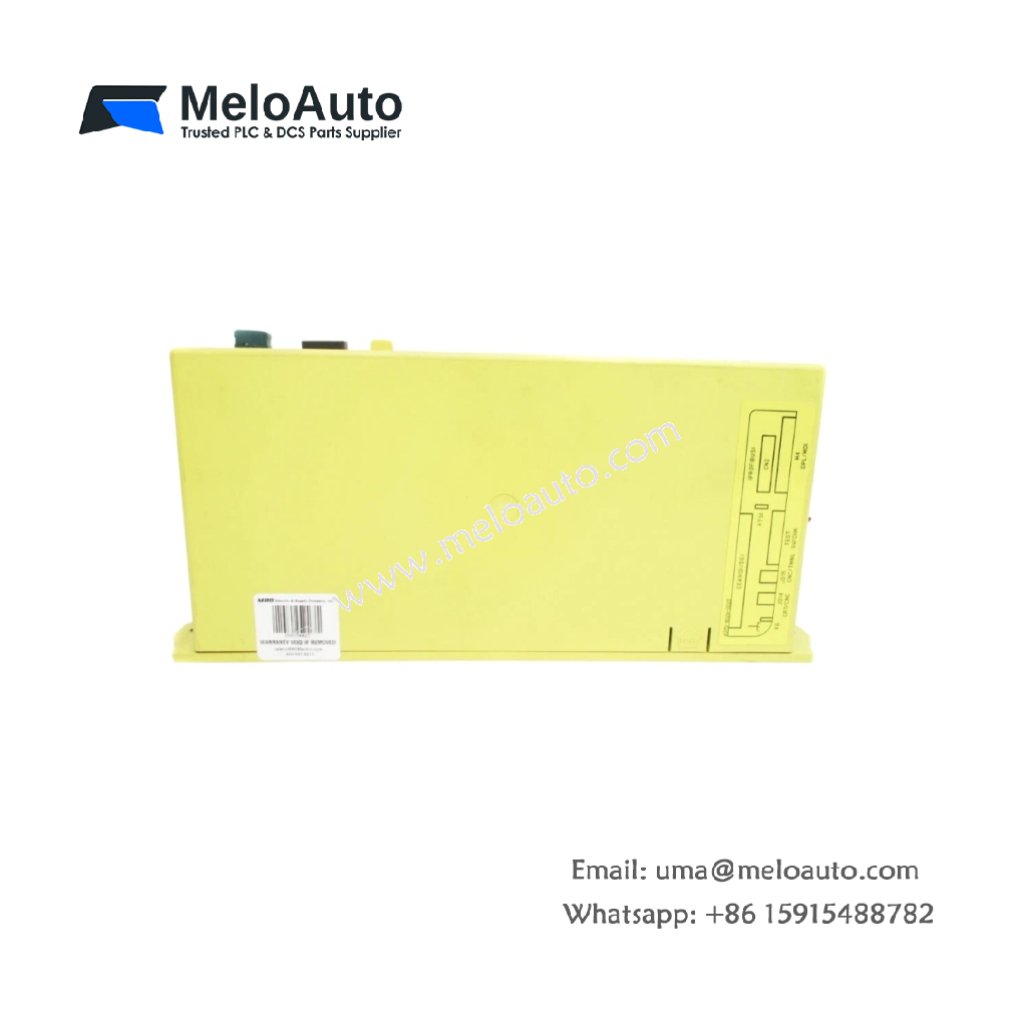

GE A02B-0166-B531 Power Mate Module

This module provides position control for single-axis servo applications. The GE A02B-0166-B531 integrates a power supply and servo amplifier in one unit. It measures 250 mm in width and 180 mm in height. This unit weighs approximately 3.2 kg for cabinet mounting.

Technical Specifications Table

Parameter	Value
Product Model	GE A02B-0166-B531
Brand	GE Fanuc
Category	Power Mate Module / Servo Controller
Number of Axes	1
Input Voltage	200-230 V AC, single-phase
Input Frequency	50/60 Hz
Rated Output Current	7.5 A RMS
Peak Output Current	15 A (for 1 second)
Control Method	Digital PWM with position feedback
Dimensions (W x H x D)	250 mm x 180 mm x 200 mm
Weight	3.2 kg
Communication Interface	1 x FANUC serial servo bus
Encoder Interface	1 x incremental encoder (2000-8000 PPR)
I/O Interface	8 inputs / 4 outputs (24 V DC)
Internal Components	1 x IGBT module, 1 x DSP, 1 x rectifier, 3 x capacitors
Energy Storage	3 x 2200 µF DC bus capacitors (total 6600 µF)
Regeneration	Built-in resistor (50 Ω, 100 W)
Protection Features	Overcurrent, overvoltage, undervoltage, overtemperature
Operating Temperature	0°C to 45°C

Internal Design and Integrated Power

This Power Mate module combines a rectifier and amplifier in one chassis. A DSP executes position and velocity control algorithms at 8 kHz. The GE A02B-0166-B531 accepts single-phase AC power directly from mains. Three 2200 µF capacitors store energy for peak torque demands. The built-in regeneration resistor dissipates energy during deceleration. Consequently, this unit provides complete servo control without external components.

Installation and Wiring Guide

First, mount this module vertically inside a ventilated control cabinet. Next, connect single-phase AC power to the L1 and L2 terminals. Then, wire the servo motor cables to the U, V, and W output terminals. Connect the encoder feedback cable to the CN2 port securely. Use shielded cables for all encoder and I/O signal wiring. The module requires at least 100 mm clearance for proper air circulation. LED indicators show power, ready, run, and fault status. This Power Mate module works with GE Fanuc servo motors and CNC systems. Always install an external circuit breaker for overcurrent protection.
