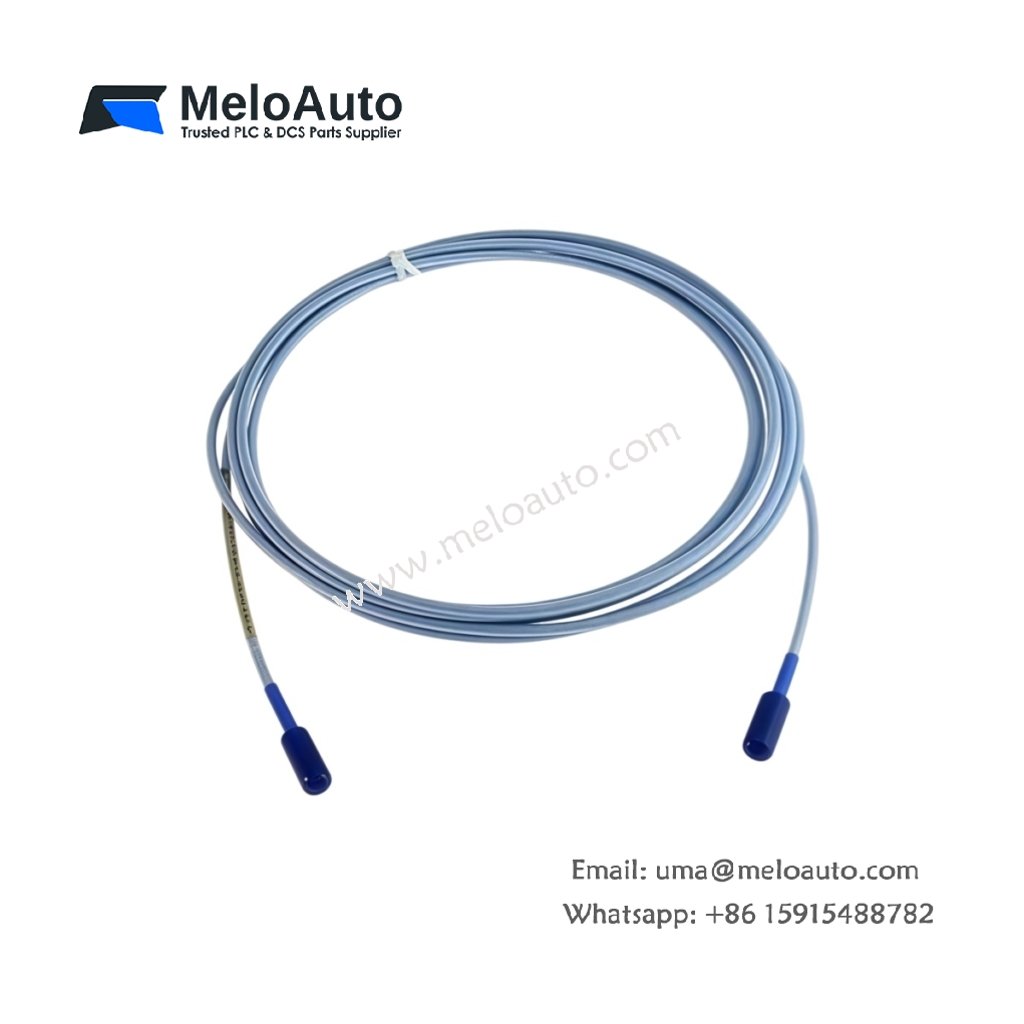

Bently Nevada 330130-080-10-CN | 3300 XL Extension Cable

Cable Overview

The 330130-080-10-CN serves as a standard extension cable for the 3300 XL 8 mm proximity transducer system. It bridges the gap between the probe and the Proximitor sensor, enabling reliable signal transmission. Therefore, this cable plays a critical role in machine protection and predictive maintenance.

Technical Specifications

Parameter	Specification
Model Number	330130
Cable Length Option	-080 = 8.0 meters (26.2 feet)
Cable Type Option	-10 = FluidLoc cable
Agency Approval	-CN = China specific approvals
Weight (Standard)	0.272 kg (0.6 lbs)
Weight (Armored)	0.824 kg
Operating Temperature	-52°C to +177°C
Output Resistance	50 Ω
Cable Capacitance	69.9 pF/m (21.3 pF/ft)
Minimum Bend Radius	25.4 mm (1.0 inch)
Connector Type	ClickLoc coaxial, gold-plated

Interface and Signal Integrity

The 330130-080-10-CN employs triaxial construction with FEP insulation. This design shields signals from electromagnetic interference generated by nearby rotating equipment. Additionally, the cable supports field wiring distances up to 305 meters. The connector uses a ClickLoc mechanism, which tightens by hand without tools.
