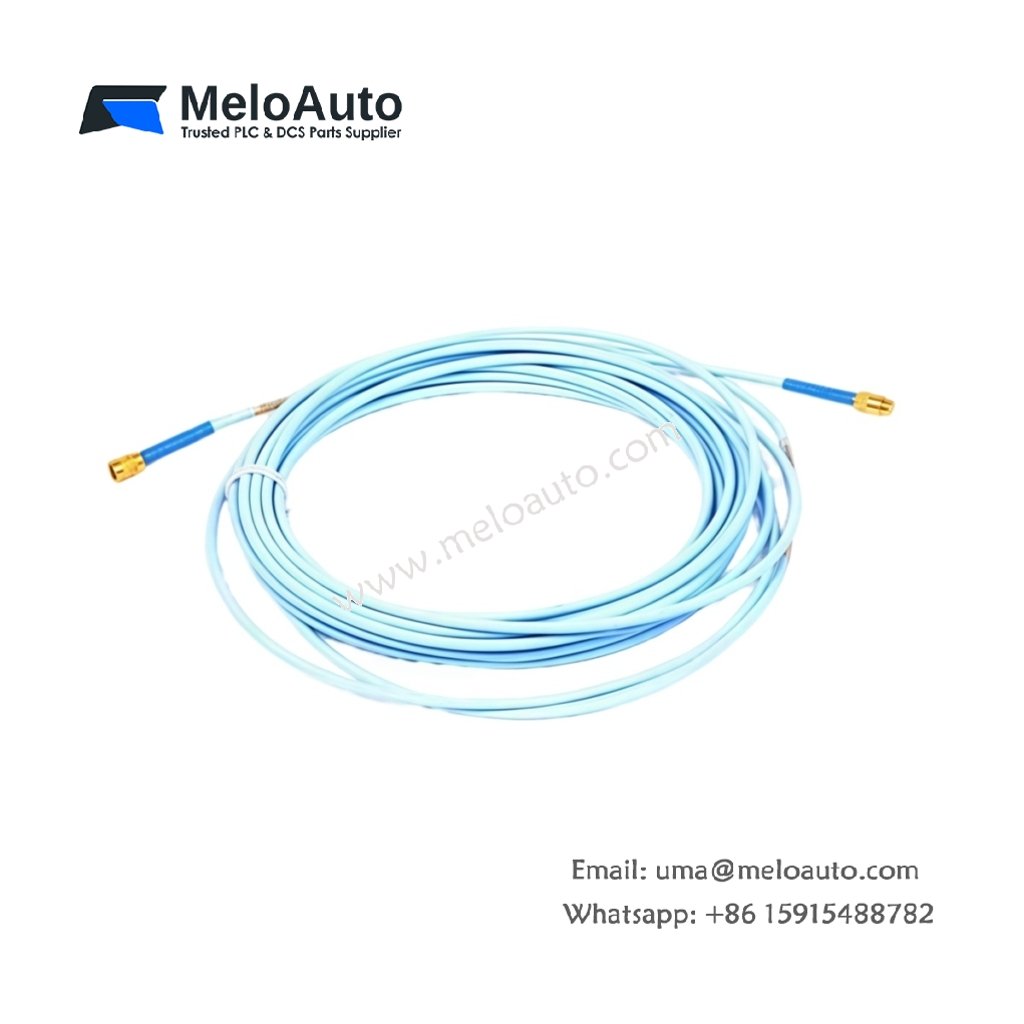

Bently Nevada 330130-080-02-CN | 3300 XL 8m Extension Cable

Core Specifications at a Glance

The 330130-080-02-CN belongs to the 3300 XL series of standard extension cables for 8 mm eddy current probe systems. It links the probe to the Proximitor sensor, completing a critical signal path. This model uses a 75 Ω triaxial construction with FEP insulation, maintaining signal integrity in harsh industrial environments.

Technical Parameter Table

Parameter	Specification
Model Code	330130-080-02-CN
Series	3300 XL
Cable Length	8.0 meters (26.2 feet)
Cable Type	75 Ω triaxial, FEP insulated
Connector	ClickLoc coaxial with protective cap
Weight	0.272 kg
Operating Temperature	-51°C to +177°C
Output Resistance	50 Ω
Cable Capacitance	69.9 pF/m (21.3 pF/ft)
Power Requirement	Passive component, no external supply
Agency Approval	CN approval for China market

Physical Design and Interface Features

The 330130-080-02-CN ships in a standard configuration with a non-armored jacket and connector protector. Its ClickLoc coaxial connector locks by hand, so technicians need no special tools. Consequently, field installation becomes faster and more reliable. Moreover, the FEP insulation performs well under high temperatures and chemical exposure.

Signal Transmission and System Compatibility

This cable preserves the impedance characteristics required by the 3300 XL system, ensuring low-loss eddy current signal transmission. It pairs with 8 mm probes and 3300 XL Proximitor sensors. However, users must match the 8-meter cable with a 1-meter probe to build a complete 9-meter system length.
