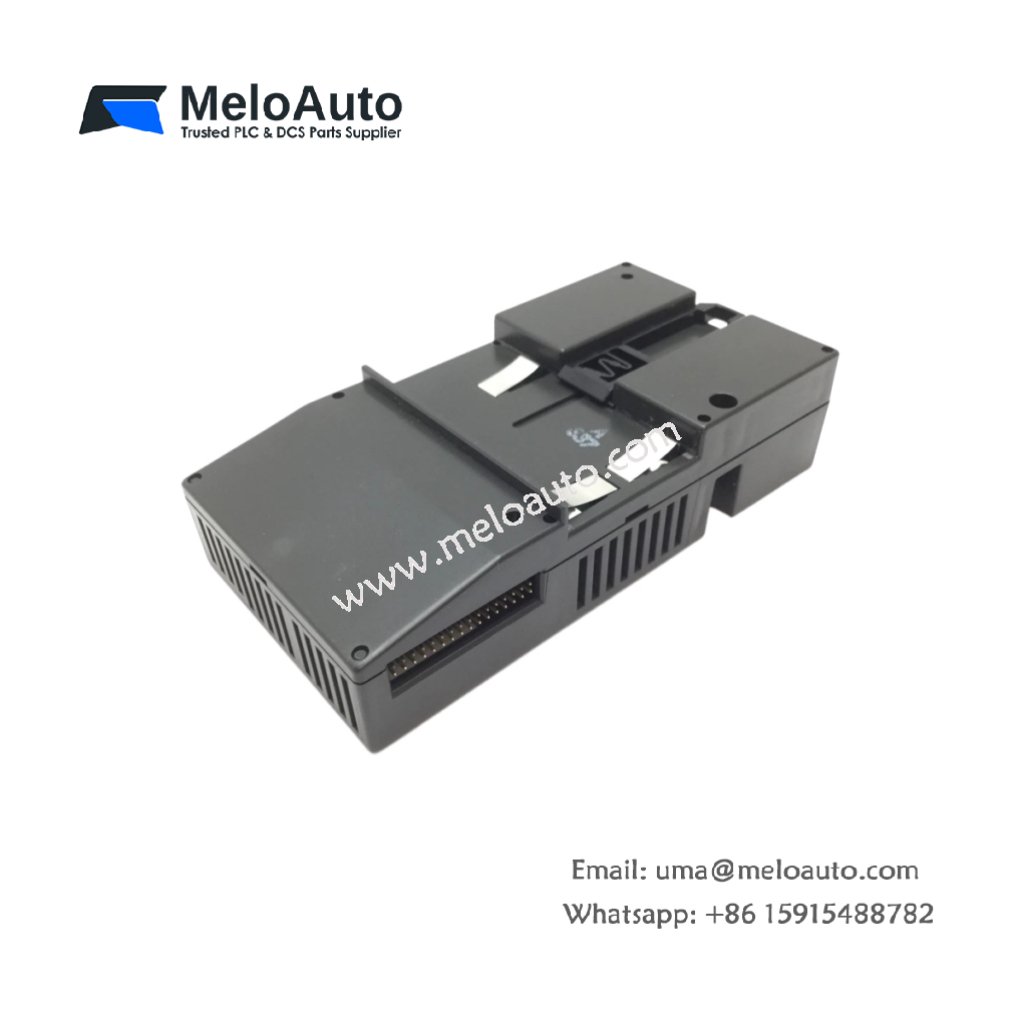

GE IC200ERM002A VersaMax PLC Expansion Receiver Module for Remote I/O

The IC200ERM002A receives I/O data from remote VersaMax expansion racks. This module connects to an expansion transmitter module via twisted-pair cable. You can rely on it for distributed I/O in large automation systems.

Key Technical Parameters

The table below lists all essential technical specifications for this expansion receiver module.

Physical Characteristics and Installation

This expansion receiver module weighs approximately 0.22 kg for DIN rail mounting. Its dimensions measure 110 mm x 70 mm x 50 mm for VersaMax systems. First, clip the IC200ERM002A onto a 35 mm DIN rail. Then, connect the twisted-pair cable to the 5-pin terminal. Finally, attach the module to the VersaMax bus connector. LED indicators show power status, link integrity, and fault conditions.

Communication Specifications

The IC200ERM002A uses shielded twisted-pair cable for noise-immune communication. This receiver operates at a fixed rate of 1.5 Mbps for reliable data exchange. The maximum cable length reaches 50 meters between transmitter and receiver. Each receiver module supports one expansion rack with up to 8 I/O modules. The proprietary VersaMax protocol handles all handshaking automatically.

Power Requirements and System Integration

This receiver module draws 150 mA from the 5V DC backplane supply. You must pair the IC200ERM002A with a compatible expansion transmitter module. The transmitter resides in the main rack while the receiver sits in the remote rack. Use this module for distributing I/O across large machinery or production lines. The compact size allows placement in crowded control cabinets.
