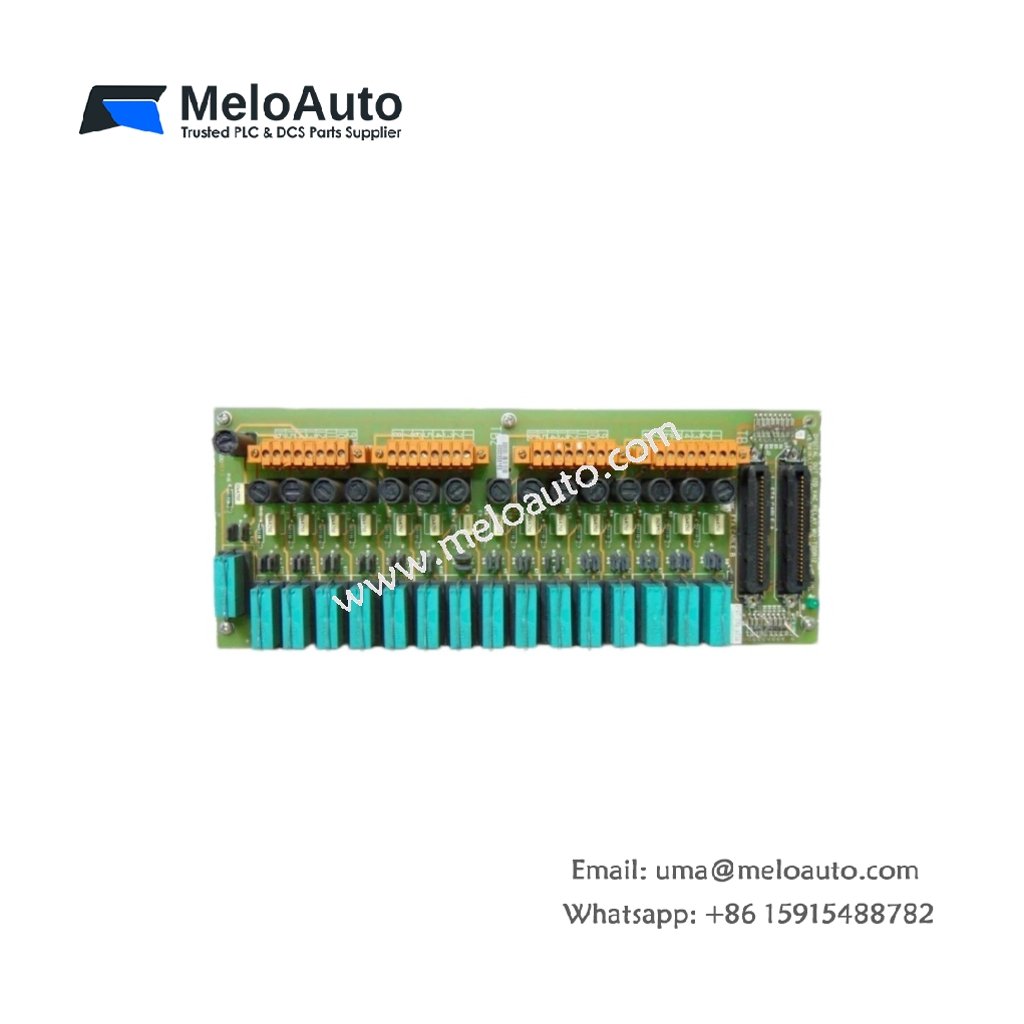

Honeywell MU-TDOD12 51304423-100 Digital Output Board

This board drives field actuators and annunciators through twelve independent digital output channels. Each channel sources 24 VDC at 1 A for controlling relays, solenoids, and indicator lamps. Engineers use this unit for discrete on-off control within Honeywell distributed control systems. The design emphasizes high density packaging to maximize output points per rack slot. Its rugged construction ensures reliable operation in process control environments.

Output Channel Architecture

The MU-TDOD12 51304423-100 provides twelve sourcing output channels with a common return bus. Each channel utilizes a power transistor switching element for fast, reliable operation. The module groups outputs into three banks of four for simplified wiring schemes. Every channel includes a dedicated LED indicator for immediate visual status verification. This grouping enables users to connect separate common returns for each bank.

Electrical Specifications and Load Capabilities

Each output channel delivers up to 1 A continuously with a peak current of 2 A for 10 milliseconds. Total module output power reaches 288 W under full load conditions. The output voltage range spans from 10 VDC to 32 VDC with a nominal 24 VDC rating. Each channel’s on-resistance measures less than 0.3 Ω for minimal heat generation. Furthermore, the board handles inductive loads with built-in flyback diode suppression.

Protection and Diagnostic Features

Every output channel includes short-circuit protection with automatic shutdown upon fault detection. Thermal protection deactivates outputs when internal temperatures exceed 85°C. The module provides overvoltage clamping for surge suppression on each output. Individual channel status feedback enables software-based diagnostics for every output point. These protective features prevent damage to both the module and connected field devices.

Physical Dimensions and Rack Mounting

The MU-TDOD12 51304423-100 measures 12.7 cm in width, 25.4 cm in height, and 20.3 cm in depth. It weighs approximately 1.2 kg, which ensures stable placement within the rack assembly. A steel housing with ventilated panels provides effective thermal management. The unit mounts directly into Honeywell TDC 3000 or standard 19-inch racks. Its front panel locates all output terminals and status indicators for convenient accessibility.

Connector Interfaces and Field Wiring

A 28-pin barrier-style terminal block handles all output wiring on the front face. This terminal block accepts wire gauges from 0.5 mm² to 2.5 mm² for secure terminations. Separate terminals provide output and return connections for each channel. The module includes dedicated grounding terminals for cable shield termination. Moreover, strain relief clamps protect field wiring from vibration-induced movement and disconnection.

Internal Components and Power Consumption

The printed circuit board contains twelve power transistors, twelve optocouplers, and twelve suppression diodes. A 220 µF electrolytic capacitor bank provides energy storage for transient ride-through. The module draws 150 mA from the 5 VDC backplane under full operational load. It also requires 250 mA from the external 24 VDC supply for output excitation. Optical isolation provides 1500 VAC separation between output circuits and the backplane logic.

Status Indication and Monitoring

Twelve front-panel green LEDs indicate the real-time status of every output channel. Additional LEDs display power, run, and communication status for overall board health. The module transmits diagnostic data to the controller during each scan cycle. This data includes load current readings and fault history logs. Consequently, maintenance personnel can identify problematic circuits quickly without external measurement tools.

Environmental Specifications and Compliance

The MU-TDOD12 51304423-100 operates reliably across temperatures from 0°C to 55°C. It withstands humidity levels up to 95% non-condensing without performance degradation. The module complies with IEC 61000-4-2 for electrostatic discharge immunity. Vibration tolerance meets IEC 60068-2-6 requirements for industrial environments. This robust construction suits process control, power generation, and petrochemical automation applications.
