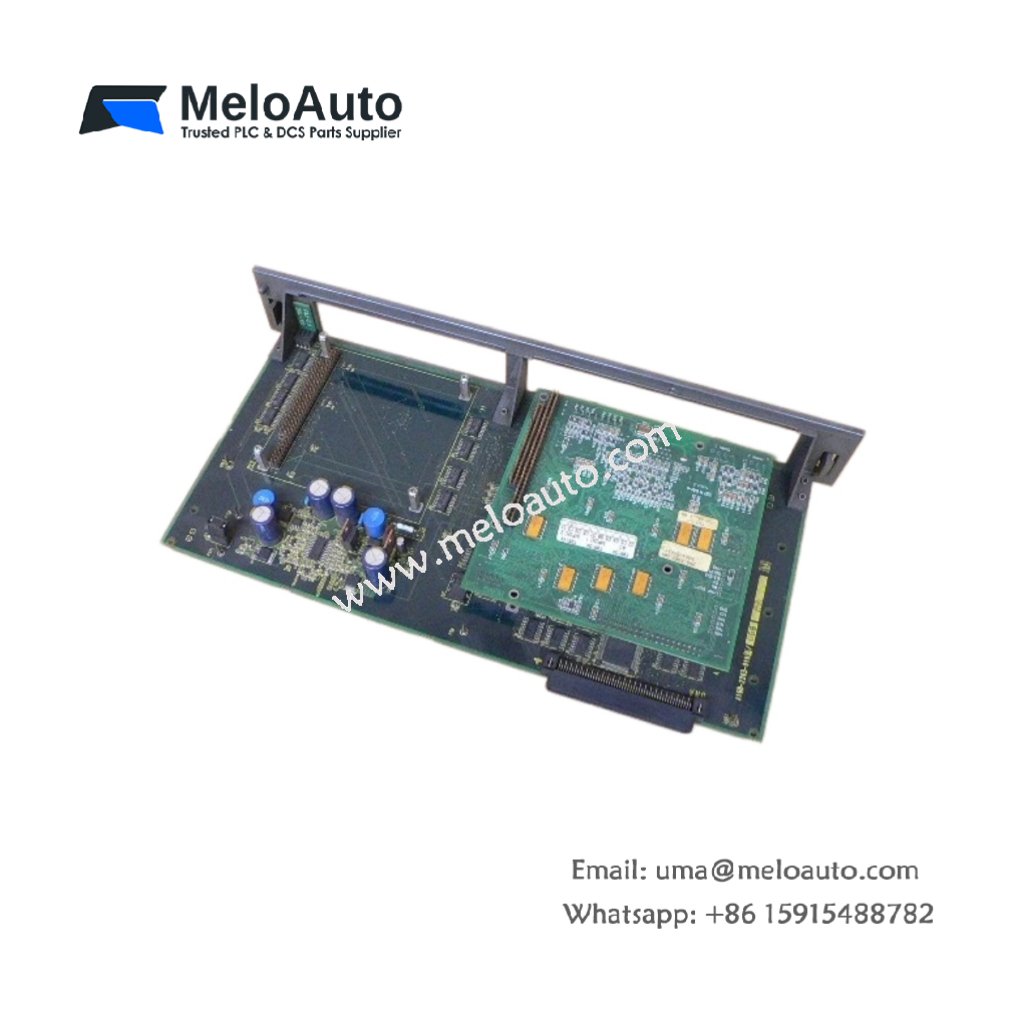

GE A16B-2203-0190/06B DeviceNet Board

The A16B-2203-0190/06B connects GE Fanuc CNC systems to DeviceNet industrial networks. This PC board enables communication with DeviceNet field devices and remote I/O. You can rely on it for seamless integration into Rockwell automation architectures.

Key Technical Parameters

The table below lists all essential technical specifications for this DeviceNet PC board.

Specification	Details
Part Number	A16B-2203-0190/06B
Product Type	DeviceNet PC Board
Compatibility	GE Fanuc Series CNC systems
Communication Protocol	DeviceNet (ODVA compliant)
Data Transfer Rate	125 kbps, 250 kbps, 500 kbps
Network Topology	Trunkline/dropline
Maximum Cable Length	500 m (125 kbps), 100 m (500 kbps)
Number of Nodes	Up to 64 devices
Isolation	500V DC (network to backplane)
Dimensions (W x H x D)	220 mm x 180 mm x 25 mm
Weight	Approx. 0.45 kg
Connector Type	5-pin open-style (DeviceNet)
Number of Components	10 ICs, 25 capacitors, 20 resistors
PCB Material	FR4 with conformal coating
Power Supply	5V DC from backplane + 24V DC external
Current Consumption	200 mA (logic) + 100 mA (network)
Operating Temperature	0°C to 55°C

Physical Characteristics and Installation

This DeviceNet PC board weighs approximately 0.45 kg for secure rack mounting. Its dimensions measure 220 mm x 180 mm x 25 mm for CNC controller cabinets. First, align the A16B-2203-0190/06B with the backplane guides. Then, press firmly until the board seats completely. Finally, secure the board using the top and bottom retaining screws. A conformal coating protects the PCB from moisture and dust.

Communication Specifications

The A16B-2203-0190/06B supports three selectable baud rates for network flexibility. You can choose 125 kbps, 250 kbps, or 500 kbps for your application. The maximum cable length reaches 500 meters at 125 kbps. At 500 kbps, the maximum length reduces to 100 meters. This board supports up to 64 DeviceNet nodes on a single network. 500V DC isolation protects the CNC backplane from network electrical noise.

Power Requirements and Compatibility

This board draws 200 mA from the 5V DC backplane for logic circuits. The DeviceNet transceiver requires an external 24V DC supply drawing 100 mA. The A16B-2203-0190/06B communicates with DeviceNet slaves such as VFDs, I/O blocks, and sensors. Use this board to integrate GE Fanuc CNCs into Rockwell ControlLogix or CompactLogix systems.
