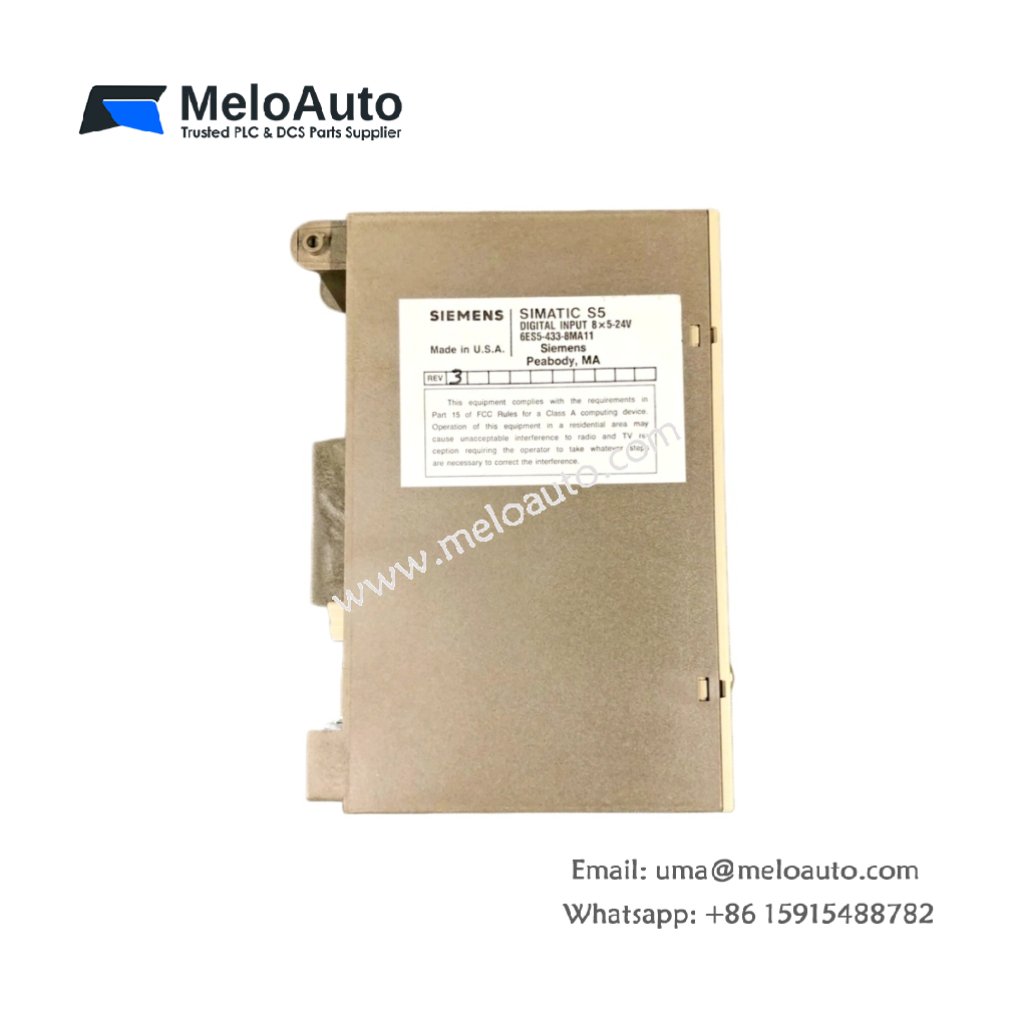

Siemens 6ES5433-8MA11 Digital Input Module

The 6ES5433-8MA11 reads eight digital input signals for SIMATIC S5 systems. This module monitors pushbuttons, limit switches, and proximity sensors. Its rectangular frame measures 232 millimeters in width. The module height reaches 210 millimeters exactly. Depth stays at 155 millimeters. You will find this unit weighs approximately 0.82 kilograms. Therefore, installation requires sliding the module into a standard S5 rack slot. One 20-pin front connector handles all field wiring connections.

Physical Layout and Connectors

The front connector accepts wires up to 16 AWG gauge. Each channel uses two terminals for signal and common return paths. A green LED illuminates when each input channel receives a valid signal. Two guide rails secure the module firmly in the rack. You can remove the front connector without disconnecting the module from the backplane.

Technical Specifications

Parameter	Specification
Module Width	232 mm
Module Height	210 mm
Module Depth	155 mm
Unit Weight	0.82 kg
Input Channels	8 (24V DC sinking)
Front Connector	1 x 20-pin (16 AWG)
Component Total	156 discrete parts
Input Voltage Range	20.4–28.8V DC
Input Current	7 mA per channel (typical)
On-State Threshold	>15V DC
Off-State Threshold	<5V DC
Response Time	2 ms (on/off)
Input Isolation	1500V (optocoupler)
Internal Energy Storage	470 µF capacitor bank
Operating Temperature	0°C to +55°C

Internal Design and Energy Storage

The 6ES5433-8MA11 contains exactly 156 discrete components onboard. A 470 microfarad capacitor bank filters the internal logic supply voltage. Eight optocouplers provide complete isolation for every input channel. Each optocoupler withstands 1500 volts between field and logic sides. A shift register chip serializes the input data for backplane transmission. The module also includes LED drivers for the 8 status indicators.

Operational Performance

This digital input module connects directly to eight field devices simultaneously. It accepts input voltages from 20.4 to 28.8 volts DC. Moreover, the module filters electrical noise with built-in debounce circuitry. You can mix different 24V DC sensor types without compatibility issues. The unit reports input state changes within 2 milliseconds. Eight green LEDs show real-time input status across the front panel. Consequently, you achieve reliable signal acquisition for SIMATIC S5 systems. Siemens designed this module for industrial automation platforms. Its conformal coating protects against humidity and light contamination.

In summary, the 6ES5433-8MA11 delivers dependable digital input functionality. Use this module for factory automation or conveyor systems. It provides 8 input points in a single slot design. Order this digital input module for your Siemens S5 system expansion.
