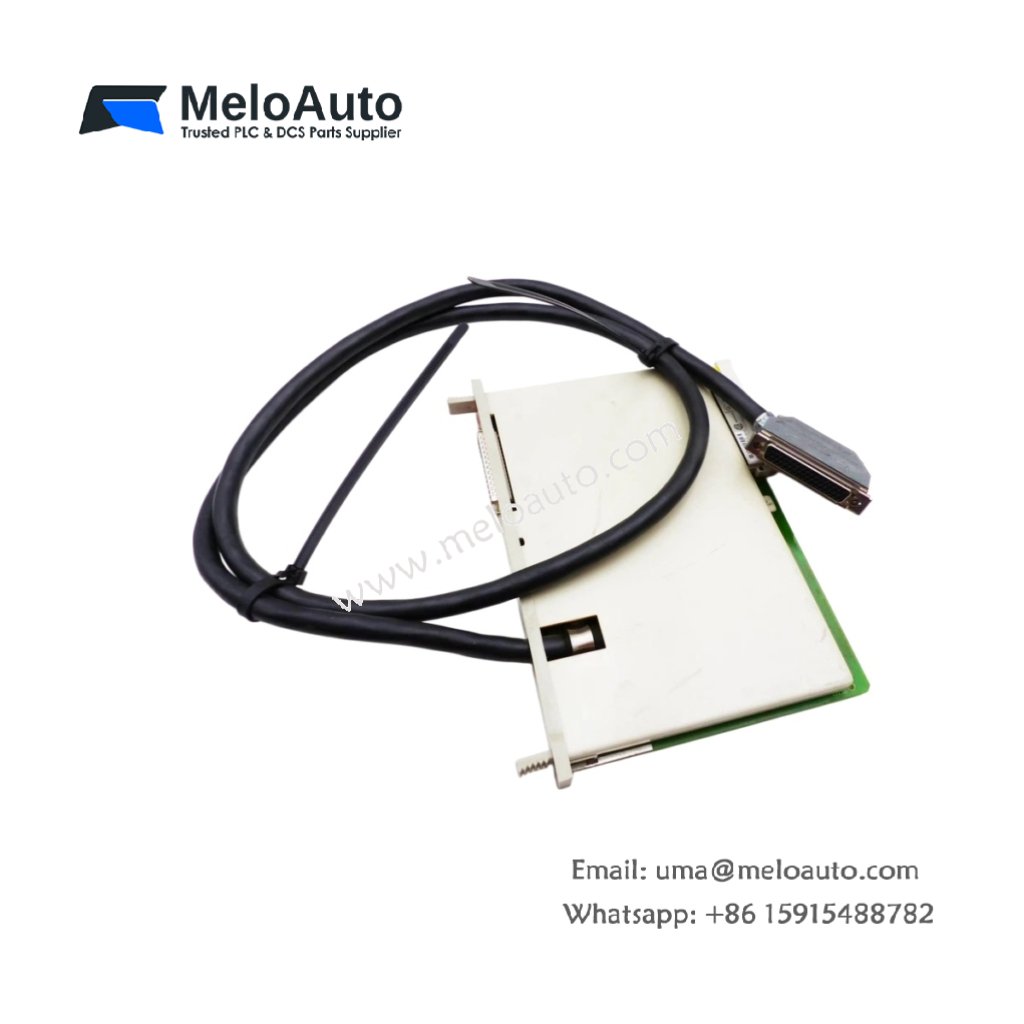

Siemens 6ES5312-5CA21 Interface Module

The 6ES5312-5CA21 serves as an interface module for SIMATIC S5 automation systems. This unit couples signals between the CPU and remote I/O stations. Its rectangular frame measures 232 millimeters in width. The module height reaches 210 millimeters exactly. Depth stays at 155 millimeters. You will find this unit weighs approximately 0.78 kilograms. Therefore, installation requires sliding the module into a standard S5 rack slot. One 20-pin front connector handles all wiring connections.

Physical Layout and Connectors

The front connector accepts wires up to 16 AWG gauge. A green LED indicates power present on the module. Two guide rails secure the module firmly in the rack. Four status LEDs show communication activity and error conditions. You can remove the front connector without disconnecting the module from the backplane.

Technical Specifications

Parameter	Specification
Module Width	232 mm
Module Height	210 mm
Module Depth	155 mm
Unit Weight	0.78 kg
Communication Channels	2 (bidirectional)
Front Connector	1 x 20-pin (16 AWG)
Component Total	212 discrete parts
Transmission Speed	187.5 kbps max
Cable Length	1000 meters max
Isolation Voltage	1500V (optocoupler)
Internal Energy Storage	560 µF capacitor bank
Protocol	SINEC L1 / AS-Interface
Operating Temperature	0°C to +55°C

Internal Design and Energy Storage

The 6ES5312-5CA21 contains exactly 212 discrete components onboard. A 560 microfarad capacitor bank filters the internal logic supply voltage. Dual communication controllers handle data transmission on each channel. The module includes galvanic isolation for all signal paths. LED indicators show receive and transmit activity. A dedicated processor manages the communication protocol stack.

Operational Performance

This interface module connects the S5 CPU to remote I/O stations. It transmits data over SINEC L1 networks. Moreover, the unit supports AS-Interface for sensor and actuator communication. You can place remote stations up to 1000 meters away. The module automatically retransmits data on communication errors. Four LEDs show activity and error status clearly. Consequently, you achieve reliable remote I/O distribution for S5 systems. Siemens designed this module for industrial networking applications. Its robust design suits factory environments.

In summary, the 6ES5312-5CA21 delivers reliable interface functionality. Use this module for remote I/O communication in S5 systems. It simplifies network connectivity without complex configuration. Order this interface module for your Siemens SIMATIC S5 system.
