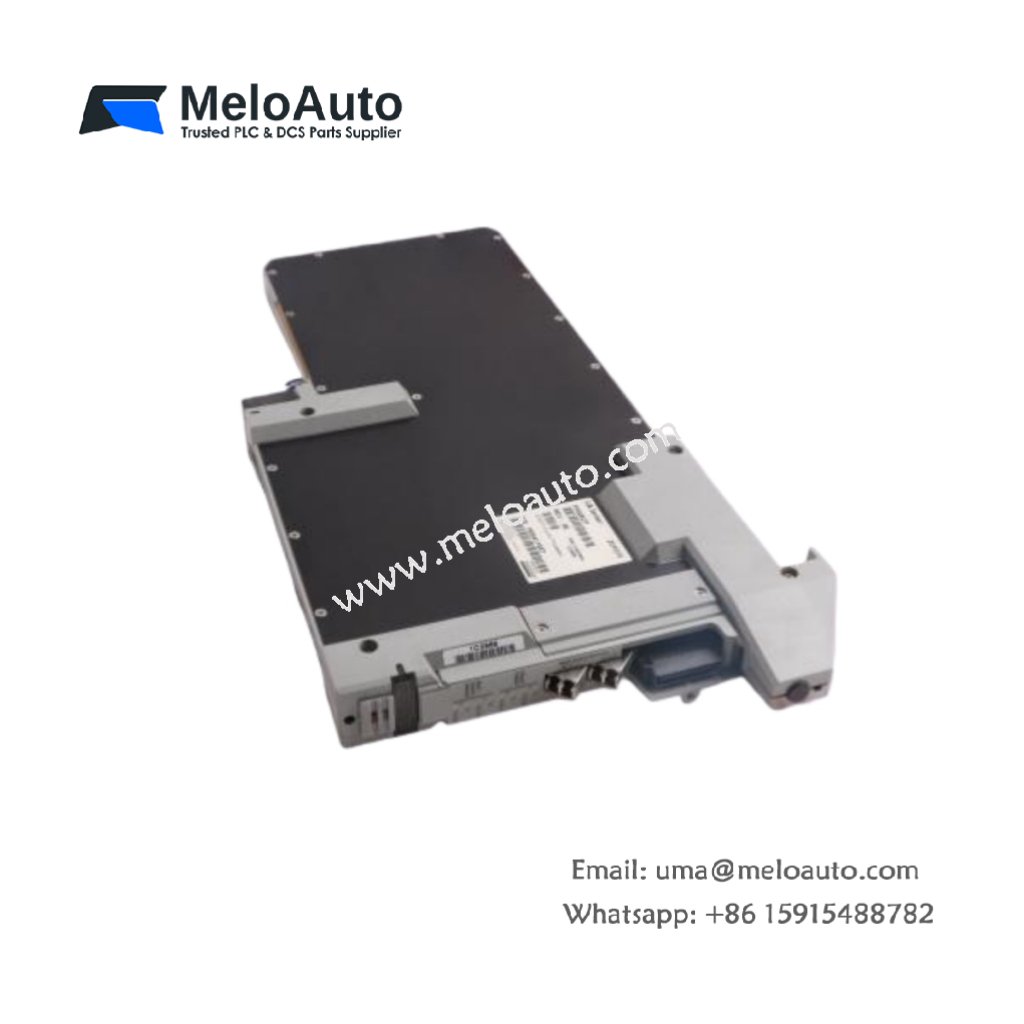

Foxboro P0926CP ZCP270 Control Processor

Overview

The Foxboro P0926CP ZCP270 is a fault-tolerant Z-Module Control Processor designed for use in the FOXBORO I/A Series. It delivers robust and reliable performance, supporting various industrial control applications such as PID control, logic control, sequential control, and motion control. With its advanced 32-bit RISC processor and floating-point unit, this module ensures exceptional processing power for demanding control systems. The ZCP270 connects seamlessly to Fieldbus Communication Modules (FCMs), enhancing its versatility and communication capability within Fieldbus and MESH control networks.

Key Features

High Performance Processor: The ZCP270 features a 32-bit RISC processor with a floating-point unit for powerful data processing and control capabilities.
Memory Options: The module offers up to 16 MB of memory and 8 MB of non-volatile memory, providing ample storage for control data and configurations.
Fieldbus Communication: Two communication ports enable efficient fieldbus communication with FCMs and other FOXBORO I/A Series devices.
Fault-Tolerant Configuration: The fault-tolerant design consists of two processor modules that communicate through a high-speed connection, ensuring continuous operation even during faults.
Cable Length Flexibility: The module supports up to 2 km (1.24 mi) of cable length to connect to an Ethernet switch, offering flexibility in installation.

Technical Specifications

Parameter	Specification
Product Type	Z-Module Control Processor 270 (ZCP270)
Processor Type	32-bit RISC processor with a floating-point unit
Memory	16 MB of memory and 8 MB of non-volatile memory
Communication Ports	Two ports for fieldbus communication and I/A Series communication
Fault-Tolerant Configuration	Yes, with two processor modules in adjacent slots
MESH Network Compatibility	Yes, supports MESH control network
Maximum Cable Length	2 km (1.24 mi) from ZCP270 to Ethernet switch
Communication Speed	100 Mbps Ethernet
Mounting	ZCP270 slots in 1×8 or 2×8 mounting structure
Environmental Ratings	Class G3 (Harsh environments)

Applications

The Foxboro P0926CP ZCP270 Control Processor is ideal for several industrial applications:

PID Control: Precisely manage industrial processes with continuous feedback.
Logic Control: Automate complex sequences and operations in various systems.
Sequential Control: Execute step-by-step control sequences for smooth operation.
Motion Control: Manage and optimize mechanical movements in automation systems.
Data Acquisition: Efficiently collect data from various sensors and devices for monitoring and analysis.
