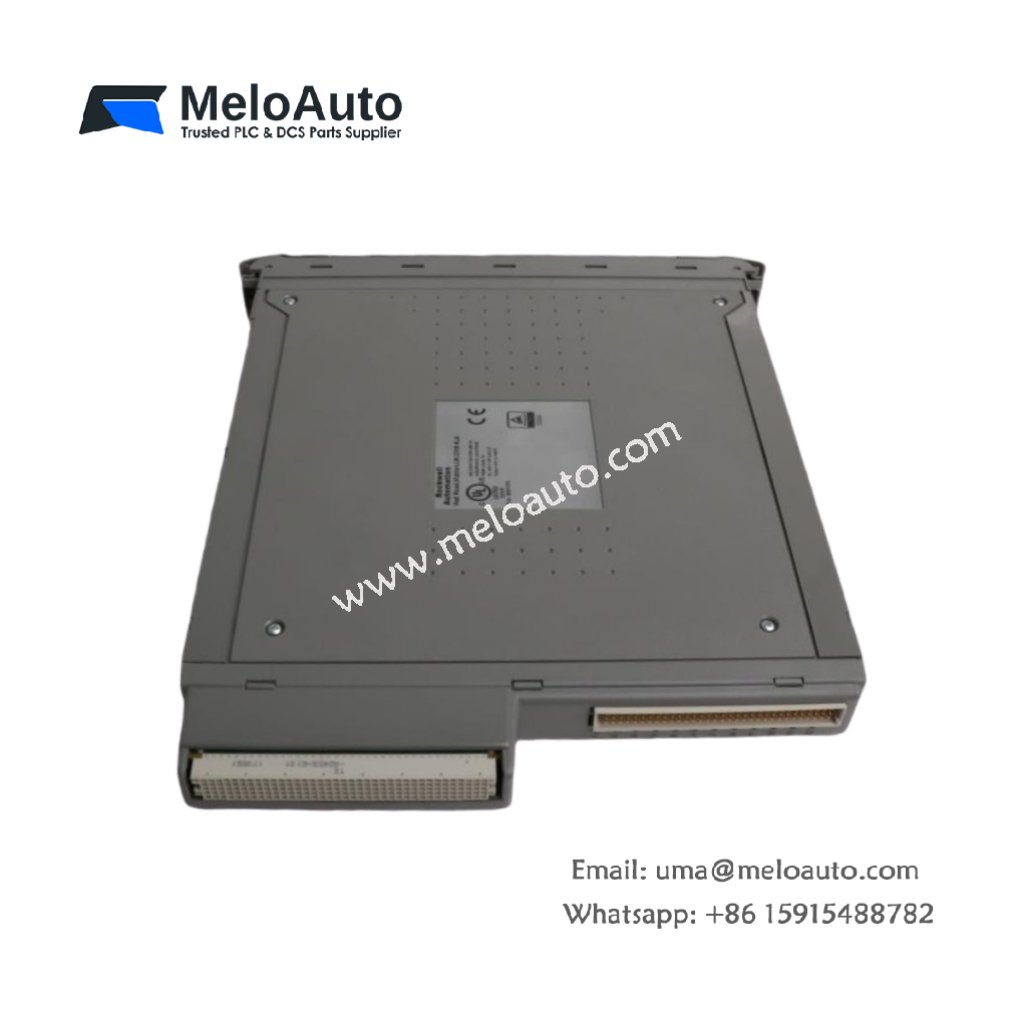

ICS TC21102 16-Channel Analog Input Module

The ICS TC21102 is a high-performance 16-channel analog input module specifically designed for ICS Triplex programmable logic controllers (PLCs). This module is ideal for demanding industrial applications such as machine control, process control, motion control, and various measurement tasks. With robust features and reliable performance, the TC21102 supports a wide range of applications, including temperature measurement, pressure measurement, flow measurement, and level measurement.

Key Features:

16-Channel Analog Input: Provides precise data acquisition from multiple sources.
Differential and Single-Ended Inputs: Supports both input types for enhanced flexibility.
Programmable Input Filters: Customizable filters for improved signal accuracy.
Built-in Calibration Circuitry: Ensures consistent and reliable measurements.
Channel-to-Ground Isolation: Protects the system from noise and interference.
Ruggedized Design: Built to withstand harsh industrial environments.
Easy Installation & Configuration: Simplifies setup and integration into control systems.

Applications:

Machine Control: Accurately monitor and control machine functions with real-time analog data.
Process Control: Ensure precise regulation of industrial processes with multiple input channels.
Motion Control: Interface with motion control systems for feedback and adjustments.
Test and Measurement: Ideal for testing applications requiring analog signal input.
Data Acquisition: Reliable data capture for analysis and reporting.
Temperature, Pressure, Flow, Level Measurement: Measure and monitor various physical parameters in industrial systems.

Technical Specifications

Specification	Value
Part Number	TC21102
Manufacturer	ICS
Product Type	16-Channel Analog Input Module
Input Channels	16
Input Type	Differential and Single-Ended
Input Range	0 to 10V DC, ±10V DC
Input Impedance	100MΩ
Accuracy	±0.1% of full scale
Input Filter	Programmable
Calibration	Built-in Calibration Circuitry
Isolation	Channel-to-Ground Isolation (1500V)
Operating Temperature	-40°C to 70°C
Storage Temperature	-40°C to 85°C
Power Consumption	0.3W (typical)
Weight	0.44 lbs (0.20 kg)
Dimensions	4.0 x 3.0 x 1.2 inches (101.6 x 76.2 x 30.5 mm)
Mounting Type	DIN Rail

Installation and Integration

The ICS TC21102 module is designed for easy installation and seamless integration with ICS Triplex PLCs. It supports both differential and single-ended analog inputs, making it suitable for various sensor types. Its programmable input filters help minimize noise and improve signal accuracy, while the built-in calibration circuitry ensures long-term reliability and precision.

Designed for rugged environments, the TC21102 features channel-to-ground isolation, providing protection from electrical noise and interference. This makes it an excellent choice for industrial environments that demand high accuracy and durability.
