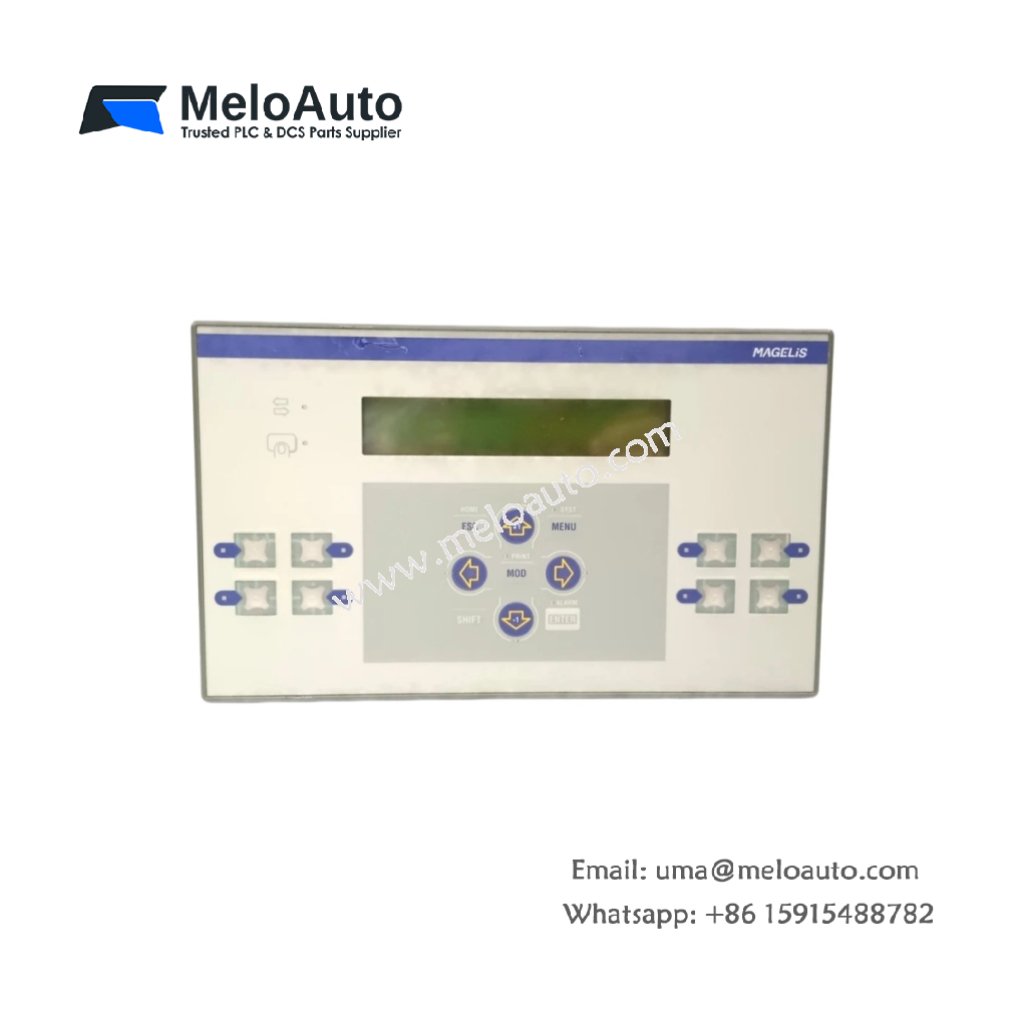

Schneider XBT P011010 | Compact Terminal HMI Operator Panel

The Schneider XBT P011010 provides a graphical operator interface for small machinery. This compact terminal displays machine status and accepts user commands. You can mount it directly on a control panel door. The unit replaces physical push buttons with a touch-sensitive screen.

Display and Touch Specifications

Parameter	Specification
Brand	Schneider Electric
Model	XBT P011010
Product Type	Compact Terminal (HMI)
Display Type	Monochrome LCD
Screen Size	3.8 inches diagonal
Resolution	240 x 80 pixels
Backlight	LED (yellow-green)
Touch Technology	Resistive analog
Touch Points	Single touch

The Schneider XBT P011010 shows up to 10 lines of text on its display. This compact terminal uses LED backlighting for consistent visibility. You can operate the screen in temperatures from 0°C to 50°C. The resistive touch layer responds to finger or stylus input.

Physical Dimensions and Weight

Parameter	Specification
Weight	0.35 kg (0.77 lbs)
Height	118 mm
Width	164 mm
Depth	41 mm
Cutout Size	131 mm x 89 mm
Panel Thickness	1.5 to 6 mm
Material	Polycarbonate housing

This compact terminal weighs only 0.35 kg for easy panel mounting. The unit measures 118 mm tall by 164 mm wide. Its depth reaches 41 mm behind the mounting surface. You can install the Schneider XBT P011010 with the included mounting clips.

Communication Interfaces

A single RS-232 serial port handles all communication tasks. This port uses a 9-pin female D-sub connector. You can connect the terminal to a Modbus or Uni-Telway network. The Schneider XBT P011010 supports baud rates up to 115,200 bps. A second port provides a pass-through connection for programming.

Energy Storage and Memory

An internal flash memory stores application screens and configuration data. This memory holds up to 64 KB of user-defined pages. The terminal does not contain any battery for data retention. Instead, flash technology retains all data without power. A small capacitor maintains the real-time clock for 72 hours during power loss. The Schneider XBT P011010 draws only 5 W from a 24 VDC supply.

Internal Components and Construction

The front panel includes nine tactile navigation buttons. These buttons surround the display for alternative operation. You will find 18 individual surface-mounted LEDs for backlighting. The circuit board contains approximately 92 discrete electronic components. All components meet RoHS environmental compliance standards.

Configuration Software and Use

You can program this terminal using Vijeo Designer Lite software. The software creates pages with text, simple graphics, and numeric fields. Transitioning to this HMI eliminates hard-wired indicator lights and selector switches. Use the Schneider XBT P011010 for packaging lines, conveyors, or small process skids. For best results, mount the terminal at eye level for easy reading.
