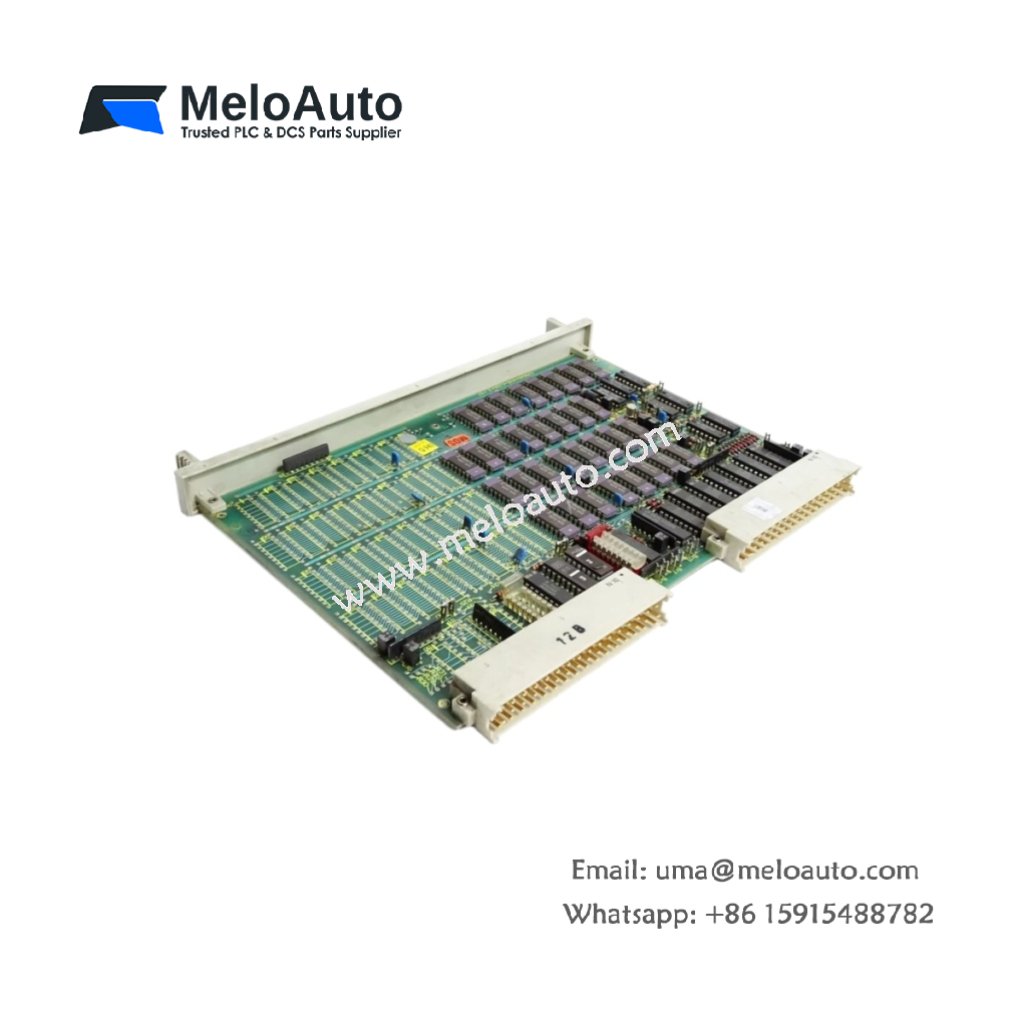

Siemens 6ES5340-3KA11 Memory Submodule

Why This Memory Submodule Extends Your S5 Storage

This memory submodule provides additional program storage for SIMATIC S5 CPUs. You get a compact Siemens 6ES5340-3KA11 for expanding user memory capacity. It uses EPROM technology for permanent, battery-free data retention. Therefore, your logic remains safe without any regular battery maintenance.

Technical Specifications and Physical Details

The Siemens 6ES5340-3KA11 plugs directly into the CPU’s dedicated submodule slot. It stores up to 4k words of user program or data blocks. This submodule requires no external power source for memory retention. Its dimensions measure approximately 65 mm in length and 40 mm in width. The unit weighs around 0.03 kg for simple handling. This memory card stores your logic in non-volatile EPROM cells. Consequently, you never worry about battery failure or unexpected data loss.

Below is the detailed breakdown of the hardware specifications.

Parameter	Specification
Product Model	6ES5340-3KA11
Product Type	Memory Submodule
Brand	Siemens
Family	SIMATIC S5
Memory Capacity	4k words
Memory Technology	EPROM (non-volatile)
Interface Type	CPU submodule slot
Dimensions (L x W)	Approx. 65 x 40 mm
Approx. Weight	0.03 kg
Power Requirement	None for retention
Energy Storage	EPROM cells
Component Count	Single card assembly

Installation and Usage Notes

This submodule inserts into the CPU compartment under the front cover. You must align the notch correctly before pushing it in. The Siemens 6ES5340-3KA11 requires an EPROM programmer for initial loading. Therefore, prepare your logic offline before inserting the submodule. Always handle this card by its plastic edges only. Static discharge from your fingers will permanently corrupt the stored program data.
