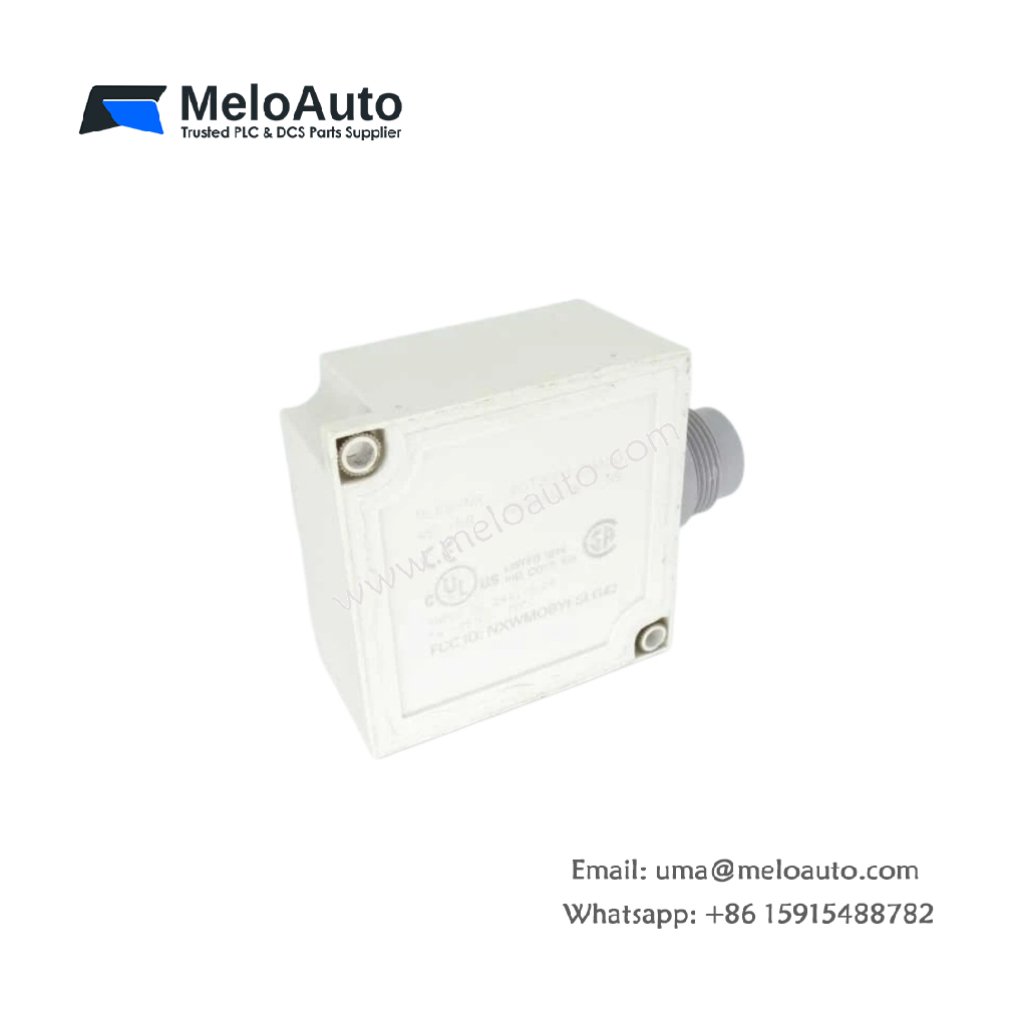

Siemens 6GT2001-0BA00 Antenna Module

Why This Antenna Module Enables Your RFID System

This antenna module reads and writes data to MOBY I transponders. You get a reliable Siemens 6GT2001-0BA00 for industrial identification applications. It generates a high-frequency field for contactless communication. Therefore, your system can track workpieces without physical contact or line-of-sight.

Technical Specifications and Physical Details

The Siemens 6GT2001-0BA00 operates at a frequency of 13.56 MHz. It provides a read range of up to 65 mm depending on the transponder type. This antenna module connects directly to a MOBY I processing unit via coaxial cable. Its dimensions measure approximately 75 mm in width and 25 mm in height. The unit weighs around 0.15 kg for simple panel mounting. This antenna stores no data or energy internally. Instead, the processing unit handles all encoding and decoding tasks. Consequently, you lose no identification data during an antenna swap.

Below is the detailed breakdown of the hardware specifications.

Parameter	Specification
Product Model	6GT2001-0BA00
Product Type	Antenna Module
Brand	Siemens
Family	MOBY I
Operating Frequency	13.56 MHz
Read Range	Up to 65 mm
Communication	Coaxial cable to processing unit
Dimensions (W x H)	Approx. 75 x 25 mm
Approx. Weight	0.15 kg
Energy Storage	None (passive radiating element)
Component Count	Single integrated unit

Installation and Usage Notes

This antenna mounts onto a machine frame or conveyor rail. You must keep metal surfaces at least 10 mm away from the front face. The Siemens 6GT2001-0BA00 requires a proper grounding connection. Therefore, use a short grounding wire to the nearest earth point. Always check the coaxial cable for damage before installation. A broken shield will reduce read range dramatically or cause complete failure.
