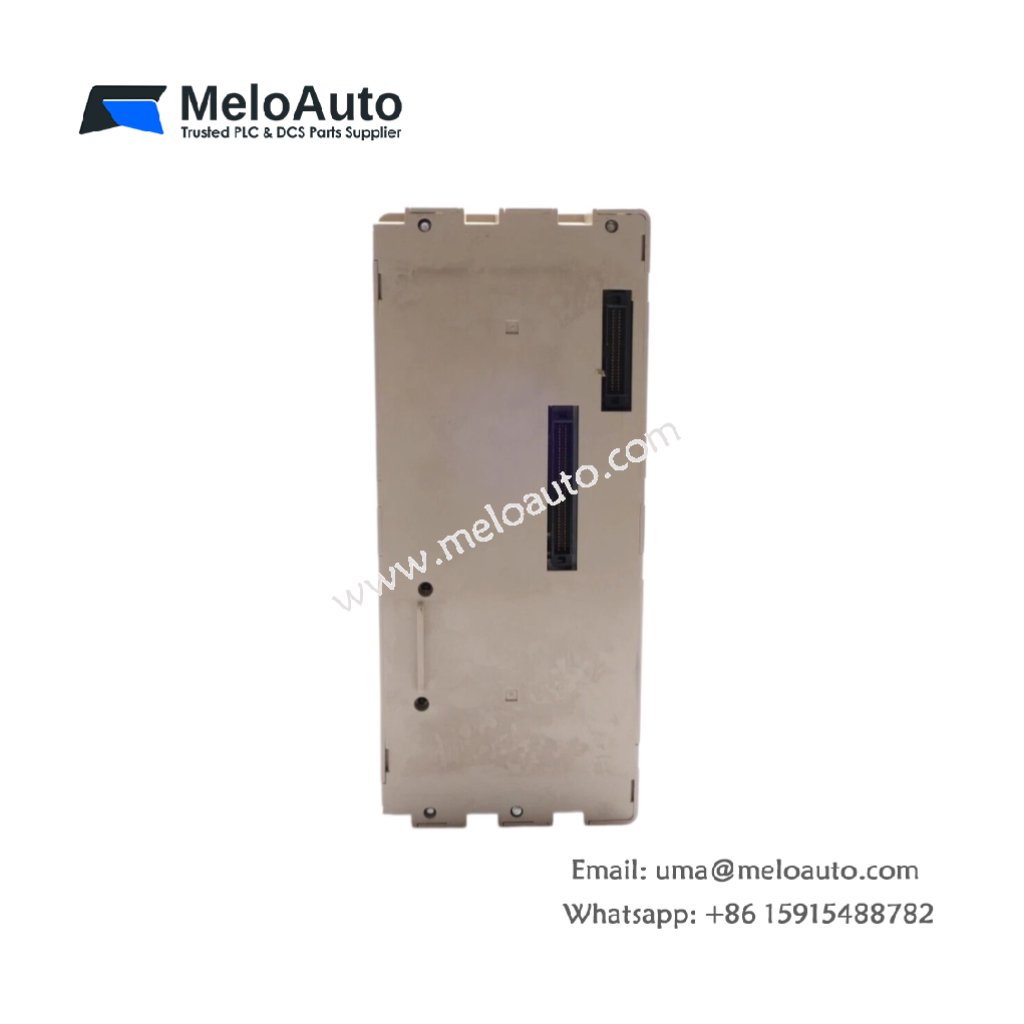

ABB 07 ZE 60 R101 – Central Unit for Compact Advant Controllers

The ABB 07 ZE 60 R101 serves as the main processing core for small Advant automation platforms. This central unit measures 190 mm in width and 140 mm in height. It has a depth of 70 mm, so it fits compact DIN rail enclosures easily. The unit weighs 0.85 kg, making mounting straightforward and secure.

Processor Architecture and Memory Configuration

This central unit contains three separate circuit boards inside its metal housing. One board holds the main CPU, while another manages I/O communication. The third board handles power regulation and system diagnostics. The ABB 07 ZE 60 R101 includes 4 MB of SRAM for program execution. It also provides 2 MB of flash memory for persistent data retention.

Energy Storage and Power Specifications

The unit stores 330 µF of capacitance across its primary voltage rails. This storage rides through supply interruptions lasting up to 12 milliseconds. The ABB 07 ZE 60 R101 draws 250 mA at 24V DC during full operation. Therefore, total power consumption reaches 6.0 watts under normal load. It includes a replaceable lithium battery for clock and memory backup.

Communication Interfaces and Expansion Ports

You will find one RS-232 port on the front panel of this central unit. This port connects to programming software for configuration and debugging. The ABB 07 ZE 60 R101 also includes one RS-485 port for Modbus RTU networking. A 30-pin expansion bus allows up to 16 I/O modules to attach. LED indicators on the front show power, run, and fault status clearly.

Environmental Tolerance and Mounting Details

You can mount this central unit horizontally inside any control cabinet. The device operates reliably from 0°C to 55°C ambient temperature. It tolerates humidity levels up to 90 percent without any condensation issues. The ABB 07 ZE 60 R101 withstands vibration up to 1g from 10 to 55 Hz. It supports online programming, so you can modify logic without stopping production.

Below is a complete summary of its technical specifications.

The ABB 07 ZE 60 R101 replaces older central units in Advant Controller 50 systems. You do not need any special adapters or additional configuration tools. This unit also supports battery-backed retentive memory for critical data protection. Consequently, it suits small-scale applications like packaging machines and conveyor systems.
