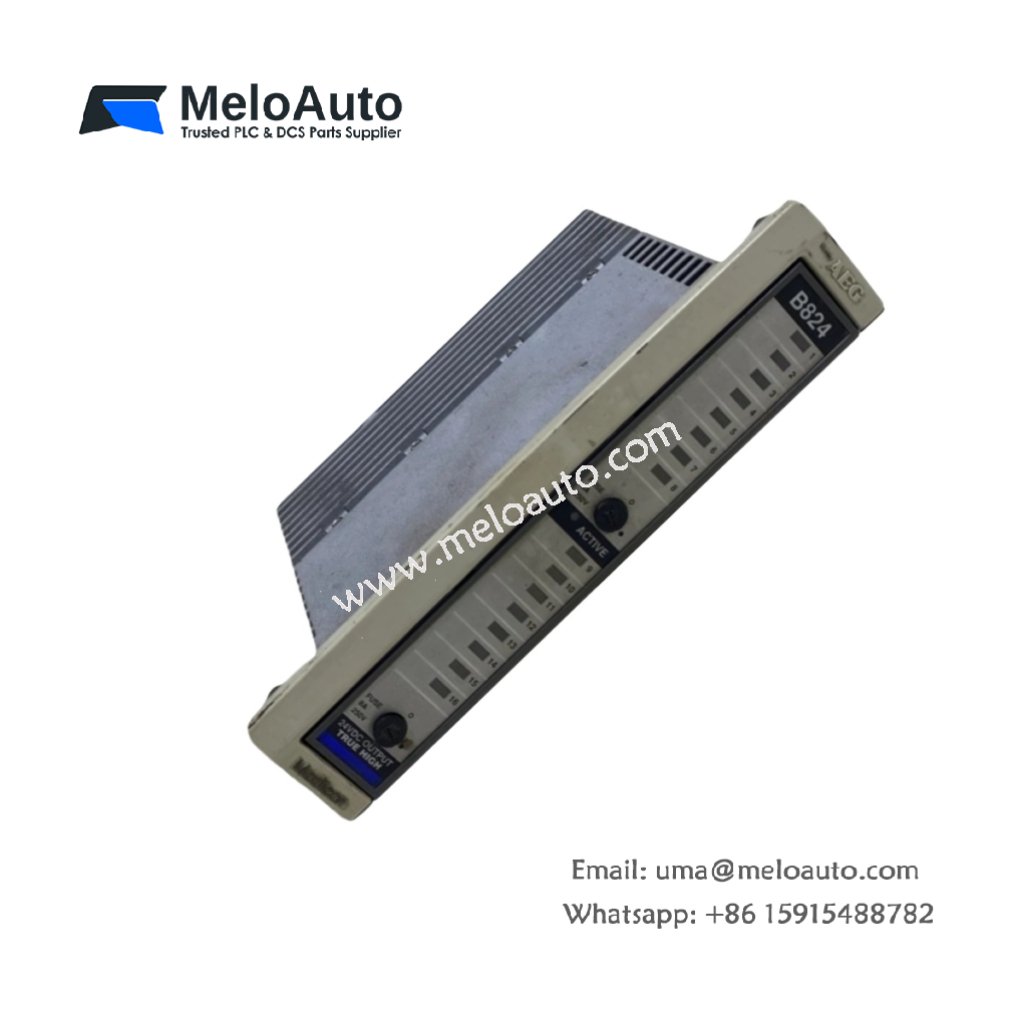

Schneider AS-B824-016 PLC Output Module

Overview

The Schneider AS-B824-016 is a highly efficient PLC output module designed for automation applications. It provides 16 output points and operates on a 24V DC power supply, making it ideal for various industrial control systems. With a maximum current capacity of 12A, this module ensures robust performance and flexibility. Its compact design allows easy integration into control panels, optimizing both space and functionality.

Key Features

Manufacturer: Schneider Electric
Model: AS-B824-016
Category: PLC Output Module
Voltage Rating: 24V DC
Current Rating: 12A
Number of Output Points: 16
Weight: 2.63 lbs (1.19 kg)
Space Efficiency: Fits in 1 slot of a control panel

Technical Specifications

Specification	Details
Manufacturer	Schneider Electric
Product Line	I/O Modules
Part Number	AS-B824-016
Product Type	PLC Output Module
Number of Output Points	16
Current Rating (Per Output)	12A
Voltage Rating	24 V DC
Maximum Current Per Module	12A
Maximum Current Per Group	6A
Space Required	1 Slot
Fuse	8A, 250 V
Maximum Operating Altitude	1000 meters above sea level
Weight	2.63 lbs (1.19 kg)
Dimensions	10 cm x 10 cm x 5 cm

Description

The Schneider AS-B824-016 serves as a versatile PLC output module, offering reliable and high-performance control over 16 output points. It is powered by a 24V DC supply, ensuring consistent operation across various automation tasks. Each output is capable of handling up to 12A, making this module suitable for controlling a wide range of industrial devices.

The module features a 6A current limitation per group, which helps manage multiple outputs efficiently and prevents overloading. With a compact footprint, the AS-B824-016 occupies only 1 slot in your control panel, simplifying installation and saving valuable space.

Weighing just 2.63 lbs (1.19 kg), this module is lightweight and easy to install, making it an ideal choice for space-constrained environments. Additionally, it includes a fuse rated at 8A, 250V, ensuring protection against electrical faults. Designed for altitudes up to 1000 meters, it operates reliably in a variety of industrial environments.

Advantages

Efficient Control: Supports up to 16 output points, each rated for 12A.
Space-saving Design: Fits into a single slot, making it easy to integrate.
Reliable Performance: Operates with a 24V DC power supply for dependable results.
Safety Features: Includes an 8A fuse for overcurrent protection.

Applications

The Schneider AS-B824-016 is ideal for automation systems, industrial control applications, and any setting requiring reliable output control. It is commonly used in manufacturing, robotics, and building management systems, where space efficiency and high current handling are essential.
