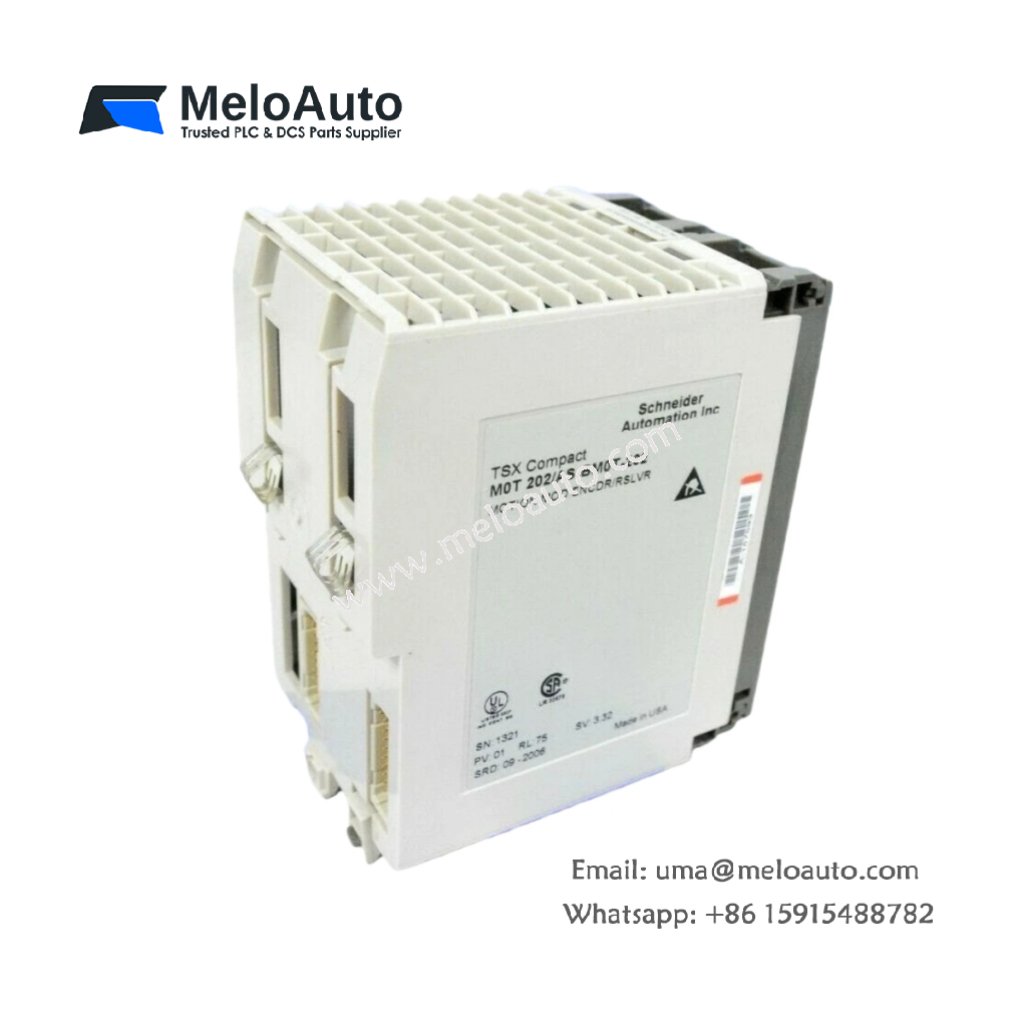

Schneider M0T 202/ASBM0T202 Motion Module

Overview

The Schneider M0T 202/ASBM0T202 is a versatile motion module designed to provide reliable control in industrial automation applications. This module is part of Schneider Electric’s extensive range of motion control solutions, which are engineered to optimize the performance of machinery and systems. The M0T 202/ASBM0T202 module offers exceptional flexibility and precision for controlling motors and actuators in demanding environments.

Key Features

• Manufacturer: Schneider Electric
• Model: M0T 202/ASBM0T202
• Product Line: Motion Control Modules
• Category: Motion Module
• Type: Motion Control
• Power Supply: 24V DC
• Control Type: Closed-loop control
• Dimensions: 160mm x 100mm x 35mm
• Weight: 0.5 kg
• Communication Interface: Supports standard fieldbus protocols
• Operating Temperature: 0°C to 60°C (32°F to 140°F)
• Mounting: DIN rail mountable
• Certification: CE, UL listed

Technical Specifications

Description

The Schneider M0T 202/ASBM0T202 motion module is engineered to enhance system performance by offering accurate motor control. It operates with a 24V DC power supply, ensuring compatibility with a wide range of industrial equipment. This module uses closed-loop control, allowing for precise and efficient operation in motion-driven applications. It supports fieldbus protocols, enabling seamless integration into various automation systems for real-time data communication.

The M0T 202/ASBM0T202 is designed to be compact, measuring 160mm x 100mm x 35mm, and weighing just 0.5 kg. This makes it easy to integrate into existing systems with limited space. The module is also DIN rail mountable, which simplifies installation and reduces setup time. Operating within a temperature range of 0°C to 60°C, it provides reliable performance even in challenging environmental conditions.

Applications

The Schneider M0T 202/ASBM0T202 motion module is ideal for various industrial applications, including:

• Conveyor systems
• Packaging machinery
• Robotic systems
• Automated manufacturing lines
• Textile machinery
• HVAC control systems

This motion module excels in environments where precise motor control and system integration are critical for performance and reliability.

Advantages

• Compact and Efficient: Fits easily in tight spaces, reducing installation complexity.
• Precise Control: Provides accurate, real-time motor control for industrial processes.
• Flexible Integration: Supports fieldbus protocols for easy system communication.
• Durable Design: Operates in a wide range of temperatures, ensuring stability in harsh environments.
