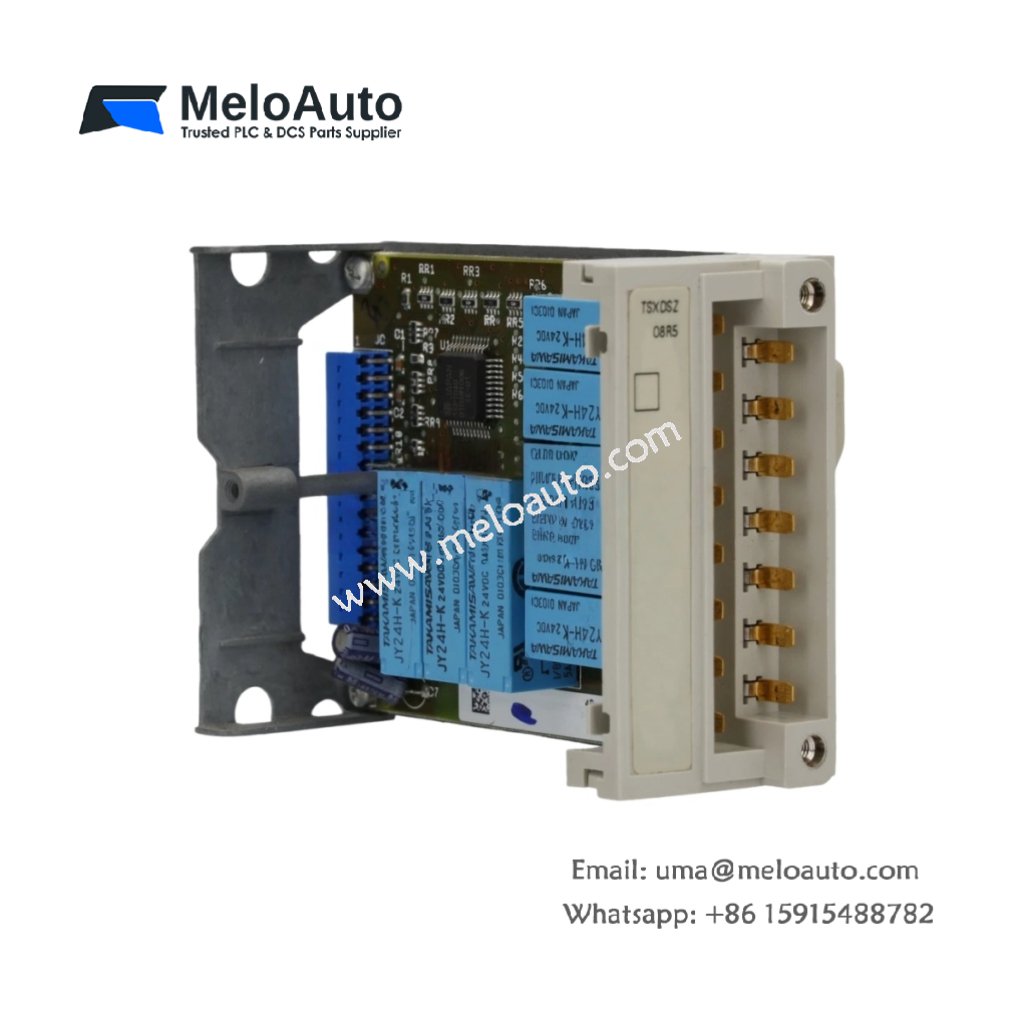

Schneider TSXDSZ08R5 Relay Discrete Output Module

Overview of the TSXDSZ08R5 Module

The Schneider TSXDSZ08R5 is a highly efficient relay discrete output module designed for the Modicon TSX Micro automation platform. It provides reliable performance in industrial applications, ensuring efficient control. With advanced features and a durable design, this module meets the demands of various operational environments.

Key Features

Product Type: Relay Discrete Output Module
Compatible Range: Modicon TSX Micro automation platform
Discrete Output Channels: 8
Terminal Type: Screw terminal block
Contact Type: Normally Open (NO)
Voltage Range: 19…264 V AC, 10…34 V DC

The TSXDSZ08R5 module includes 8 discrete output channels, each with normally open (NO) relay contacts. It supports a wide voltage range, ensuring it can be used in diverse industrial systems. Additionally, the module features a screw terminal block, making installation quick and convenient.

Technical Specifications

Parameter	Value
Output Voltage Range	19…264 V AC, 10…34 V DC
Thermal Current	3 A
Power Consumption (VA)	50 VA at 24 V AC-12 resistive, 110 VA at 48 V AC-12 resistive, 220 VA at 110 V AC-12 resistive, 220 VA at 220 V AC-12 resistive
Power Consumption (W)	24 W at 24 V AC-15 inductive, 24 W at 48 V AC-15 inductive, 220 W at 220 V AC-15 inductive, 110 W at 110 V AC-15 inductive
Response Time	< 10 ms
Current Consumption	85 mA
Power Dissipation	1.5 W
Isolation Voltage	1500 V (1s)
Insulation Resistance	≥ 10 MΩ

With a thermal current rating of 3 A, the TSXDSZ08R5 efficiently manages power across multiple AC and DC voltage ranges. Its response time of less than 10 ms ensures fast, accurate control. Furthermore, the module offers strong isolation capabilities with a 1500 V isolation voltage, protecting your system from electrical noise and damage.

Benefits

Versatile Voltage Compatibility: It supports both AC and DC input voltages, giving you greater flexibility when designing your systems.
Optimized Power Efficiency: The module consumes less power while maintaining high performance. Its quick response time ensures better control and reduced system delays.
Durable and Safe: Its robust insulation and high resistance to environmental factors guarantee a long operational lifespan, even in harsh conditions.
Simple Installation: The screw terminal block design simplifies wiring, reducing installation time and complexity.

Manufacturer and Model

Brand: Schneider Electric
Model: TSXDSZ08R5
Category: Relay Discrete Output Module

As part of the Schneider Electric Modicon TSX Micro series, the TSXDSZ08R5 is built for industrial automation tasks that require precision, reliability, and long-lasting performance.
