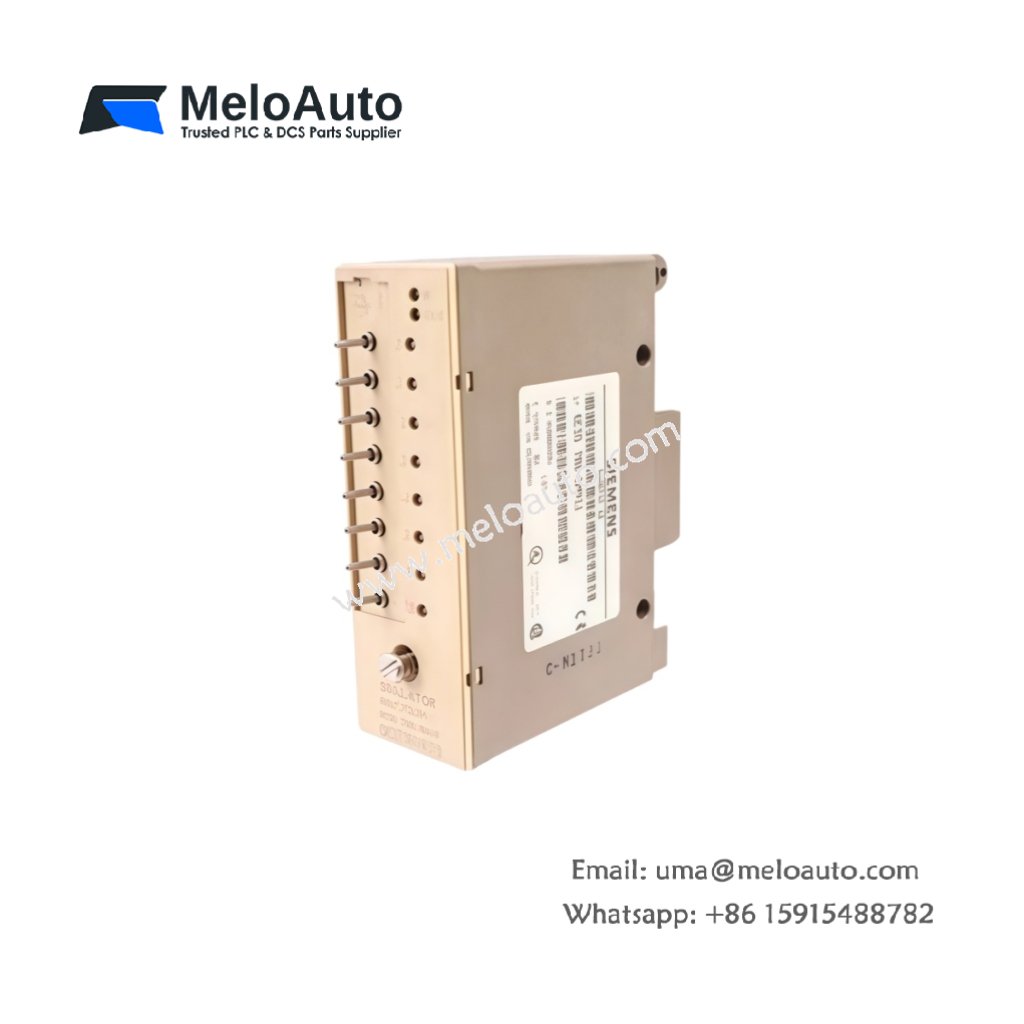

Siemens 6ES5788-8MA11 Simulation Module

Technical Overview

The Siemens 6ES5788-8MA11 is a simulation module designed for the SIMATIC S5 programmable controller series. This unit simulates digital input signals and displays output signals, making it an essential tool for program testing and troubleshooting without connecting real field devices . You can select the simulation type (input or output) using a switch on the rear of the module, with two LEDs on the front panel indicating the current configuration . The module inserts into any standard S5 bus unit slot, replacing digital modules without requiring adjustments to the coding element on the bus unit .

The 6ES5788-8MA11 provides 8 channels for simulating digital signals. Users can simulate 24V DC input signals and verify the corresponding output states of the PLC program. This module is particularly valuable for commissioning new systems, testing modified programs, and training personnel in a safe, controlled environment. It allows engineers to perform comprehensive logic validation and fault simulation without disrupting live production processes.

Technical Specifications

Parameter	Specification
Manufacturer	Siemens
Model Number	6ES5788-8MA11
Product Type	Simulation Module / Simulator Module
System Compatibility	SIMATIC S5-115U, S5-135U, S5-155U
Simulation Channels	8 digital input points
Signal Type	24V DC (internal simulation via switch)
Configuration	DIP switch on rear panel (input/output selection)
Status Indication	8 LEDs for channel status; 2 LEDs for module mode
Mounting	1 standard slot in S5 bus unit
Bus Interface	S5 backplane bus (K-Bus/C-Bus)
Power Supply	5V DC from backplane
Weight	0.20 – 0.27 kg
Operating Temperature	0°C to +55°C
Storage Temperature	-20°C to +70°C
Country of Origin	Germany

Key Features

8-Channel Signal Simulation – The Siemens 6ES5788-8MA11 provides eight independent simulation points. Each channel corresponds to a digital input, allowing you to generate test signals without connecting field sensors.

Manual DIP Switch Operation – A bank of eight DIP switches lets you independently set each simulated input to “0” or “1”. This manual control simplifies program testing and enables rapid logic validation .

Visual Status Indication – Each channel features a dedicated LED, providing real-time visual feedback on the current simulation state (ON/OFF). This clear indication helps prevent operational errors during testing .

Easy Installation – The module inserts directly into any standard S5 bus unit slot. It requires no rewiring of existing terminal blocks, as the module has no electrical connection to the terminal block .

Wide S5 Compatibility – This module works with S5-115U, S5-135U, and S5-155U systems, providing a versatile solution for troubleshooting and maintenance across multiple PLC platforms .

Troubleshooting Capability – You can use this module to quickly isolate faults in digital I/O modules. Replacing a suspected faulty module with the simulator helps determine if the original module is defective .

Applications

The Siemens 6ES5788-8MA11 excels in offline program testing, fault simulation, technician training, and system commissioning within SIMATIC S5-based automation systems. It is ideal for manufacturing, process control, and legacy system maintenance environments.
