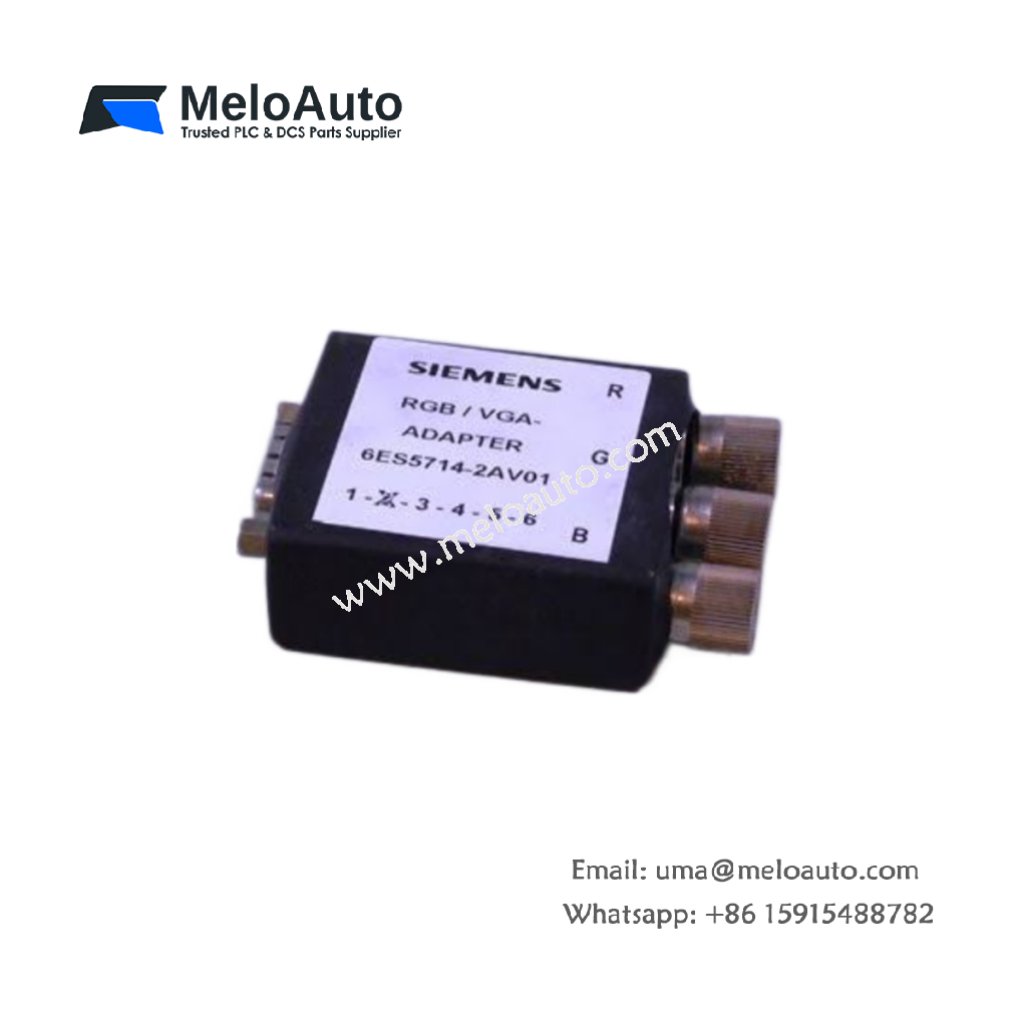

Siemens 6ES5714-2AV01 RGB/VGA Adapter

Technical Overview

The Siemens 6ES5714-2AV01 is a dedicated RGB/VGA adapter cable designed for the SIMATIC S5 programmable controller series . This cable provides a direct connection between the SIMATIC S5 CPU and standard VGA monitors, enabling clear display of process data and control interfaces . It supports resolutions up to 1280×1024 pixels . The adapter features a 15-pin D-Sub connector, ensuring compatibility with a wide range of monitors . This cable is an essential tool for system visualization and diagnostics, particularly in scenarios requiring integration with modern display technologies.

Technical Specifications

Key Features

Clear Digital Display – The Siemens 6ES5714-2AV01 enables you to output diagnostic and process data to a standard VGA monitor, eliminating the need for specialized terminals and improving readability . This feature is essential for modernizing S5 system visualization .

Seamless System Integration – This RGB/VGA cable provides a direct connection between the S5 CPU and a VGA monitor. It supports resolutions up to 1280×1024 pixels, ensuring clear and detailed display of system information .

Simple Data Transmission – The cable carries analog RGB signals and synchronization pulses (H and V) to the monitor. This ensures the accurate and timely display of visual data .

Robust Construction – The durable cable and secure connectors provide a reliable link between the S5 system and the display, suitable for industrial environments.

Applications

The Siemens 6ES5714-2AV01 is ideal for visualizing SIMATIC S5 process data, enabling remote monitoring and diagnostics . It is particularly valuable for upgrading or maintaining legacy S5 systems in manufacturing and process control environments requiring modern display integration.
