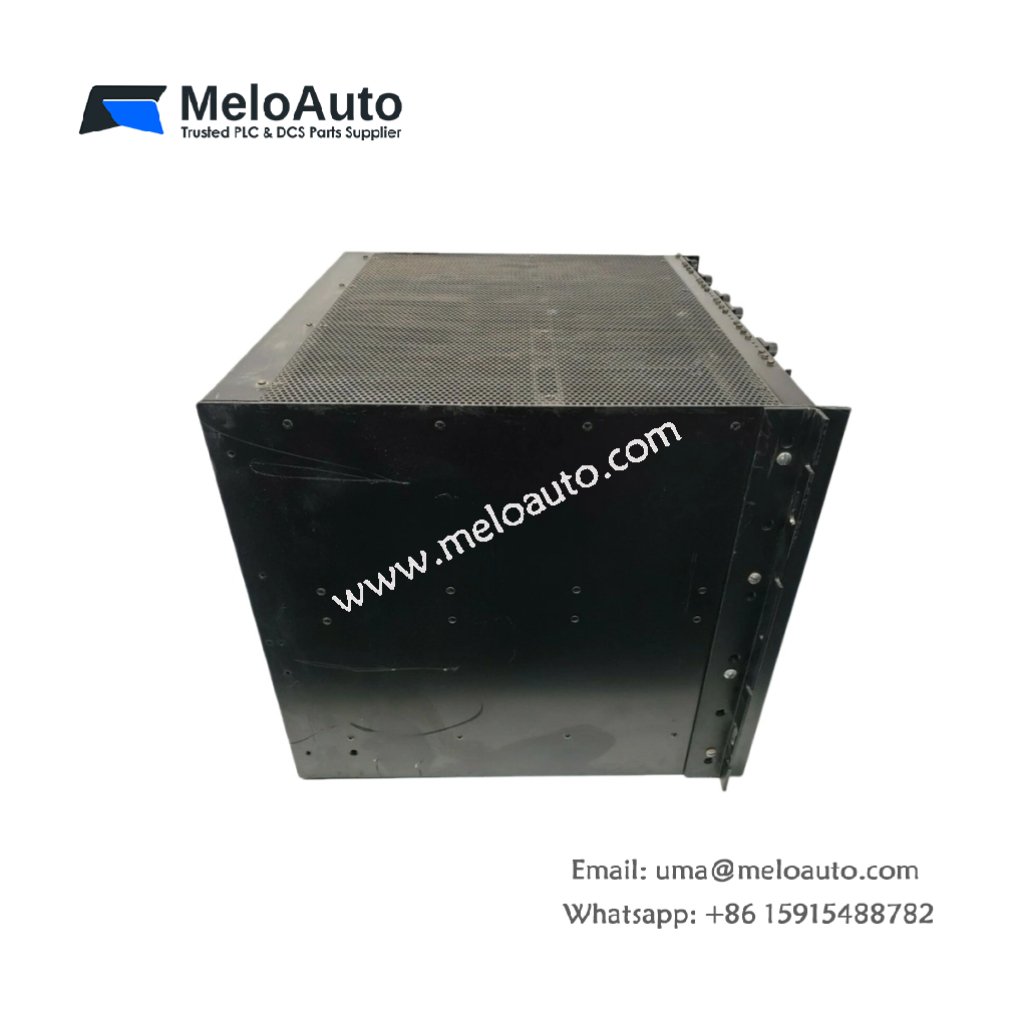

Triconex 7400028-100 Expansion Chassis (15-Slot)

Overview

The Triconex 7400028-100 Expansion Chassis is a high-performance, robust solution designed to expand the capacity of Triconex safety systems. This 15-slot expansion chassis supports the integration of various modules, enabling scalability and flexibility in industrial applications. It operates efficiently in demanding environments with a wide input voltage range of 24-120 VDC and is capable of handling 2-10 amps of current.

This Expansion Chassis (Model 8101) is ideal for process control, safety monitoring, and emergency shutdown systems, offering seamless connectivity with Triconex controllers.

Key Features

• 15-Slot Capacity: This chassis supports up to 15 slots, enabling the integration of additional modules for expanded I/O points and enhanced system functionality.
• Wide Voltage Range: The chassis operates with 24-120 VDC input voltage, providing flexibility for different applications and configurations.
• Current Range: It supports a wide current range of 2-10 amps, accommodating varying power needs.
• Temperature Tolerance: The chassis operates efficiently in temperatures up to 60°C, ensuring reliability in challenging industrial environments.
• Model 8101: Specifically designed for use with Triconex safety systems, it enhances the capabilities of existing setups.

Technical Specifications

Applications

• Process Control: Ideal for expanding the I/O capacity in industrial control systems, especially in large-scale process plants.
• Safety Monitoring: Enhances Triconex safety systems by providing additional slots for safety modules in mission-critical environments.
• Emergency Shutdown Systems: The chassis is perfect for safety systems that require real-time monitoring and control to protect personnel and equipment.

Benefits

• Scalability: The 15-slot capacity allows easy expansion to meet growing process control demands.
• Durability: Built to withstand harsh industrial environments with a wide temperature range and robust design.
• Flexibility: The wide voltage and current range ensure compatibility with various industrial systems and applications.
• Efficient Integration: Seamlessly integrates with Triconex systems, providing reliable performance and quick setup.
