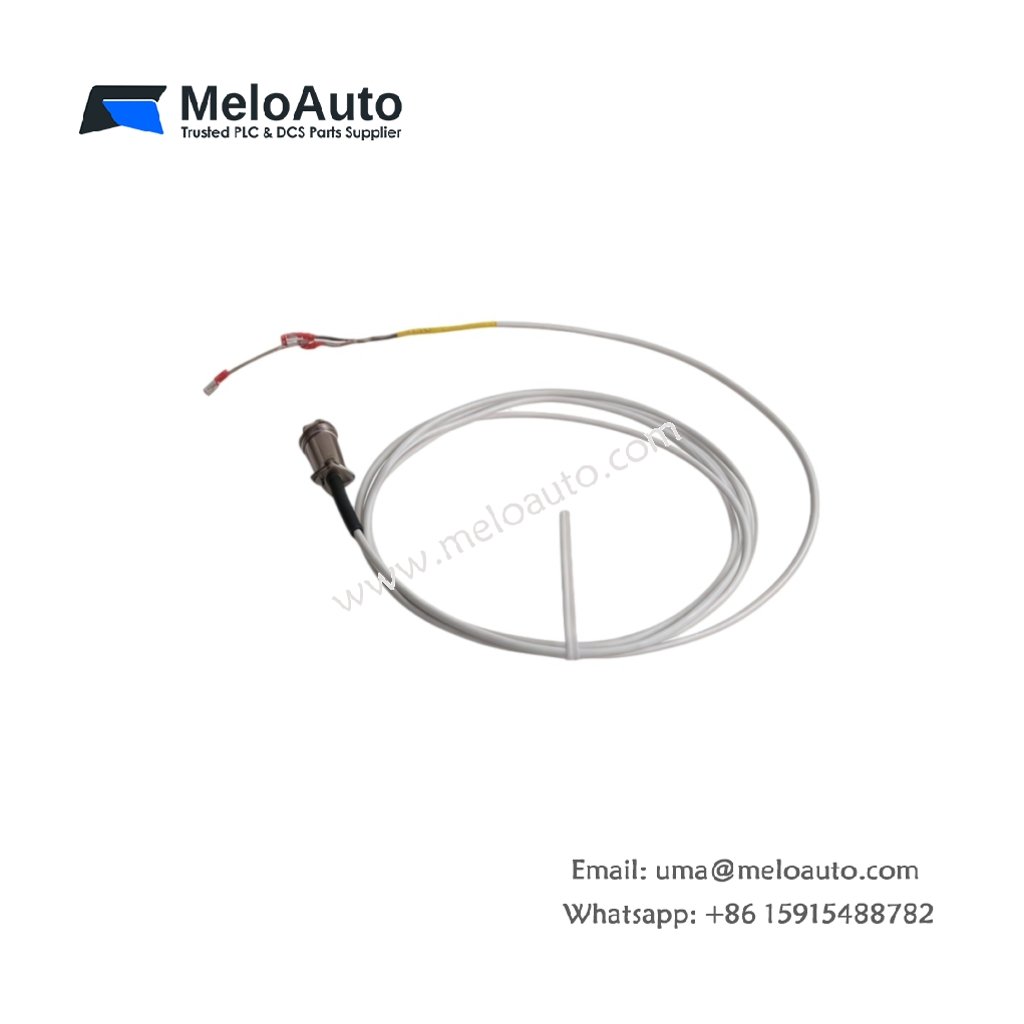

Bently Nevada 16925-10 Standard Interconnect Cable

Versatile Signal Interconnect for Monitoring Racks

The Bently Nevada 16925-10 standard interconnect cable facilitates reliable signal routing between monitoring system modules and sensors. This 10-foot cable employs high-quality coaxial construction with braided copper shielding for superior noise rejection. Its durable PVC jacket provides resistance against oils, solvents, and mechanical wear in control cabinet environments. Both ends terminate with standard BNC male connectors for straightforward plug-and-play installation. This cable ensures consistent transmission of vibration and displacement signals in critical machinery protection systems.

Transmission Characteristics and Electrical Integrity

This interconnect cable exhibits a characteristic impedance of 50 Ω and a capacitance of 160 pF per meter for optimal signal fidelity. The conductor resistance remains below 0.5 Ω per meter, ensuring minimal signal loss over the 10-foot distance. Its copper braid shielding effectively attenuates electromagnetic interference from nearby power sources and variable frequency drives. The cable operates reliably across temperatures from -40°C to +105°C, suiting typical industrial control room conditions. These parameters guarantee clean signal transfer for accurate condition monitoring data.

Detailed Technical Specifications

Connector Design and System Compatibility

This cable provides BNC male connectors at each end with a bayonet locking mechanism for secure, vibration-resistant mating. The connectors feature gold-plated center pins that resist corrosion and maintain low contact resistance over time. This interconnect works seamlessly with Bently Nevada 3500 racks, 3300 XL Proximitors, and associated monitoring hardware. The cable stores negligible internal energy, presenting no safety concerns for control room installations. Users can deploy this cable for both static gap voltage and dynamic vibration signal routing applications.

Installation Practices and Service Life

Installing this interconnect cable requires routing it within cable trays or conduits while observing a minimum bend radius of 25 mm. The BNC connectors tighten manually with a slight rotation, requiring no special tools for secure attachment. Regular visual inspections of the cable jacket and connector integrity will prevent signal degradation. Operators should avoid sharp bends, kinks, and excessive pulling forces during installation to extend cable life. This component requires no periodic maintenance, though annual connector cleaning and inspection remain prudent.
