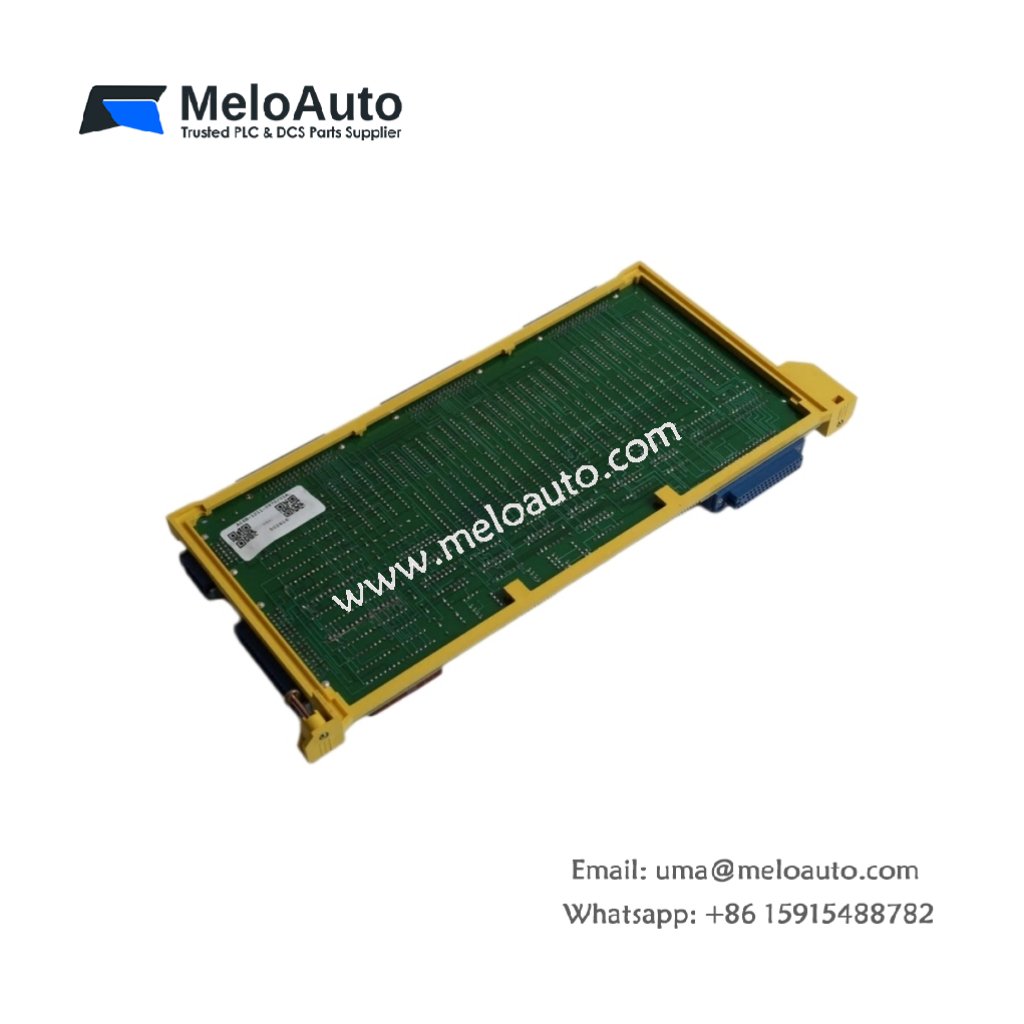

GE A16B-1211-0970/01A | Fanuc Circuit Board CNC Control

The A16B-1211-0970/01A serves as a control board for Fanuc CNC systems. This printed circuit board processes signals between various machine components. It mounts inside the main CNC control cabinet securely. Consequently, you get reliable operation for milling, turning, or laser cutting machines.

You can use this board as a replacement or upgrade for existing units. The A16B-1211-0970/01A integrates with Fanuc Series 0, 15, or 16 controls. It handles axis control, spindle management, and I/O communication tasks. Therefore, this board plays a central role in machine tool automation.

Component Layout and Board Architecture

The board features multiple integrated circuits and surface-mount components. The A16B-1211-0970/01A includes a main processor chip and memory modules. Several connectors provide interfaces for ribbon cables and external wiring. A battery holder on the board retains parameters during power loss.

Gold-plated edge connectors ensure reliable contact with the backplane. The A16B-1211-0970/01A uses multilayer PCB construction for signal integrity. Test points allow technicians to verify voltage levels during troubleshooting. Below is a complete breakdown of its technical characteristics.

Specification	Detail
Product Type	CNC Control Circuit Board
Compatible Systems	Fanuc Series 0, 15, 16 (GE Fanuc)
Board Construction	Multilayer PCB with gold edge connectors
Operating Voltage	24V DC (Via backplane)
Onboard Memory	RAM and EPROM (Configuration dependent)
Memory Backup	Lithium battery (CR2032 or similar)
Connector Types	2x 20-pin, 2x 34-pin, 1x 50-pin
Number of ICs	12 (Approximate, including main CPU)
Dimensions (L x W)	250 mm x 200 mm (Approx.)
Weight	0.35 kg (350 grams)
Operating Temperature	0°C to 55°C
Energy Storage	Lithium battery (For parameter retention)

Interface Connectors and Signal Routing

Multiple ribbon cable headers occupy positions along the board edges. The A16B-1211-0970/01A labels each connector for specific functions clearly. A 50-pin connector typically handles servo axis feedback signals. Two 20-pin headers manage digital I/O and operator panel communications.

You must install a battery to preserve CNC parameters during power-off. The A16B-1211-0970/01A uses a standard CR2032 lithium coin cell. Red and green LEDs indicate board status and fault conditions. Therefore, troubleshooting follows standard Fanuc diagnostic procedures.

Operational Benefits for CNC Systems

This circuit board provides precise control for multi-axis machine tools. The A16B-1211-0970/01A processes feedback from encoders and scales accurately. It generates smooth velocity commands for servo amplifiers. Engineers value this board for maintaining legacy Fanuc-controlled machining centers.
