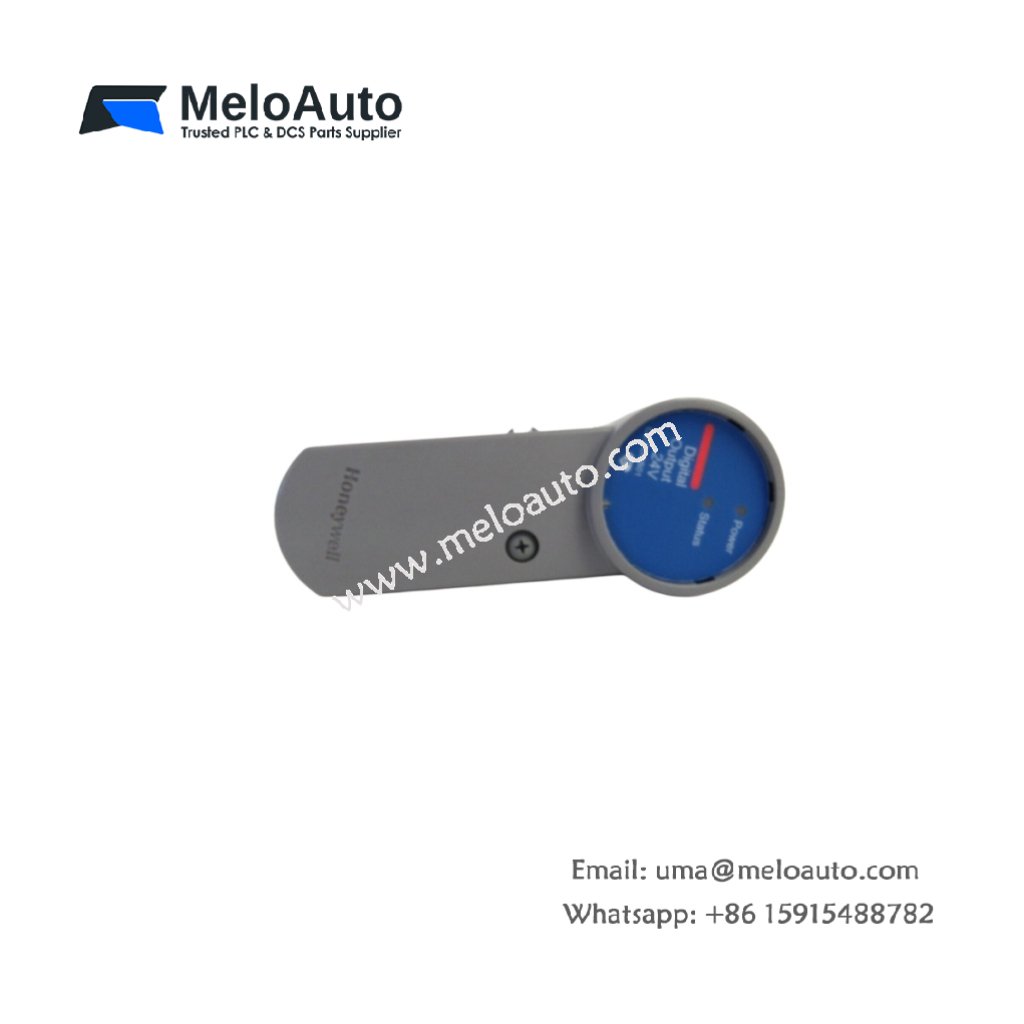

Honeywell CC-PDOB01 Output Module

High-Capacity Discrete Actuation for Experion PKS

The Honeywell CC-PDOB01 51405043-175 functions as a high-capacity digital output module within the Experion PKS distributed control system. This module provides 16 discrete output channels, each delivering 24 V DC at 2.0 A for driving heavy field loads. Its rugged housing measures 130 mm in height, 45 mm in width, and 120 mm in depth, fitting standard Series C termination assemblies. The total weight reaches approximately 0.5 kg, offering durability for demanding industrial environments.

Each output channel includes short-circuit protection and overcurrent limiting for reliable operation. The following table details the complete technical specifications for this digital output solution:

Parameter	Specification
Product Brand	Honeywell
Product Model	CC-PDOB01 51405043-175
Product Category	Digital Output Module
Platform Compatibility	Experion PKS (Series C)
Number of Channels	16
Output Voltage	24 V DC
Output Current per Channel	2.0 A (continuous)
Total Output Current	32 A (maximum)
Inrush Current Rating	10 A (for 10 ms)
Dimensions (H x W x D)	130 mm x 45 mm x 120 mm
Weight	0.5 kg
Supply Voltage	24 V DC
Power Consumption	8.5 W typical
Short-Circuit Protection	Yes (electronic)
Overcurrent Protection	Yes (electronic)
Operating Temperature	0°C to +60°C
Storage Temperature	-40°C to +85°C
Isolation Voltage	1500 V AC (channel-to-backplane)

Channel Architecture and Load Driving Capability

The 16 output channels deliver high current for directly operating contactors and pneumatic valves. Each channel handles continuous loads up to 2.0 A, with a total module capacity of 32 A. This capacity supports demanding applications such as large solenoid banks and motor starters. Engineers can therefore eliminate external interposing relays and reduce cabinet space.

Protection Mechanisms and Diagnostic Feedback

Electronic short-circuit protection immediately disables affected channels during fault conditions. Overcurrent limiting safeguards the module from sustained overload events. LED indicators provide real-time status for each individual output channel. Maintenance teams can therefore identify and address issues quickly.

System Integration and Online Replacement

The CC-PDOB01 51405043-175 interfaces with the Experion PKS controller through the Series C backplane. The module supports online replacement without interrupting the control system. This feature enables maintenance while production continues uninterrupted. System integrators can therefore maintain high system availability.
