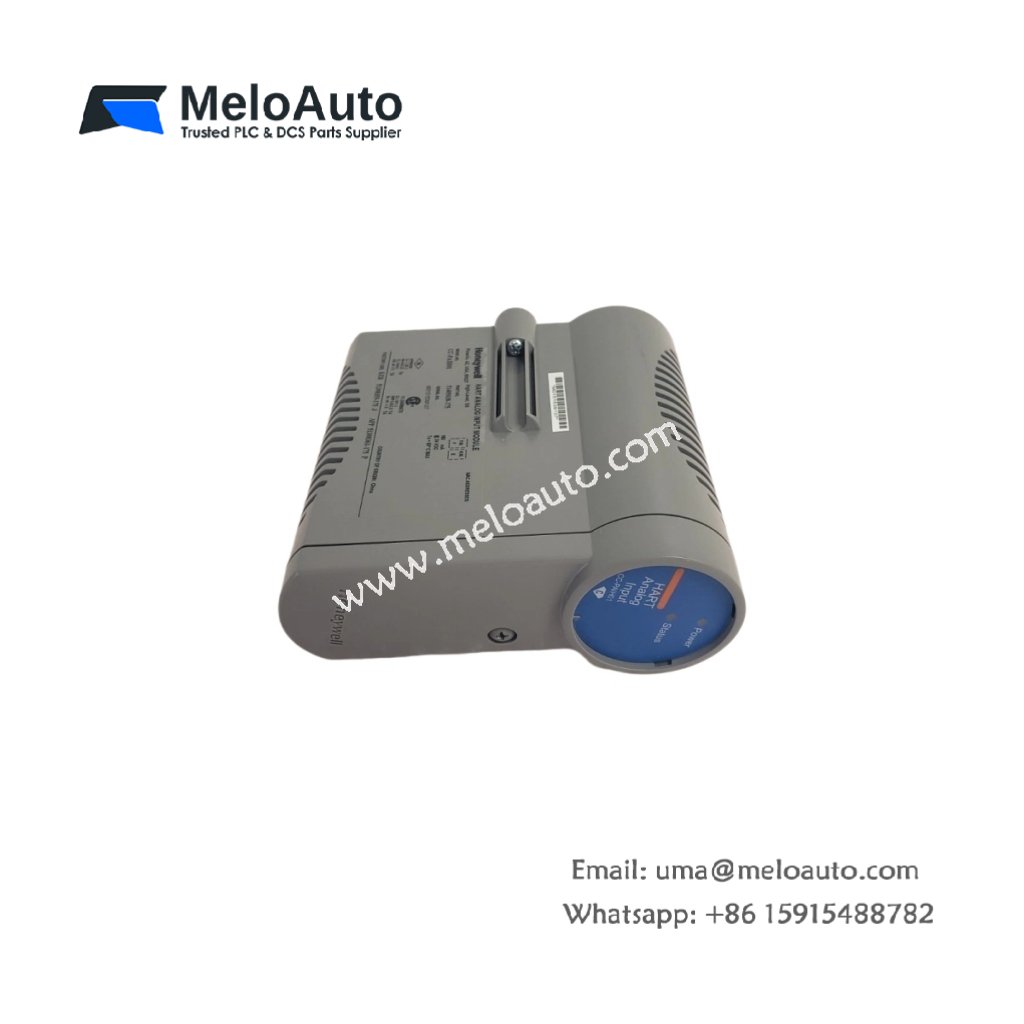

Honeywell CC-PAIH01 Analog Input Module

High-Performance HART-Enabled Signal Acquisition for Experion PKS

The Honeywell CC-PAIH01 functions as a high-performance analog input module with integrated HART communication for the Experion PKS distributed control system. This module provides 8 analog input channels, each supporting 4-20 mA signals with simultaneous HART digital data retrieval. Its compact housing measures 130 mm in height, 45 mm in width, and 120 mm in depth, fitting standard Series C termination assemblies seamlessly. The total weight reaches approximately 0.4 kg, offering a robust and space-efficient solution for process measurement.

Each channel delivers 16-bit resolution with integrated loop power for 2-wire transmitters. The following table details the complete technical specifications for this HART analog input module:

HART Communication and Smart Device Integration

The CC-PAIH01 simultaneously reads primary process variables and HART digital data from field instruments. This capability enables access to device diagnostics, calibration status, and secondary variables. The module communicates with the control system through the Series C backplane. Engineers can therefore integrate smart instrumentation seamlessly into the Experion PKS environment.

Analog Measurement Performance and Accuracy

Each channel provides 16-bit resolution with ±0.05% full-scale accuracy for precise measurement. The integrated 24 V loop power supply eliminates the need for external power sources. This feature simplifies field wiring and reduces installation costs. Users benefit from reliable and accurate process data.

System Integration and Online Configuration

The module interfaces directly with the Experion PKS controller for straightforward integration. Configuration through the control builder simplifies channel setup and parameter assignment. The module also supports online replacement without system interruption. Process engineers can therefore maintain production while performing hardware maintenance.
