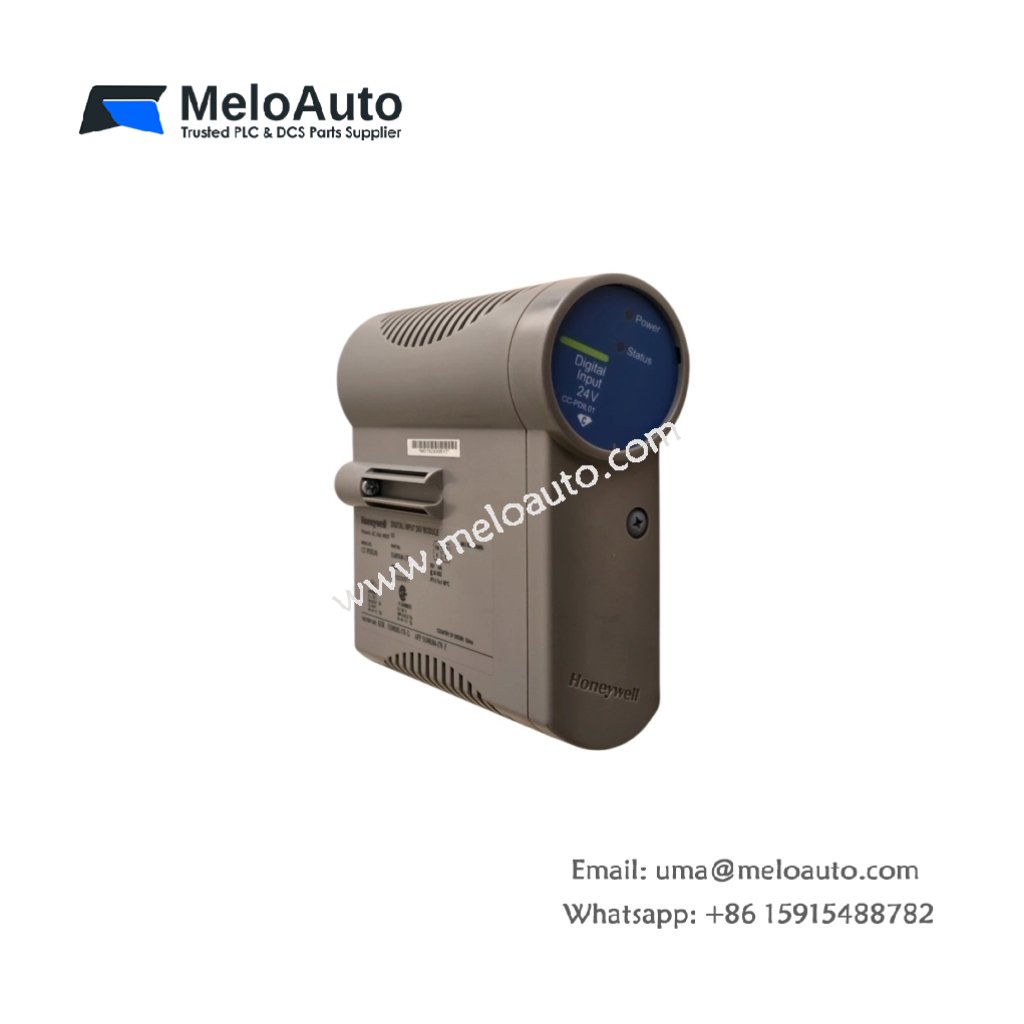

Honeywell CC-PDIL01 51405040-176 Digital Input Module

High-Density Discrete Signal Acquisition for Experion PKS

The Honeywell CC-PDIL01 51405040-176 functions as a high-density digital input module within the Experion PKS distributed control system. This module provides 32 discrete input channels, each accepting 24 V DC signals from field devices. Its robust housing measures 130 mm in height, 45 mm in width, and 120 mm in depth, fitting standard Series C termination assemblies. The total weight reaches approximately 0.45 kg, offering durability without adding unnecessary bulk to control cabinets.

Each channel includes built-in filtering and transient protection for reliable signal detection. The following table details the complete technical specifications for this digital input solution:

Channel Architecture and Input Configurability

The 32 discrete channels operate independently, accommodating various field devices and sensors. Each channel accepts 24 V DC signals with configurable sink or source wiring options. This flexibility eliminates the need for separate modules for different wiring conventions. Engineers can therefore standardize on a single module for diverse applications.

Signal Filtering and Noise Immunity

Built-in filtering suppresses electrical noise from contact bounce and industrial interference. The selectable 3 ms filter time balances responsiveness with noise immunity. This feature ensures reliable detection even in electromagnetically noisy environments. Users benefit from stable input signals for precise control decisions.

System Integration and Diagnostic Features

The CC-PDIL01 51405040-176 interfaces with the Experion PKS controller through the Series C backplane. LED indicators provide immediate visual status for each channel and module health. The system also reports diagnostic information for predictive maintenance planning. Process engineers can therefore identify potential issues before they affect production.
