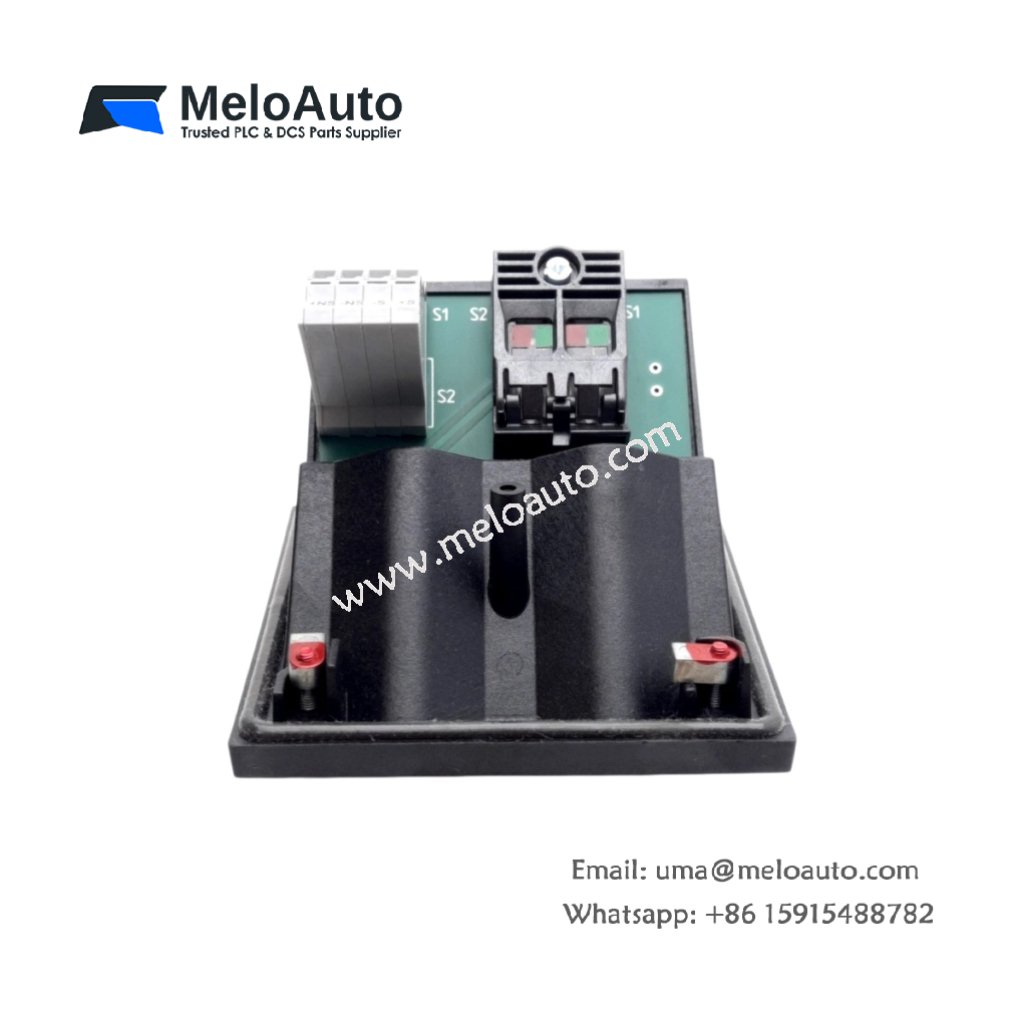

Siemens 3RK1911-1AF22 Main Breaker Panel

Product Overview

The Siemens 3RK1911-1AF22 is a hybrid fieldbus connection component from the ECOFAST product line, designed to merge bus and power supply connections in a single interface. This module transitions from IP20 to IP65 environments, enabling the connection of control and power cabling. Its robust design supports the use of copper (CU) contacts, ensuring reliable conductivity. The 2-channel configuration allows the connection of two sets of bus and power lines, making the unit suitable for linking devices such as sensors and actuators. The “infeed” designation indicates that the Siemens 3RK1911-1AF22 can serve as the main connection point for power distribution within a section of the network.

Technical Specifications

Key Features

Space-Saving Hybrid Technology – This module merges bus and power supply lines into a single, robust cable. This simplifies the cabling infrastructure and reduces the space required for cable trays and panels.

Sealed Industrial Design – The module transitions from IP20 to IP65 protection ratings, featuring a sealed design that is resistant to dust and water jets, making it suitable for use in harsh industrial environments.

2-Channel Configuration – The two-channel configuration allows the module to carry both bus data and power to two separate devices, supporting daisy-chained network topologies.

ECOFAST System Compatibility – The Siemens 3RK1911-1AF22 is part of the SIMATIC ET 200pro ECOFAST system , ensuring seamless integration with Siemens’ distributed I/O and motor control solutions.

Applications

This hybrid connector is ideal for use in distributed automation systems for material handling, packaging machinery, and assembly lines. It is particularly effective in connecting sensors, actuators, and motor starters to the control network via a single cable that carries both power and communication signals.
