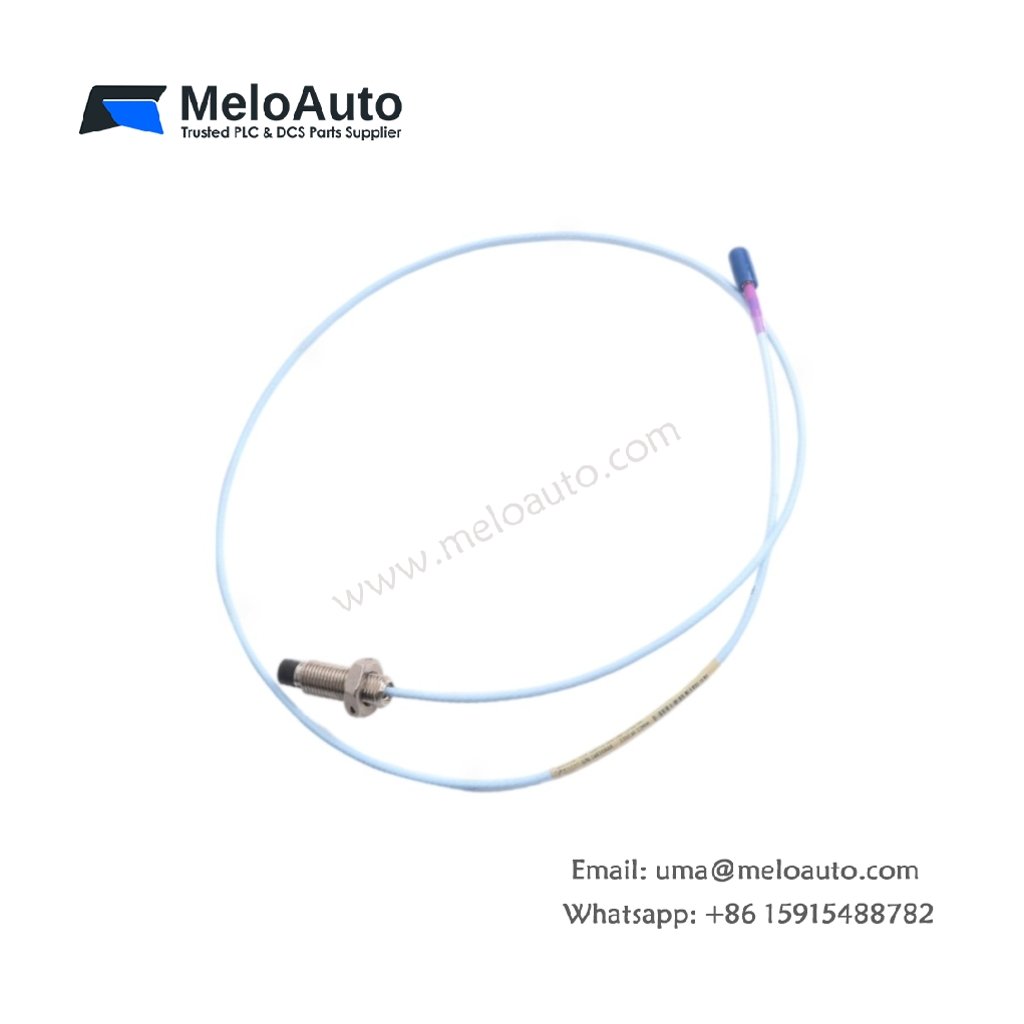

Bently Nevada 330703-000-050-10-02-00

Technical Specifications That Matter

This 330703-000-050-10-02-00 belongs to the 3300 XL 11 mm series, delivering a 3.94 V/mm (100 mV/mil) output for non-contact vibration and displacement measurement. The 11 mm tip provides an extended linear range compared to standard 8 mm probes. Consequently, engineers choose it for axial thrust position, ramp differential expansion, and rod drop monitoring.

Parameter	Specification
Model	330703 (M14 x 1.5 thread, unarmored)
Unthreaded Length	0 mm
Overall Case Length	50 mm
Total Length	1.0 m (3.3 ft)
Connector	Miniature coaxial ClickLoc
Scale Factor	3.94 V/mm (100 mV/mil)
Linear Range	4.0 mm (160 mils) typical
Probe Tip Material	Polyphenylene sulfide (PPS)
Case Material	AISI 304 stainless steel
Operating Temperature	-52°C to +177°C
Weight	~0.07 kg (probe only)

Interface and Physical Design

The 330703-000-050-10-02-00 employs a standard miniature coaxial ClickLoc connector. This connector locks securely into place, which prevents loosening under machine vibration. Furthermore, the patented TipLoc molding bonds the PPS tip to the stainless steel body. The CableLoc design delivers 330 N of pull strength at the cable-tip junction.

System Integration Requirements

This probe functions as one part of a complete 3300 XL 11 mm transducer system. The system requires a matching extension cable and Proximitor sensor. When upgrading from older 7200-series components, every part must be replaced together. Additionally, 3500 monitoring systems need updated configuration software to recognize the 11 mm system.
